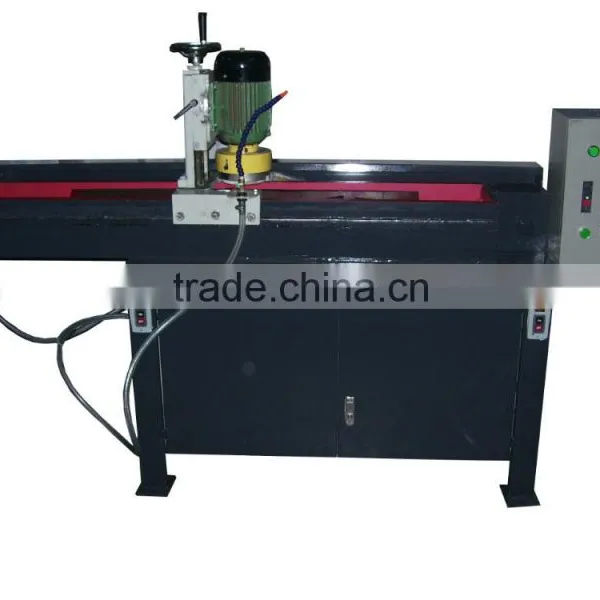

Manufacturer 1200mm plastic crusher blade sharpener universal cutter grinder machine

Manufacturer 1200mm plastic crusher blade sharpener universal cutter grinder machine

Body length:1500mm

Max stroke:1250mm

Effective grinding length:1200mm

Grinding blade adjustable angle:0-90°

Water pump power:40W

Main engine power:1.1KW

Feeding motor power:60W

Grinding wheel dimension:30x50x150mm

Rev:2840r/min

Voltage:380V/50HZ

unique feature:grinding head up down left right be adjustable

Special Features:

1.Especially used for grinding straight edge knives,such as crusher knives,cutting machine
cutters and etc,also can be used to open oblique of high-speed steel knife.

2.Machine structure is simple,easy to adjust,high precision,able to play its unique advantages,
and it's an ideal grinding equipment for plastic manufacturers.

3.Grinder motor angle adjustment:according to the angle of the knife to pendulum grinder
motor,after a good angle adjustment,tighten the fixed motor plate screws.

4.Knife installation:put knives on both sides of the two eccentric position,rotate two eccentric
position,and adjust the knife parallel with the wheel and then lock knives.
5.Can be customized as customer requests.

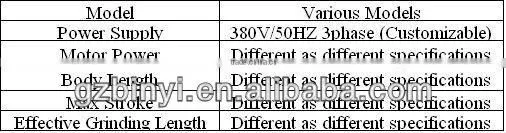

Specification:

Design Considerations:

A.In order to have a better understanding of your needs,we need client to provide below
information about their product:

1)What's the width and length of your knives?

2)What's the power supply voltage in your requests?

Please advise so we can figure out if our machines are applicable and which models

will meeting with your requirement.

B.We can design,customize and do our utmost to meet customers' demands.

About us:

1.We are a leading manufacturer specializes in designing and manufacturing all kinds of
knives grinding machine with the experience of more than 30 years.

2.Our products are widely recognized and trusted by domestic and foreign customers
and can meet continuously developing economic and social needs.

3.All inquires are sincerely welcome.Should you express any interest and wish to find
out more please do not hesitate to contact us.
