Specifications
1 chocolate coating machine2 Dia.of sugar coating pot:300-1250
3Use to tablet, pill, nuts, fluid
4 capacity:90-150kg/ h

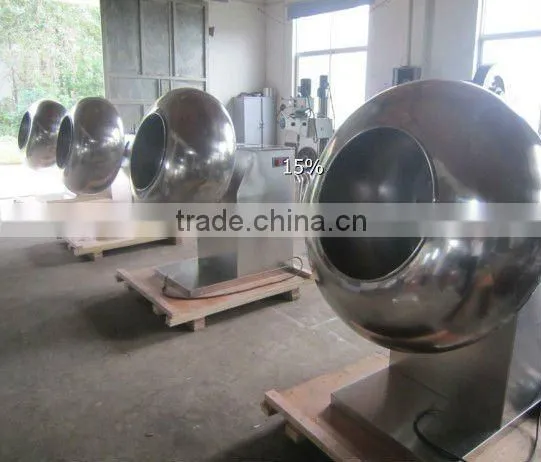

HY Series nuts coating machine
Application:
This machine used to sugarcoating the tablets and pills for pharmaceutical and food industry. It is also used for rolling and heating beans and edible nuts or seeds.
Summary:
As its feature, the sugarcoating round pot is elevated, the heater such as gas electrical heater can placed directly under the pot. A separated blower with electrical heater is provides with the machine. The pipe of the blower stretches into the pot for heating of cooling purpose. The thermal capacity can be adjusted.
Main Data:
TYPEITEM |
HY300 |
HY400 |
HY300A |
HY400A |
Diameter |
300 mm |
400 mm |
300 mm |
400 mm |
Production Capacity |
2 kg |
5 kg |
2 kg |
5 kg |
Scope |
15°45° |
|||
Rotation Speed r/min |
n1=42,n1=46 |
5-50 |
||
Main Motor0.55kw 380v |
0.55kw,380v |
0.55kw,380v |
||
Heat |
600w |
600w |
||
Fan |
35w,220v |
|||
Overall Size |
440*550*765mm |
485*585*800mm |
750*600*800mm |
|
Net Weight (kg) |
85 |
90 |
155 |
|
| Model | HY800 | HY1000 | HY1250 |
| Dia of the sugar coating pot(mm) | 800 | 1000 | 1250 |
| Speed of the sugar coating pot(rpm) | 32 | 28 | 30 |
| Power of the main motor(kW) | 1.1 | 1.1 | 2.2 |
| Working capacity(kg/time) | 30-50 | 50-70 | 90-150 |
| Dimensions(L*W*H)(mm) | 925*900*1500 | 1100*1100*1600 | 1100*1000*1600 |
| Weight(kg) | 230 | 250 | 300 |
