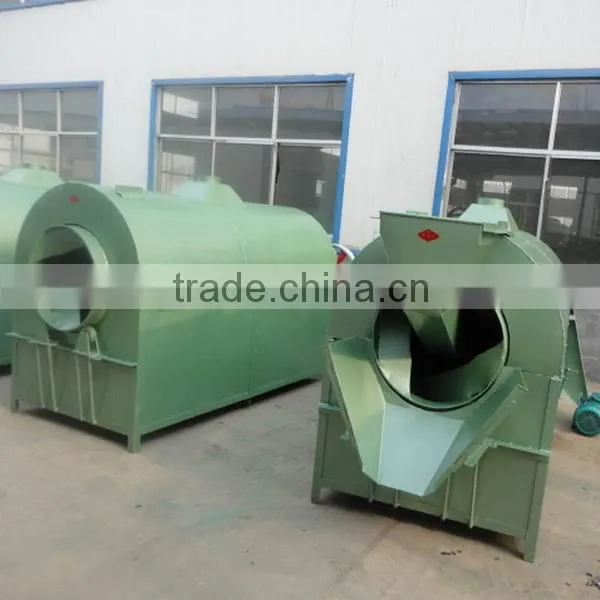

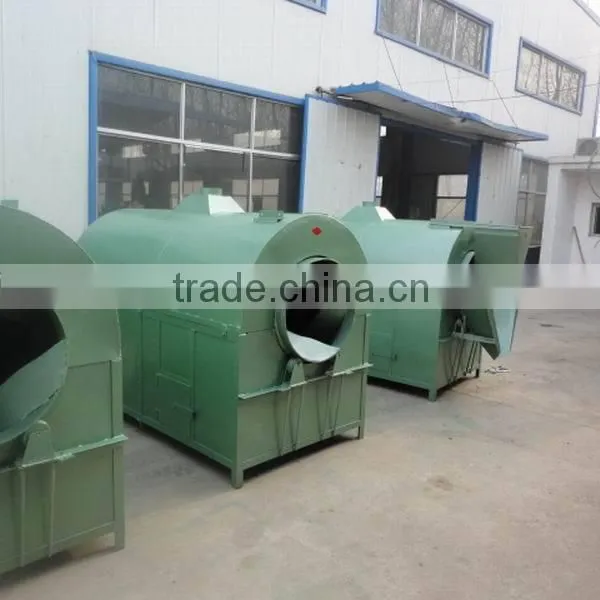

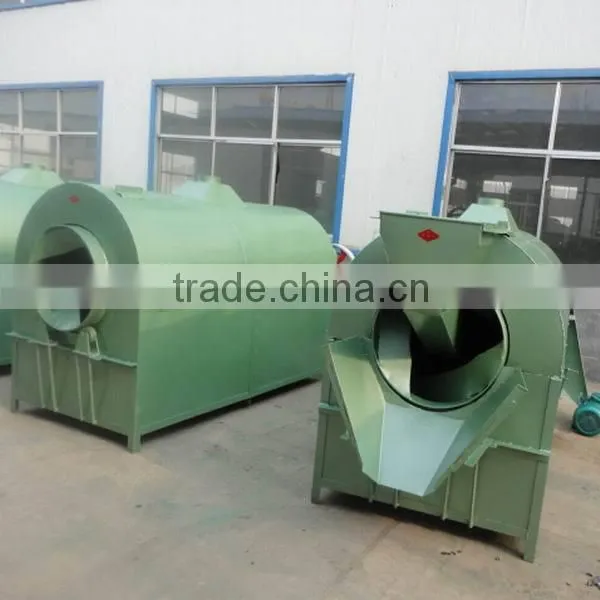

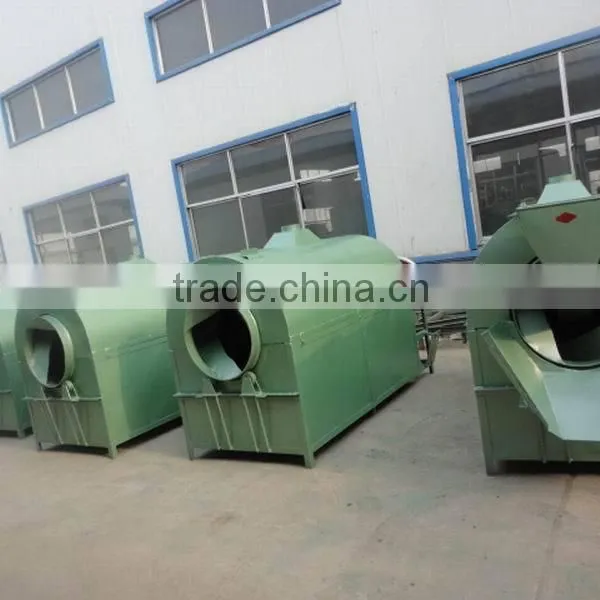

Help CenterWidely Used 6GT-1500 Big Roll Roaster
Related Products
-
Hot Selling 6GT-400/700/1500/2500 Roaster Machine For Oil SeedsUS$ 480 - 3,800MOQ: 1 Set -
Widely Used Hot Selling 6GT-400/700/1500/2500 Roaster/Dryer MachineNegotiableMOQ: 1 Set
-
Widely Used Hot Selling 6GT-400/700/1500/2500 Roaster Machine For Oil SeedsNegotiableMOQ: 1 Set
-
2015 Facotry Price Professional Big Double Roaster(1200D)US$ 1,200 - 1,500MOQ: 1 Set
-
Sawdust Rotary Drum Dryer With 1t/hUS$ 5,000 - 15,000MOQ: 1 Set
Specifications
1.Widely Used 6GT-1500 Big Roll Roaster2.Capacity: 500-1000kg/h
3.Power: 2.2kw-3kw
4.CE/ISO9001
Introduction
Suitable for roasting/drying different oil-materials, such as rapeseed, peanut, soybean, sesame seeds, cottonseeds, etc.
6GT Series big roll roaster is a new roasting machine for food and oil plant. It is developed by our experience of oil machine manufacture for many years based on home and abroad advanced technology. It changes the single outlet into double outlet, increase the input diameter and achieve the fast input and fast output. It has these main features: reasonable structure, temperature meter, easy operation and high capacity. Because the roaster is closed, so it can control the heat to go out and achieve the steaming and roasting function, speed up the roasting seeds. The other advantage is continuous turning work, materials roasted turned constantly, make its surface uniformly touch with pan area and avoid that flat pan roasting seeds not uniform and flammable and scorched, so it develops the oil output and oil quality.
Structure and principle
The machine is mainly made up of machine frame, hopper, cylinder, block fire cover etc, the motor drives the gear shaft by the V-belt, the gear on the gear shaft drives the big gear on the cylinder to run; then the cylinder rotates continuously and uniformly, the materials are fed into the cylinder to be roasted.
Main data
Model: 6GT-1500
Dimension (mm):2300*1190*1470 mm
Handling capacity:500-1000kg/h for oil seeds
Power: 2.2-3KW
Weight: 1080KG
Electricity consumption:40KW/H
