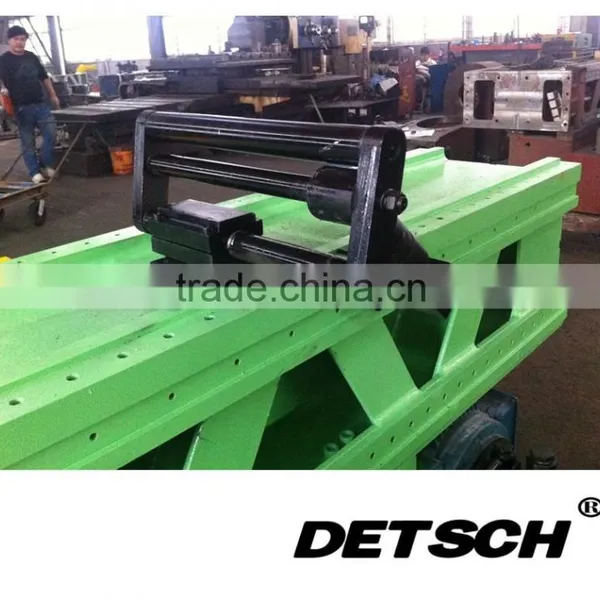

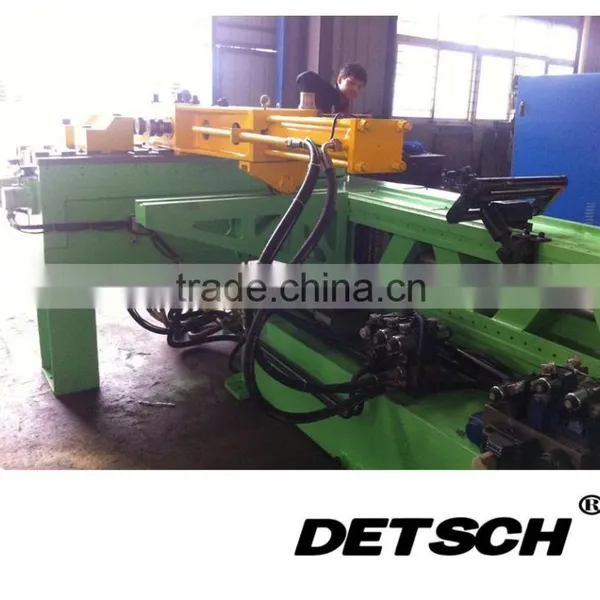

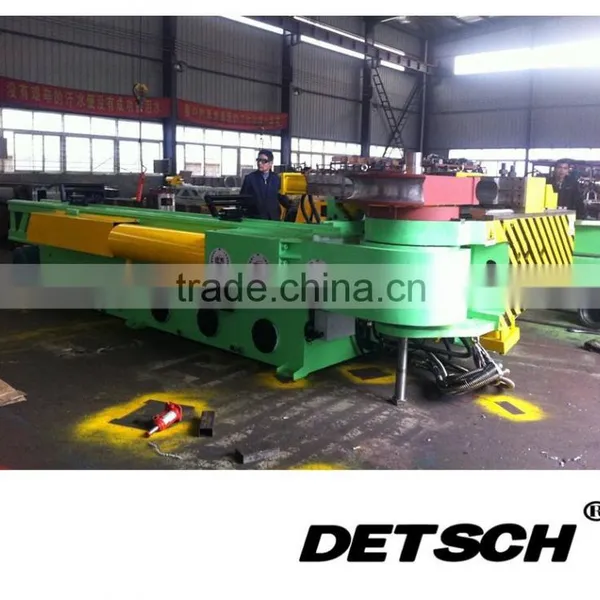

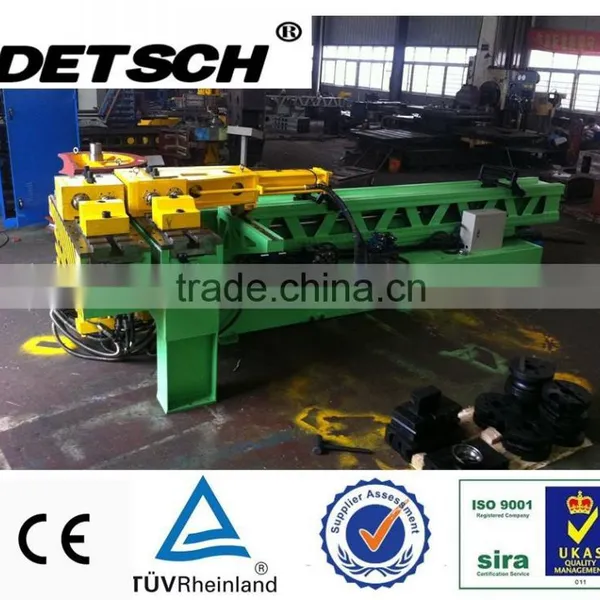

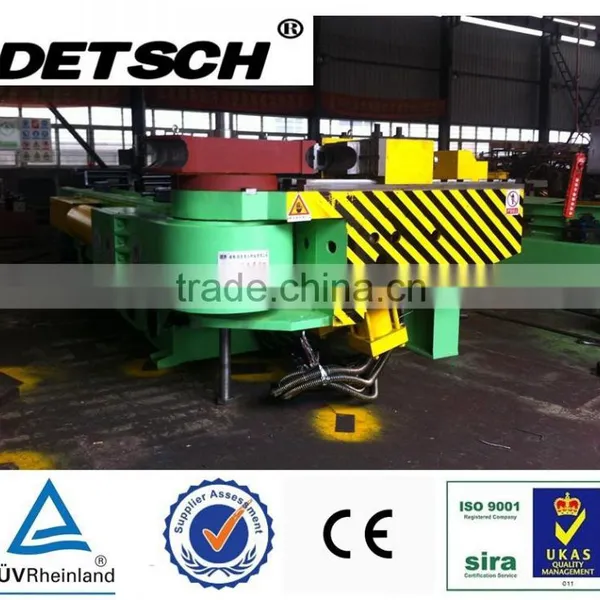

W27YPC-133 Reinforcement steel bar and rod bending machine
- 20 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Anhui, China | Brand Name: | De xi |
Model Number: | W27YPC-133 | Machine Type: | Pipe and Tube Bending Machine | Raw Material: | Steel Bar |
Material / Metal Processed: | Other, stainless steel, aluminium,copper,carbon steel | Power: | Hydraulic | Automation: | Other, semi-automatic |
Extra Services: | Other | Certification: | ISO 9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
W27YPC-133 Reinforcement steel bar and rod bending machine is hydraulic driven; high bend accuracy; The pipe and tube bending machine bend pipes and tubes no wrinkles, no cracks; low noise, easy operation; German technology, favorable price. It can also bend square tubes or pipes,flat bar,U or channel steel,H steel, round bar,angle bar steel, etc...
Fabricated from superior quality raw materials, these benders are extensively used in array of industries. Made in our latest technology equipped production unit by team of dedicated technicians, these benders are known for its specific design, durability and quality performance. Several quality tests are done to ensure world standard quality of these benders.We are amongst the renowned manufacturer, exporter and supplier of a diverse range of Pipe Bending Machine. Our products are precisely fabricated utilizing non-ferrous mild steel, stainless steel materials. We are supported by experienced professionals, who assist us to deliver the entire product range in well defined time frame.
1. Fabricated from finest quality raw material, this range is very durable and features highly compact functions and robust designs.This machine is widely used for bending steel tubes & pipes& any profile. Machine frame can be extended according to customer's requirements.
2. PLC operation system, 7" touch screen. Bend data shown clearly; two kinds of operate modes:semi-auto & auto; easy and convenient operation.
3. High bend accuracy, no wrinkles,no cracks,low ovality,low thinning rate. All bend accuracy is higher than national accuracy standard.
4.Heavy duty working function, esp. for thick wall pipes; capable of bending pipes with small bend radius(less than 3D) by using special structure(awarded national patent).

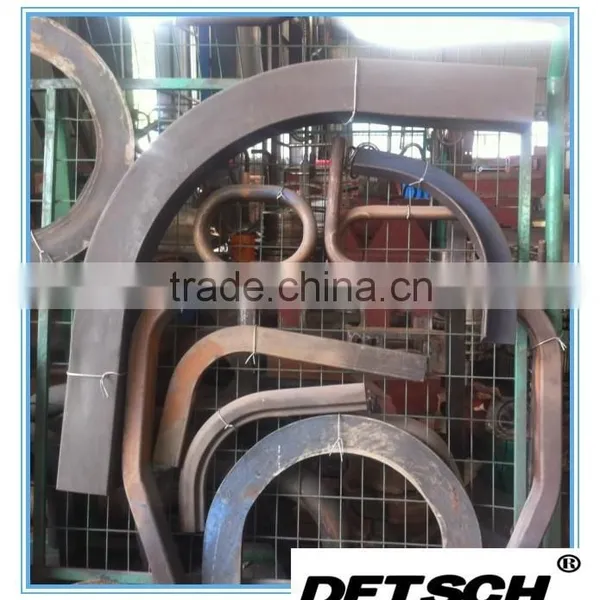

5.Capable of bending pipes,tubes and all kinds of profiles,eg. Angle bar,I beam,H beam, U beam, C beam, flat bar, square pipe, round bar, etc. by changing the bend die.
6.High bend accuracy, no wrinkles,no cracks,low ovality,low thinning rate. All bend accuracy is higher than national accuracy standard.
NO. | Parameter Name | Parameter | Unit | Remarks | |
1 | Max torque | 185000 | N.m |
| |
2 | Max bend pipe od*wt | Φ133×8 | mm |
| |
3 | Min bend pipe od | Φ12 | mm | Special dies can bend smaller outside diameter pipe | |
4 | Min bend radius | R55 | mm | Special clamping dies can bend smaller outside diameter pipe | |
5 | Max bend radius | R550 | mm |
| |
6 | Max bend angle | 195 | ° | ||
7 | Bend speed | 1.25 | r/min | Double-cylinder driving, reset fast, domestic initiative | |
8 | Gyration speed | 3.27 | r/min |
| |
9 | Numbers of bend angles | 16 | --- | PLC provided by DELTA | |
10 | Electric motor | Model | Y160L-4 | --- |
|
Power | 22 | KW | |||
Rotating speed | 1450 | r/min | |||
11 | Oil pressure | Size | YB-FQ50 |
|
|
Oil pressure | 21 | MPa |
| ||
Flowing speed | 55 | L /min | |||
Working pressure | 16 | MPa | |||
12 | Size | 6000*2200*1600 | mm |
| |
13 | Weight | 7.8 | T |
