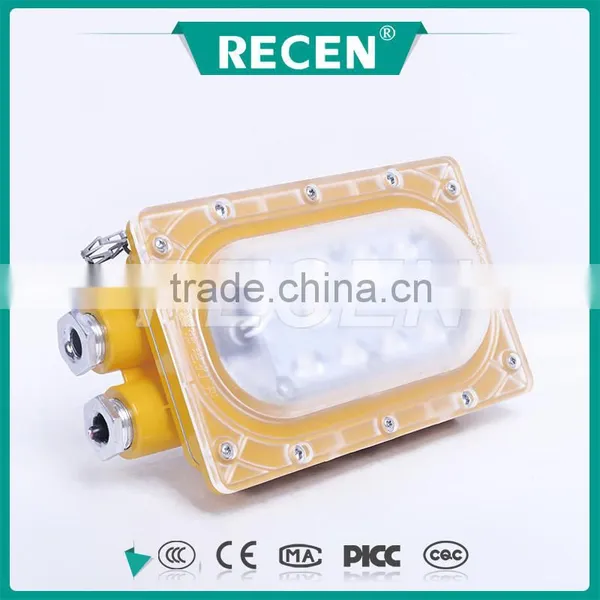

China manufacture Warranty 5 year new product IP66 30w super high lumen led explosion-proof high bay lighting RFBL164
Application:
Suitable for explosive gas field petroleum, petrochemical plant ,corridors and indoor and outdoor lighting and other needs Explosive place.
Features and benefits
1.Independent cavity design of power and electrical cavity , good heat dissipation performance ,make sure the light stable and reliable to use for long times.
2.Adopt PC material for transparent part, with good impact resistance performance.
3.Use electric ballast for drive power supply, power factor bigger than 0.95, wide voltage
4.Transparent lens adopt good optical design, to effectively control anti-glare, downy, reduce optical fatigue of worker.
5.Small volume, light weight, convenient for installation and maintenance-free
6. Many installation method for select, ceiling type, hanging style,wall style ,satisfied for different demand
7. selected OSRAM for light source, inventronics drive
8. Product warranty: 5 years
Specification of led explosion-proof high bay lighting
No. |
Parameter |
unit |
value |
|
1 |
Rated voltage |
V |
220 |
|
2 |
Rated power |
W |
30 |
|
3 |
Luminous Flux |
lm |
2800 |
|
4 |
Service of life |
h |
50000 |
|
5 |
Protection grade |
IP66 |
||
6 |
Ex code |
Exd IIB T6 |
||
|
7 |
weight |
N.W |
kg |
2.4 |
G.W |
2.6 |
|||
8 |
The introduction of cable |
mm |
Φ8-14 |
|
|
9 |
Dimensions |
mm |
250×140×110 |
|
Ctn size |
mm |
260×190×130 |
||
installation drawing of led explosion-proof high bay lighting
Related led explosion-proof high bay lighting
Some of model light have three rated power for your select , satified to your different demands.
| RFLB103 | RFLB153 | RFLB156 | RFBL160 | RFLB165 |
| RFLB104 | RFLB154 | RFBL157 | RFLB162 | |
| RFLB105 | RFLB155 | RFLB158 | RFLB161 | |
Packaging Details: regular packing or customized for explosion proof light
Delivery Detail: 10-20days after receiving the 30%deposit for explosion proof light
Quality Guarantee
Thank you for purchasing explosion proof light of Wenzhou Recen Lighting Electrical Co., Ltd.. Our products are in strict accordance with the ISO9001 quality control standards. Explosion proof light warranty is for 3 years (Light bulb for 1 year). In three years, any failure under normal use is repaired by our company for free (Free materials and repairs). contact our company's marketing service department, and we will provide you with high quality and efficient services.
Why us
Because we believe in providing quality not just the first time, but every time:
High Customer satisfaction
Various of products
Competitive price
OEM/ODM are welcomed
Q: Which areas need to use explosion proof light?
A: It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas and areas with dust.
Q: What is the advantage of explosion proof light?
A: It make the worker more safe, because the lamp having function with explosion-proof, dust proof and water proof. In flammable and explosive area to safe work.
Q: Do Led have a longer life than incandescent bulbs?
A: Yes. Incandescent bulb generally last 500-2000 hours, whereas Led may last for 20000-50000 hours or around 20-40 years. this means Led may last 25 times longer than incandescent.
Q: Do the surface of explosion proof light will rust?
A:No, we choose the advantage spay printing of surface, no rust, do not change color, anti rain, could be use outfield for a long terms
Q: How does your factory do regarding quality control?
A: Quality first. We always attach great important to quality control form begin to end. Our factory has gained CCC,CQC authentication.
