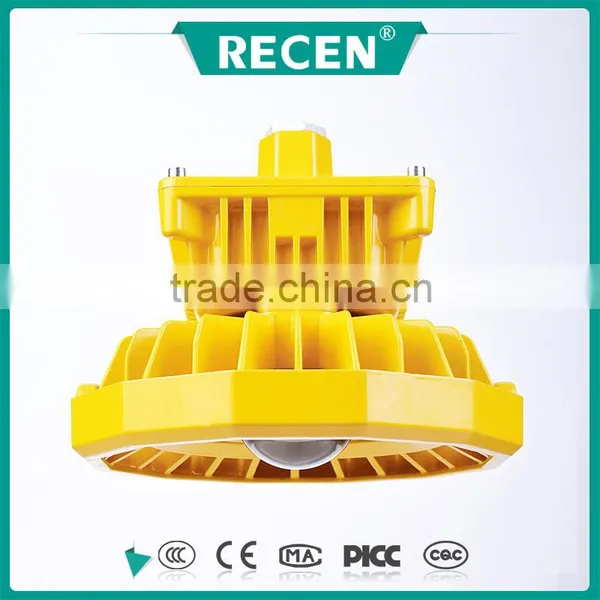

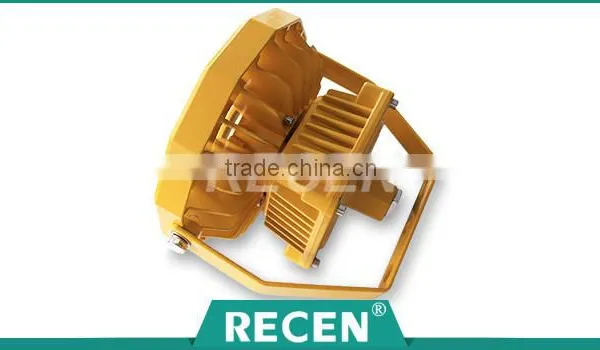

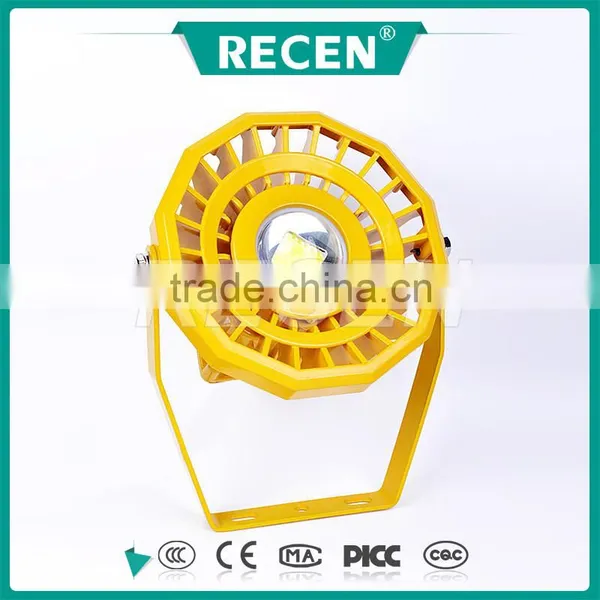

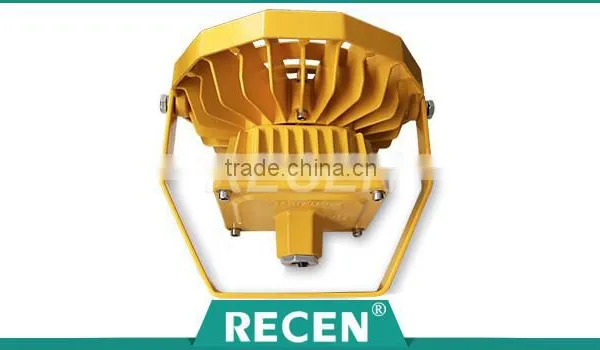

IP66 40watt 50watt 60watt Longevity Led explosion proof lamp RFBL104-40 50 60w
Application:
Hazardous zones: 1, 2, 20, 21, 22
Gas : IIA IIB IIC
Dust: Zone 21 (Group E Only). Zone 22
Temperature :T1~T6
It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas & and areas with dust.
Features and benefits
1. 90~305 AC and 12~24V DC can be choose .
2. Integrated LED mode for light source, low consumption , high brightness, At the same brightness than high pressure sodium, metal halide , mercury saving more than 70%
3. LED low voltage DC, do not need ballast, DC drive power to the integration in the LDE light fixtures.
4. Excellent heat dissipation , the service life more than 50000h , almost maintenance-free
5. Shell of aluminum alloy die-casting model, anti-electrostatic on surface, coated anti corrosion.
6. Explosion proof the highest level, has excellent water proof, dust proof and anti corrosion
7. High-strength tempered glass lens , high temperature resistance, corrosion resistance , impact resistance, high transmittance
8. Advanced lens optical design, with rectangle light and circular light can be choose, wide illumination range , uniform illumination
9. Light source cavity, power cavity, three-cavity separate wiring compartment, ensure that the system is stable.
10. Optimized design of drive power, high precision constant current, wide input voltage range, high efficiency, anti interference grid design.
11. Various installation options
Specification of Led explosion proof lamp
| Technical parameters: | |||||
| No | Specification | unit | Reference values | ||
| 1 | Rated Voltage | V | AC220 | ||
| 2 | Frequency | Hz | 50/60 | ||
| 3 | Light source(LED) | Power | w | 40 | |
| 50 | |||||
| 60 | |||||
| Luminous flux | 40 | lm | 4200 | ||
| 50 | 5200 | ||||
| 60 | 6300 | ||||
| service life of light source | h | 100000 | |||
| 4 | The introduction of cable(diameter) | mm | 8~12 | ||
| 5 | Dimensions | Length | mm | 230 | |
| width | 230 | ||||
| height | 180 | ||||
| 6 | weight | kg | 3.8 | ||
| 7 | Screw thread of inlet | G3/4'' | |||
| 8 | Protection grade | IP66 | |||
| 9 | Anti Corrosion | WF2 | |||
| 10 | Insulation Grade: | I | |||
| 11 | Ex code: | Ex d II C T6 Gb | |||

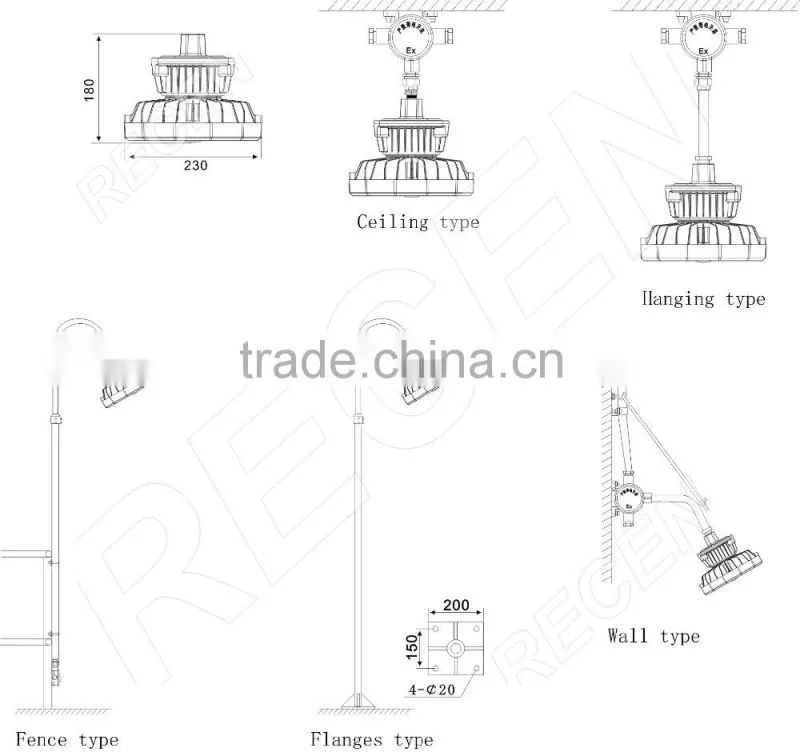

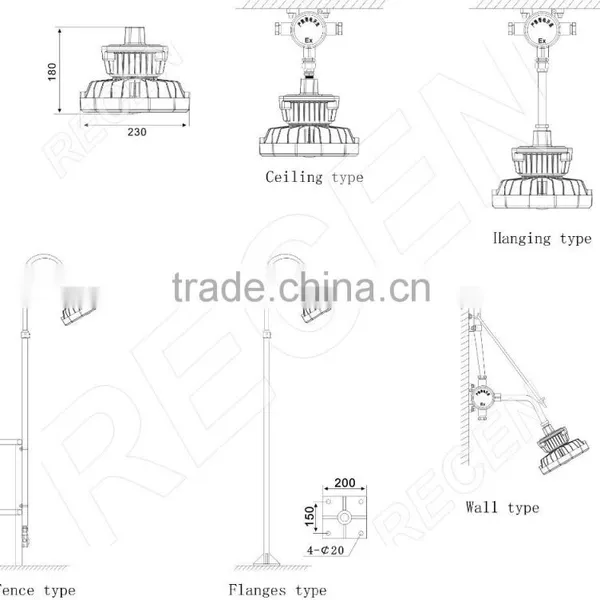

Installation drawing

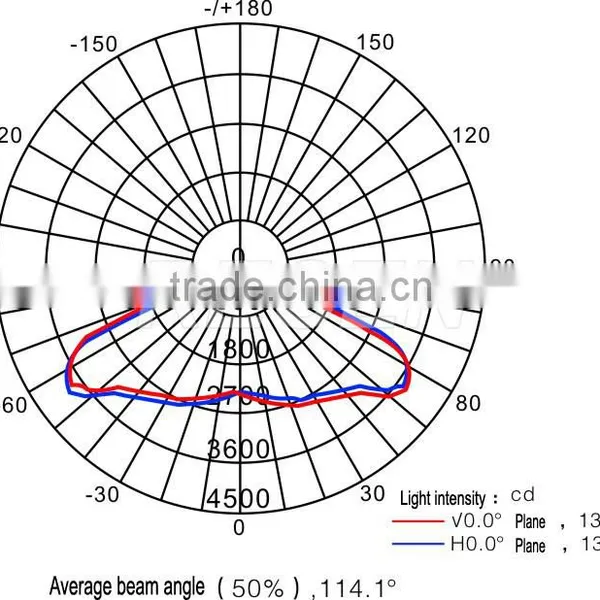

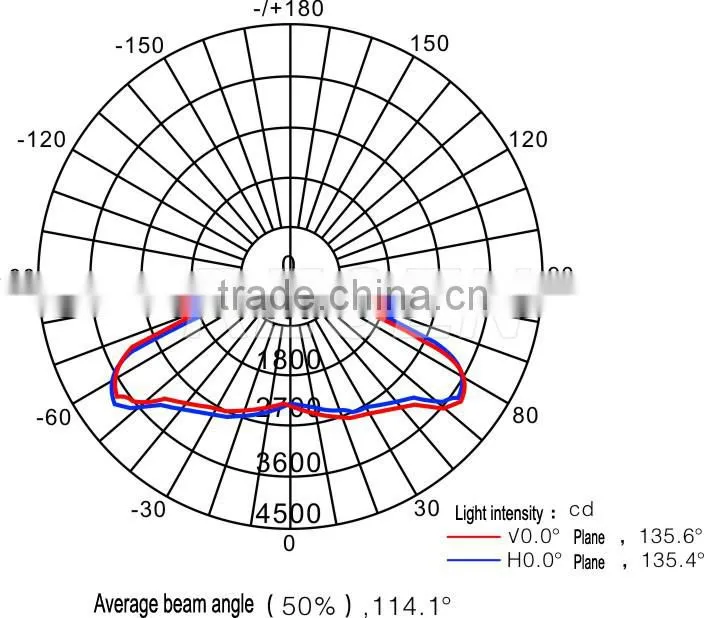

Light distribution curve
Related products Some of model light have three rated power for your select , satified to your different demands.
| RFBL154 |
RFBL158 | RFBL156 | RFBL164 | RFBL165 |
| RFBL103 | RFBL153 | RFBL160 | RFBL162 | |
| RFBL105 | RFBL155 | RFBL157 | RFBL161 | |
Packaging Details: regular packing or customized
Delivery Detail: 10-20days
Quality Guarantee
Thank you for purchasing the products of Wenzhou Recen Lighting Electrical Co., Ltd.. Our products are in strict accordance with the ISO9001 quality control standards. The product warranty is for 3 years (Light bulb for 1 year). In three years, any failure under normal use is repaired by our company for free (Free materials and repairs). contact our company's marketing service department, and we will provide you with high quality and efficient services.
Why us
Because we believe in providing quality not just the first time, but every time:
•High Customer satisfaction
• Various of products
• Competitive price
• OEM/ODM are welcomed
Our products patents and ISO 9001:2008
Recen CCC certification , business license and trade mark.
RECEN tax registration certification and Organization-Code-Certificate
Q: Which areas need to use explosion-proof light?
A: It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas and areas with dust.
Q: What is the advantage of explosion-proof light?
A: It make the worker more safe, because the lamp having function with explosion-proof, dust proof and water proof. In flammable and explosive area to safe work.
Q: Do Led have a longer life than incandescent bulbs?
A: Yes. Incandescent bulb generally last 500-2000 hours, whereas Led may last for 20000-50000 hours or around 20-40 years. this means Led may last 25 times longer than incandescent.
Q: Do the surface of lamp will rust?
A:No, we choose the advantage spay printing of surface, no rust, do not change color, anti rain, could be use outfield for a long terms
Q: How does your factory do regarding quality control?
A: Quality first. We always attach great important to quality control form begin to end. Our factory has gained CCC,CQC authentication.
