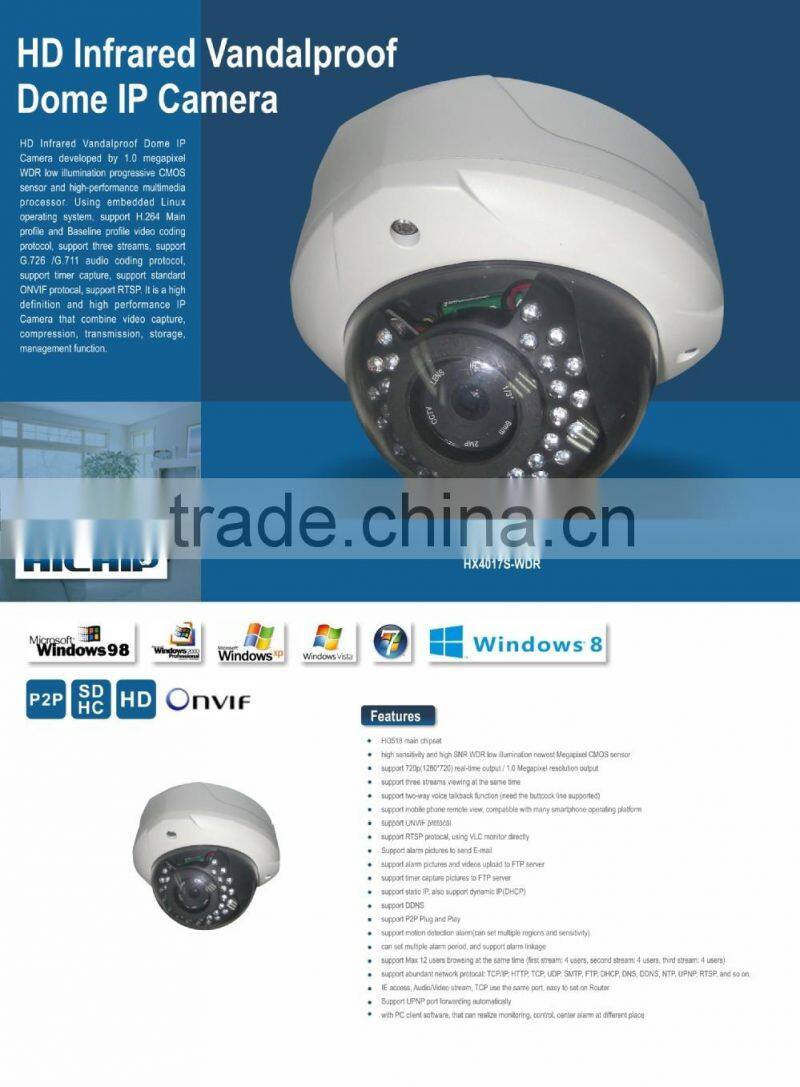

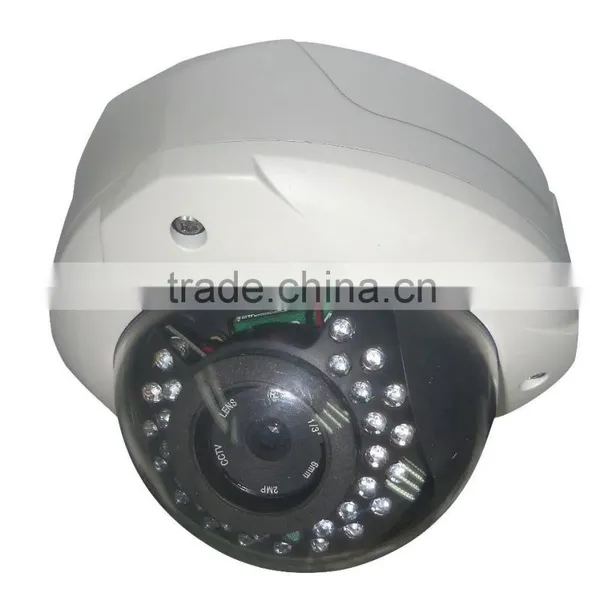

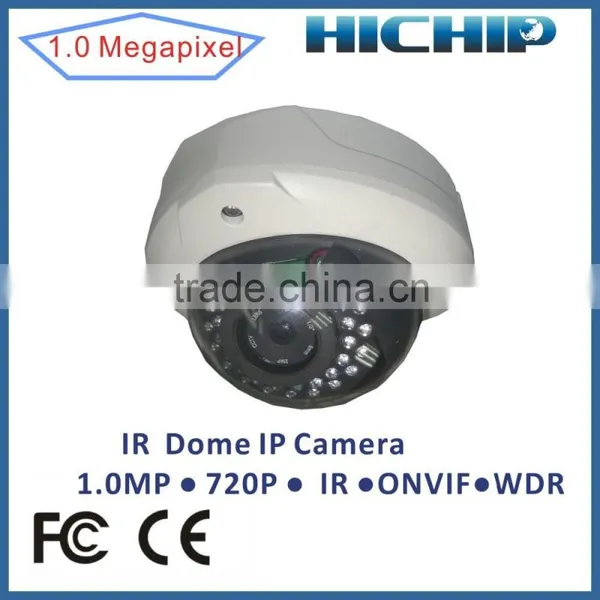

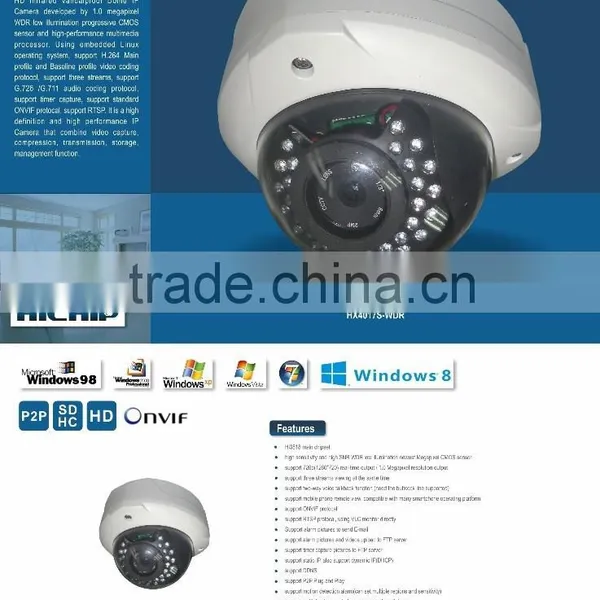

Hichip Megapixel Onvif P2P HD IP Camera with vandalproof shell

Model

HX4017S-WDR

operating system

embedded Linux

main chipset

Hi3518

video compression

H.264 Main profile and Baseline profile adjustable

sensor

1/2.7” 1.0 megapixel WDR low illumination progressive CMOS sensor

video parameter

Brightness, Contrast, Saturation, Explosure, Flip, Mirror are adjustable

CMOS performance

Support Auto White Balance(AWB), Auto Gain Control(AGC), Auto Backlight compensation(BLC), and so on

Minimum illumination

0.01Lux

WDR range

120dB

IR distance

20m (IRCUT switch critical value can be set)

Lens

6mm

video resolution

first stream: 720P(1280*720) and Q720P(640*352) are optional

second stream: Q720(640*352) and QQ720P(320*176) are optional

third stream: QQ720P (320*176)

JPEG code rate: Q720P(640*352) and QQ720P(320*176) are optional (for mobile phone viewing)

video frame rate

first stream: PAL: 1-25fps NTSC: 1-30fps

second stream: PAL: 1-25fps NTSC: 1-30fps

third stream: PAL: 1-25fps NTSC: 1-30fps

video compression Bitrate

32Kbits/s – 6Mbits/s adjustable

Audio Input

Volume 1-100 adjustable; default is 31 for microphone input; default is 15 for linear input

Audio Output

Volume 1-100 adjustable; default is 79

Audio format

G.726/G.711, default is G.726

Motion Detection

4 independent area can be set (sensitivity 1-100 adjustable)

Alarm linkage

sending pictures to named mailbox; upload pictures and video to FTP server

Network protocal

TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on

Access protocal

support ONVIF, and support authority verify(defalut close authority verify)

network port

10Base-T/100Base-TX Ethernet port

power supply

DC 12V 1A

Power consumption

4W

Operating temperature

-20 ~ +55 ℃

Operating humidity

10 ~ 95%RH
