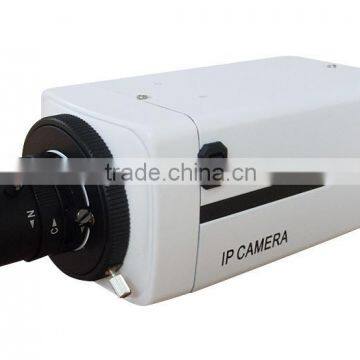

Box Camera 1.0MP H.264 easy to install P2P IP Camera Onvif support 32G SD Card, Wireless WDR IP Camera
Features:
- 1/2.7" 1.0 Megapixel WDR low illumination progressive CMOS sensor
- H.264 three streams compression
- Resolution: 720P(1280*720), 25fps (PAL)/30fps (NTSC)
- 1CH Audio input (G.711/G.726), Two way voice talkback
- 1CH Alarm input, 1CH Alarm output
- one RS485 port, one RJ45 10/100M Ethernet port
- Support Mobile phone View
- Support SD Card record and capture; support motion detection, Email, FTP
- Support ONVIF2.0
- Support wifi
Technical Parameters:
Model |
HX4001S-WDR |
operating system |
embedded Linux |
main chipset |
Hi3518 |
video compression |
H.264 Main profile and Baseline profile adjustable |
Audio compression |
G.726/G.711 |
sensor |
1/2.7” 1.0 megapixel progressive CMOS sensor |
video parameter |
Brightness, Contrast, Saturation, Shutter, Flip, Mirror are adjustable |
CMOS performance |
Support Auto White Balance(AWB), Auto Gain Control(AGC), Auto Backlight compensation(BLC), and so on |
Minimum illumination |
0.01Lux |
WDR range |
120dB |
Lens |
4-9mm |
video resolution |
first stream: 720P(1280*720) and Q720P(640*352) are optional |
second stream: Q720(640*352) and QQ720P(320*176) are optional | |
third stream: QQ720P (320*176) | |
JPEG code rate: Q720P(640*352) and QQ720P(320*176) are optional (for mobile phone viewing) | |
video frame rate |
first stream: PAL: 1-25fps NTSC: 1-30fps |
second stream: PAL: 1-25fps NTSC: 1-30fps | |
third stream: PAL: 1-25fps NTSC: 1-30fps | |
video compression Bitrate |
32Kbits/s – 6Mbits/s adjustable |
Audio Input |
Volume 1-100 adjustable; default is 31 for microphone input; default is 15 for linear input |
Audio Output |
Volume 1-100 adjustable; default is 79 |
Audio format |
G.726/G.711, default is G.726 |
Alarm I/O |
1CH Input(normally open/normally close adjustable), 1CH Output, 120V AC 2A / 24V DC 2A |
Motion Detection |
4 independent area can be set (sensitivity 1-100 adjustable) |
Alarm linkage |
sending pictures to named mailbox; upload pictures and video to FTP server; pictures and videos to SD Card |
control port |
1CH RS485 |
Network protocal |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on |
Access protocal |
support ONVIF, and support authority verify(defalut close authority verify) |
storage |
Max 32G SD Card, supporting Timer record storage |
network port |
10Base-T/100Base-TX Ethernet port |
Wifi 802.11b/g/n wireless network (optional) | |
power supply |
DC 12V 1A; support POE (optional) |
Power consumption |
3W |
Size |
115mmx64mmx58mm |
Operating temperature |
-20 ~ +70 ℃ |
Operating humidity |
10 ~ 95%RH |
Package:
Client Software:
Two way audio:
Motion detection:
Alarm:
Payment & shipping:
Our Service:
OEM and ODM service are acceptable.
Welcome your sample order!
