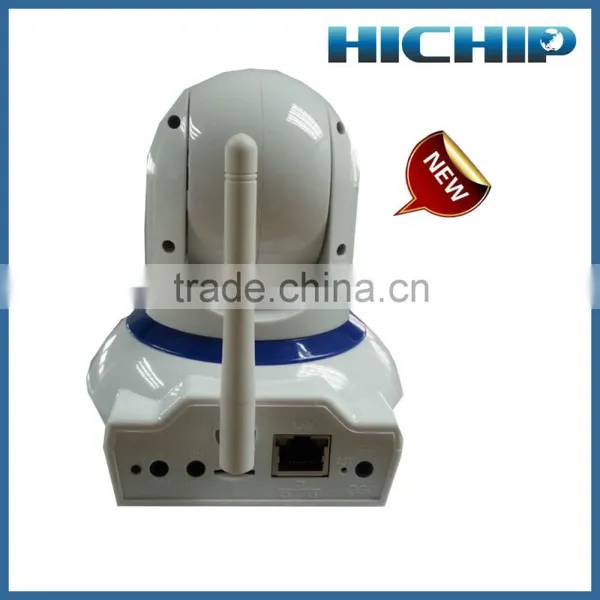

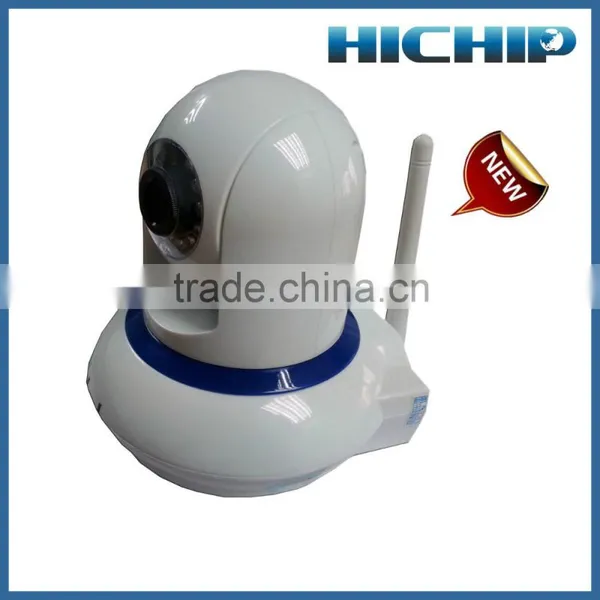

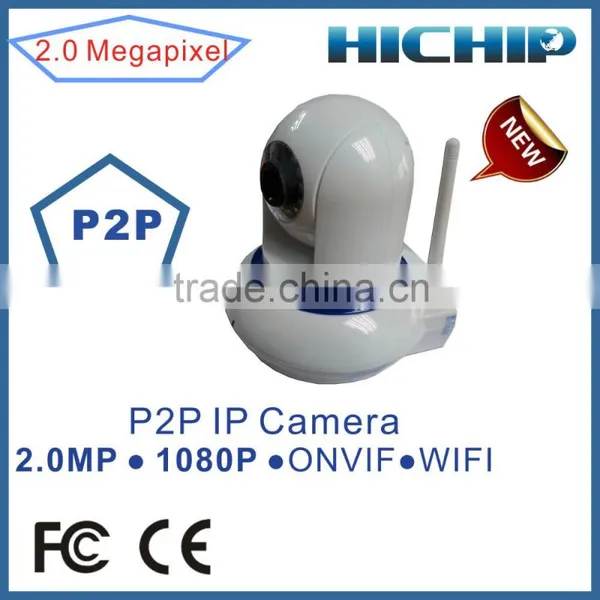

Hichip Onvif 2.0 1080P IP PTZ Camera Wireless P2P Plug and Play, 10m ir range
Features:
- 1/2.7” 2.0 megapixel progressive CMOS sensor; Hi3516C
- H.264 three streams compression
- Resolution: 1080p(1920*1080), 25fps (PAL)/30fps (NTSC)
- 1CH Audio input (G.711/G.726), 1CH Audio output, Two way voice talkback
- one RS485 port, one RJ45 10/100M Ethernet port
- support P2P Plug and Play
- Support Mobile phone View
- Support TF Card record and capture; support motion detection, Email, FTP
- Support ONVIF2.0
- built-in 802.11b/g/n wireless network module
- 12pcs IR LED
- 10m IR Distance
- 3.6mm 2 megapixel lens
Specification:
|
Camera |
Model |
HX4020S-1080 |
Operating system |
embedded Linux |
|
Processor |
Hi3516C |
|
Image sensor |
1/2.7” 1 megapixel progressive CMOS sensor |
|
Minimum illumination |
0.1Lux |
|
Lens |
3.6mm |
|
Distance |
10m |
|
PTZ |
support 8 preset; horizontal: 270 degree vertical: 90 degree |
|
Compression standard |
Video compression |
H.264 Main profile and Baseline profile adjustable |
Audio compression |
G.726/G.711 (Default is G.711) |
|
Video compression |
32Kbps-6Mbps, can self-defined, default is 4Mbps |
|
Image |
video resolution |
first stream: 1080P(1920*1080) and 720P(1280*720) optional |
sub stream: Q720(640*352) and QQ720P(320*176) optional | ||
Three Stream:QQ720P(320*176) | ||
JPEG code rate: Q720P(640*352) and QQ720P(320*176) (for mobile phone viewing) | ||
Video frame rate |
25fps(50HZ), 30fps(60HZ) |
|
OSD |
support OSD name and Time OSD (on and off available) |
|
Image setting |
Brightness, Contrast, Saturation, Exposure, Flip and Mirror are adjustable |
|
Function |
Storage |
Max 32G TF Card, supporting Timer record storage |
Motion detection |
can set 4 independent detection area (sensitivity is 1-100 adjustable) |
|
Alarm linkage |
sending pictures to named mailbox; upload pictures and video to FTP server; pictures and videos to SD Card |
|
Network protocal |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on |
|
Access protocal |
support ONVIF, support purview check(default close purview check) |
|
Port |
Audio Input |
built-in Microphone, 1CH Audio Input, support connect external MIC/pickup |
Audio Output |
built-in speaker, 1CH Audio output, support connect external microphone or amplifier |
|
Network port |
10Base-T/100Base-TX Ethernet interface |
|
WIFI 802.11b/g/n wireless network | ||
common specification |
Power supply |
DC5 V 2A |
Power consumption |
6W |
|
Size |
135mmx124mmx132mm |
|
Operating temperature |
-20 ~ +55 ℃ |
|
Opertaing humidity |
10 ~ 95%RH |
Support P2P Plug & Play:
No need Router Port mapping!! No need DDNS!!
P2P Client:
Motion detection:
Two way audio:
Alarm:
Multi platform real time viewing:
How to remote view by mobile phone?
Payment & Shipping:
Our Service:
OEM & ODM service are available.
