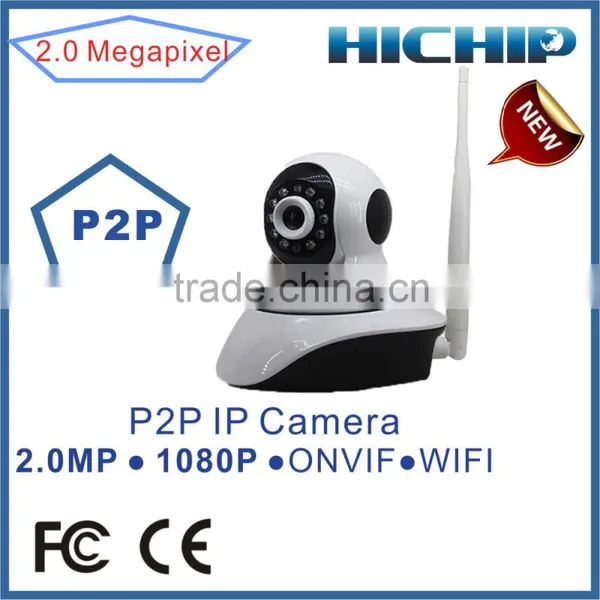

Easy to use 2MP CMOS HD Baby Monitor Mini IP Camera,Wireless CCTV Camera with 10m IR Distance
Features:
- 1/2.7” 2.0 megapixel progressive CMOS sensor; Hi3516C
- H.264 three streams compression
- Resolution: 1080p(1920*1080), 25fps (PAL)/30fps (NTSC)
- 1CH Audio input (G.711/G.726), 1CH Audio output, Two way audio
- Support Alarm Prerecord
- support P2P Plug and Play
- Support Mobile phone View
- Support 128G TF Card record and capture; support motion detection, Email, FTP
- Support ONVIF2.0
- built-in 802.11b/g/n wireless network module
- 12pcs IR LED
- 10m IR Distance
- 3.6mm 2 megapixel lens
Specification:
HX4028SW-1080 | ||
|
Camera |
Operating system |
embedded Linux |
Processor |
Hi3516C |
|
Image sensor |
1/2.7” 2.0 megapixel progressive CMOS sensor |
|
Minimum illumination |
0.5Lux |
|
Lens |
3.6mm |
|
IR Distance |
10pcs IR LED, 10m night vision |
|
Compression standard |
Video compression |
H.264 Main profile and Baseline profile adjustable |
Audio compression |
G.726/G.711 (Default is G.711) |
|
Compression transmission rate |
32Kbps-8192Kbps, can self-defined, default is 6144Kbps |
|
Image |
video resolution |
first stream: 1080P(1920*1080) and 720P(1280*720) optional |
sub stream: Q720(640*352) and QQ720P(320*176) optional | ||
Three Stream:QQ720P(320*176) | ||
JPEG code rate: Q720P(640*352) and QQ720P(320*176) (for mobile phone viewing) | ||
Video frame rate |
25fps(50HZ), 25fps(60HZ) |
|
OSD |
support OSD name and Time OSD (on and off available) |
|
Image setting |
Brightness, Contrast, Saturation, Exposure, Flip and Mirror are adjustable |
|
Video mask |
can set four mask area, color of mask area can be set |
|
Function |
Storage |
Max 64G TF Card, support timing record storage |
Motion detection |
can set 4 independent detection area (sensitivity is 1-100 adjustable) |
|
Rotation |
horizontal:270° Vertical:90° support cruise up and down, left and right |
|
Preset |
1-8 preset, alarm linkage preset |
|
Alarm linkage |
sending pictures to named mailbox; upload pictures to FTP server |
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on |
|
Access protocol |
support ONVIF, support purview check(default close purview check) |
|
Port |
Audio Input |
built-in Microphone, 1CH Audio Input, support connect external MIC/pickup |
Audio Output |
built-in speaker, 1CH Audio output, support connect external microphone or amplifier |
|
Network port |
10Base-T/100Base-TX Ethernet interface |
|
WIFI 802.11b/g/n | ||
common specification |
Power supply |
DC 5V 2A |
Power consumption |
4W |
|
Size |
105mm X 120mm X 130mm |
|
Operating temperature |
0 ~ +55 ℃ |
|
Operating humidity |
10 ~ 95%RH |
|
Support P2P Plug & Play:
No need Router Port mapping!! No need DDNS!!
Support multi platform real-time viewing:
The step of mobile phone view:
Free P2P Client, can control PTZ function
Support IE/Chrome/Firefox
Motion detection:
Auto IR Cut:
