Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera

Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera

Name: Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera
Brand: Hichip or OEM
SKU: 107560219
Availability: InStock

Shenzhen Hichip Vision Technology Co., Ltd.

Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera thumbnail-1

Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera thumbnail-2

Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera thumbnail-3

Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera photo-1

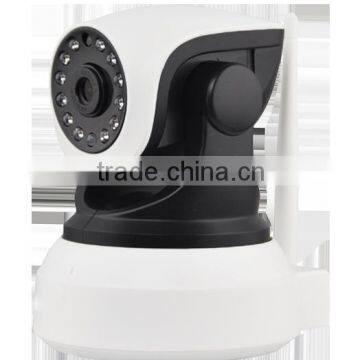

Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera photo-2

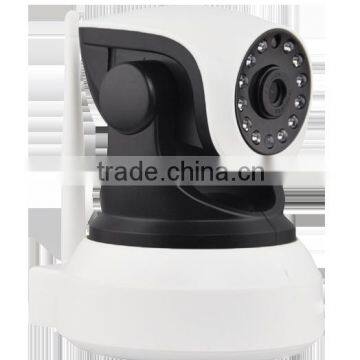

Dome Camera Style and CMOS Sensor Ptz Night Vision ip Camera photo-3

US$ 10 - 30 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Hichip or OEM

Model Number:

HX4033SW

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Yantian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Hichip or OEM

Model Number HX4033SW

Type Digital Camera

Style Dome Camera

Sensor CMOS

Technology NetWork

Special Features Other, Infrared

Dome Camera Style and CMOS Sensor ptz night vision ip camera

Features:

1/4" 1.0 megapixel progressive CMOS sensor; Hi3518E
H.264 double streams compression
Resolution: 720p(1280*720), 25fps (PAL)/30fps (NTSC)
1CH Audio input (G.711/G.726), 1CH Audio output, Two way audio
Support Alarm Prerecord
support P2P Plug and Play

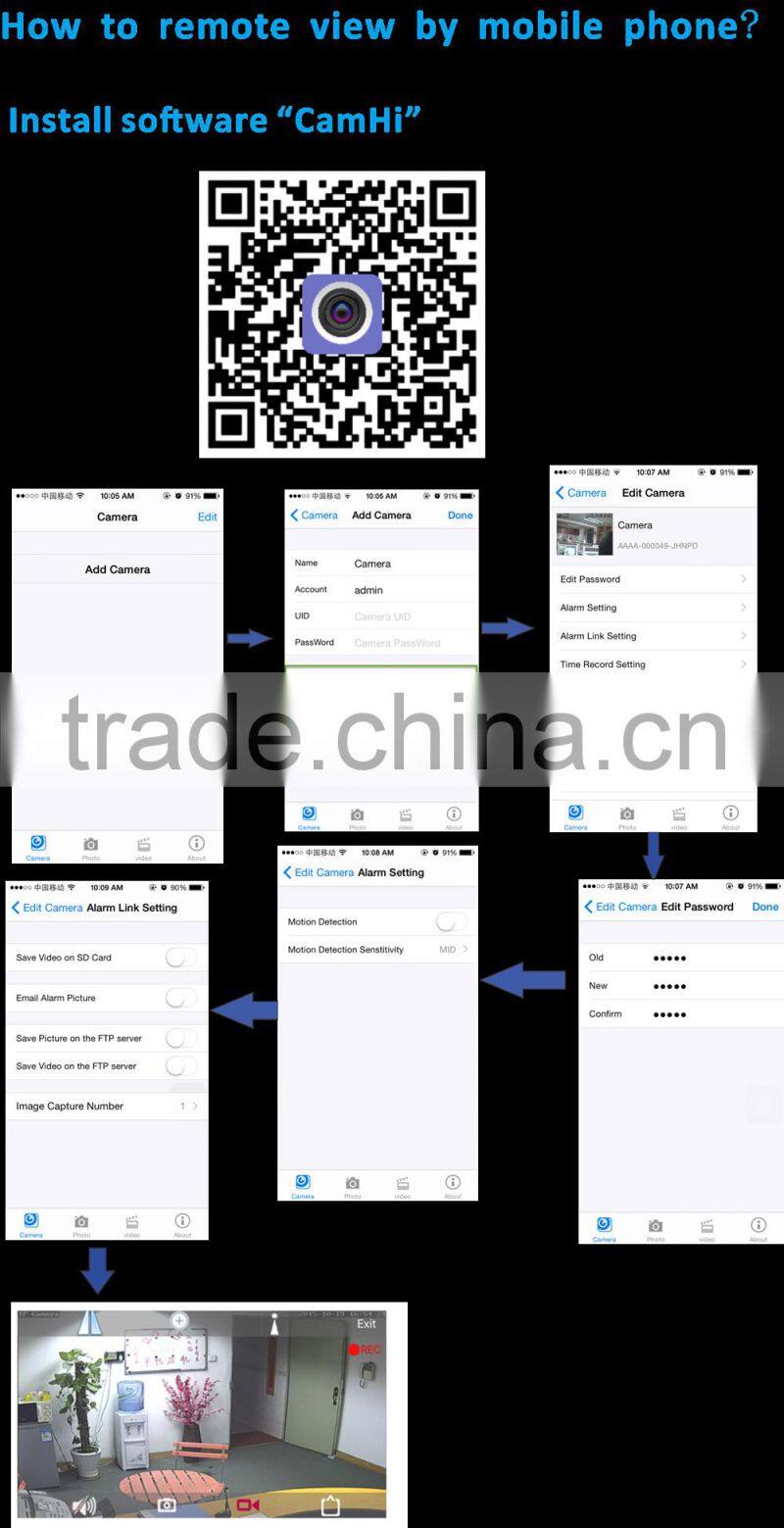

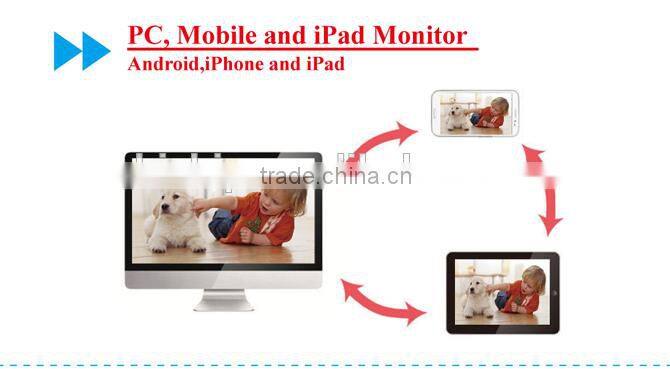

Support Mobile phone View
Support TF Card record and capture; support motion detection, Email, FTP
Support ONVIF2.0
built-in 802.11b/g/n wireless network module
13pcs IR LED
10m IR Distance
3.6mm 1 megapixel lens

Specification:

HX4033SW
Camera	Operating system	embedded Linux
	Processor	Hi3518E
	Image sensor	1/4” 1.0 megapixel progressive CMOS sensor
	Minimum illumination	03Lux
	Lens	3.6mm
	IR Distance	13pcs IR LED, 10m night vision
Compression standard	Video compression	H.264 Main profile and Baseline profile adjustable
	Audio compression	G.726/G.711 (Default is G.711)
	Compression transmission rate	32Kbps-8192Kbps, can self-defined, default is 6144Kbps
Image	video resolution	first stream: 720P(1280720) and Q720P(640352) optional
		sub stream: Q720(640352) and QQ720P(320176) optional
		JPEG code rate: Q720P(640352) and QQ720P(320176) (for mobile phone viewing)
	Video frame rate	20fps(50HZ), 20fps(60HZ)
	OSD	support OSD name and Time OSD (on and off available)
	Image setting	Brightness, Contrast, Saturation, Exposure, Flip and Mirror are adjustable
	Video mask	can set four mask area, color of mask area can be set
Function	Storage	Max 128G TF Card, support timing record storage
	Motion detection	can set 4 independent detection area (sensitivity is 1-100 adjustable)
	Rotation	horizontal:270° Vertical:90° support cruise up and down, left and right
	Preset	1-8 preset, alarm linkage preset

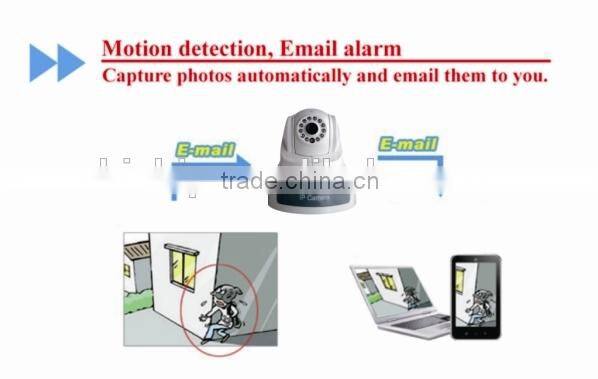

	Alarm linkage	sending pictures to named mailbox; upload pictures to FTP server
	Network protocol	TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on
	Access protocol	support ONVIF, support purview check(default close purview check)
Port	Audio Input	built-in Microphone, 1CH Audio Input, support connect external MIC/pickup
	Audio Output	built-in speaker,, support connect external microphone or amplifier
	Network port	10Base-T/100Base-TX Ethernet interface
	Network port	WIFI 802.11b/g/n
common specification	Power supply	DC 5V 2A
	Power consumption	4W
	Size	115mm X 110mm X 125mm
	Operating temperature	0 ~ +55 ℃
	Operating humidity	10 ~ 95%RH
