Specifications
1.Fiberglass Reinforced with Silicone2.Thermal insulation silicone pad
3.UL & ROHS listed
4.Thickness:0.25mm

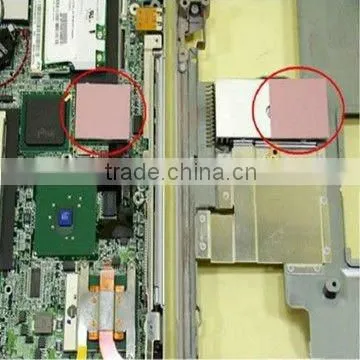

Thermal insulation pad Coated with fiberglass
The HCG/HCP Thermal insulation pad Coated with fiberglass is an anti-piercing & anti-tearing product with a high shear strength , which consisted by the low modulus polymer attached to the glass fiber substrate, so the product can be used as a filler between the machine’s contact interface.
Features & benefits:
1.Low hardness with ultra-conforming
2.Enhanced shear strength, piercing and tearing resistance
3.Electrically isolating
4.Meet with the environmental requirements of ROHS and UL
Typical applications:
1.Communications industry /AC/DC power
2.Power conversion equipment
3.The framework, chassis or other area need to transfer heat
4.HID ballast
5.Auto control unit (ECU)
6.Uninterruptible power supply(UPS)
Physical properties:
Test item |
Test method |
Unit |
HCG240 Test value |
HCP240Test value |
Color |
Visual |
|
Light blue |
Incanus+Pink / Incanus+Gray |
Thickness |
ASTM D374 |
Mm |
0.25 /0.3 /0.5 |
0.5 to 13.0 |
Specific Gravity |
ASTM D792 |
g/cc |
1.6 |
1.8±0.1 |
Hardness |
ASTM D2240 |
Shore C |
20 |
5 to 30 |
Tensile Strength |
ASTM D412 |
kg/cm2 |
8 |
8 |
ASTM D412 |
Pa |
5.88*109 |
5.88*109 |
|
Continuous Use Temp |
EN344 |
°C |
-40 to +220 |
-40 to +220 |
Volume Resistivity |
ASTM D257 |
Ω-CM |
5.0*1013 |
1.0*1011 |
Breakdown Voltage |
ASTM D149 |
KV/mm |
>5 |
6 |
Flame Rating |
UL-94 |
|
V-0 |
V-0 |
Conductivity |
ASTM D5470 |
w/m-k |
1.5 to 3.0 |
1.0 |
Configurations available: 200mm*400mm, 300mm*300mm, specific size could be provided according to your requirements.
Packaging:
-Carton box & Plastic bags
-430mm*230mm*120mm for 200mm*400mm size
-320mm*320mm*120mm for 300mm*300mm size
