Help CenterPink Fiberglass Reinforced Thermal Pad
Related Products
-
UL & SGS Approved Fiberglass Thermal Insulation MaterialsUS$ 2.5 - 20MOQ: 15 Pieces -
Thermal Pad Coated With Fiberglass for Car BatteryUS$ 2.5 - 20MOQ: 15 Pieces
-
High Quality of Fiberglass Thermal PadsNegotiableMOQ: 15 Pieces
-
Indoor Energy Saving Light Fiberglass Thermal PadNegotiableMOQ: 15 Pieces
-
PC Board Fiberglass Reinforced Thermal PadsNegotiableMOQ: 15 Pieces
Specifications
1.UL & ROHS listed2.Thermal insulation silicone pad
3.Various thickness
4.Fiberglass Reinforced with Silicone
We are a professional professional manufacturers of Thermally Conductive materials in China.

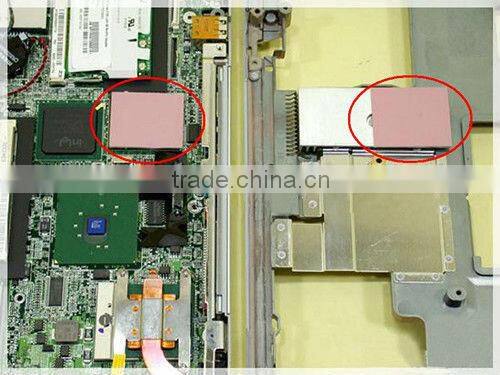

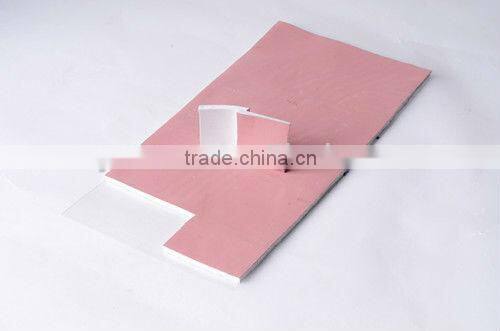

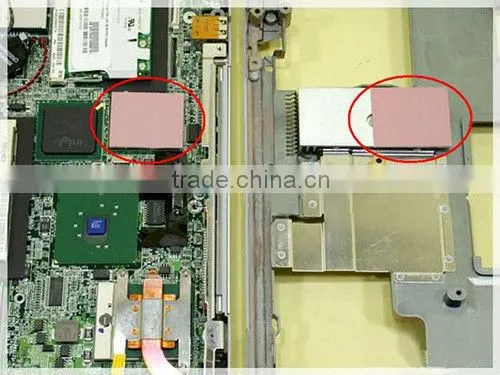

The HCG Thermal pad coated with fiberglass is a composite which consisted by the low modulus polymer attached to the glass fiber substrate, with a high shear strength, not easy to break and superior insulation, so the product can be used as a filler between the machine’s contact interface.
The thickness is generally no more than 1.0mm
Features:
The thermal conductive silicon pad coated with fiberglass has Low hardness with superior insulation. Enhanced the shear strength of the products because of the fiberglass is coated, and the product has highly piercing and tearing resistance. Its widely used in Electronics Industry.
Typical applications:
1. HID ballast
2. Auto control unit (ECU)
3. Communications industry /AC/DC power
4. Power conversion equipment
5. Uninterruptible power supply (UPS)
Technical specifications
Test item |
Test method |
Unit |
HCG240 Test value |
Color |
Visual |
Light blue |
|
Thickness |
ASTM D374 |
Mm |
0.25 /0.3 /0.5 |
Specific Gravity |
ASTM D792 |
g/cc |
1.6 |
Hardness |
ASTM D2240 |
Shore C |
5 to 25 |
Tensile Strength |
ASTM D412 |
kg/cm2 |
8 |
ASTM D412 |
Pa |
5.88*109 |
|
Continuous Use Temp |
EN344 |
°C |
-40 to +220 |
Volume Resistivity |
ASTM D257 |
Ω-CM |
5.0*1013 |
Breakdown Voltage |
ASTM D149 |
KV/mm |
>5 |
Flame Rating |
UL-94 |
V-0 |
|
Conductivity |
ASTM D5470 |
w/m-k |
1.5 to 3.0 |
Why choose KUAYUE'''S thermal interface material?
1.Only thermal conductivity material we produced, so we are more professional.

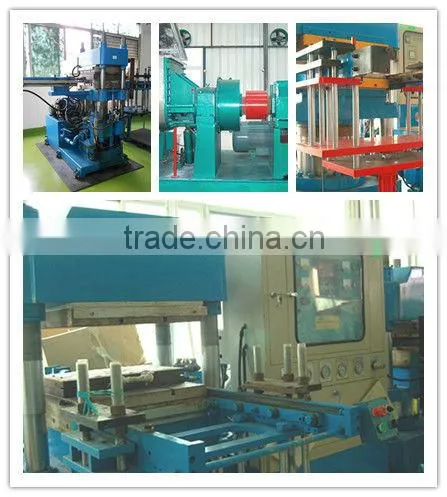

2.We have a series of advanced equipments,look the one piece of the following pictures.
3. We are have our Lab Room test and directly control the quliaty of the products.

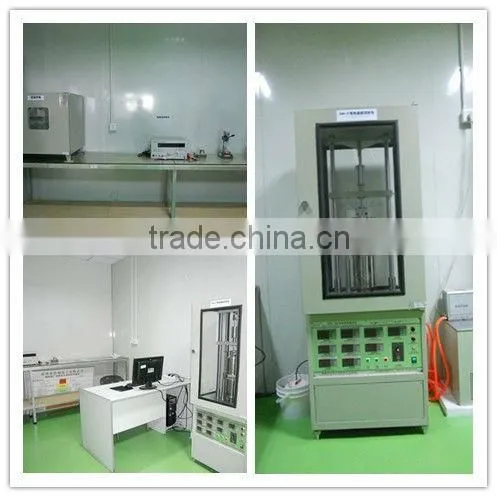

Thermal Conductivity Tester for test the Thermal conductivity
Constant Temperature Oven for test the Continuous use Temperature

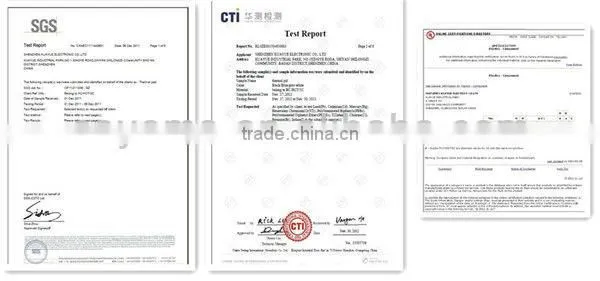

4. Many of our thermal interface material has recieved the SGS,UL certification.

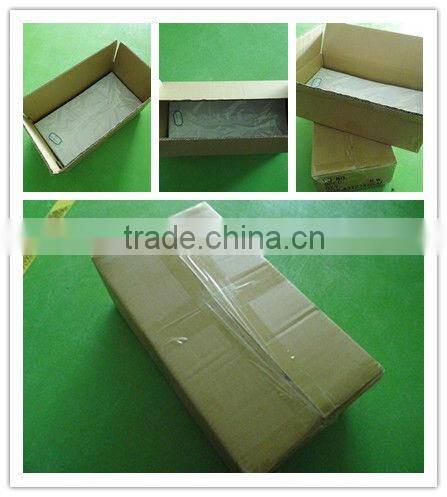

Packing details:
High quality polybags and carton or according to customers' requirements.
-430mm*230mm*120mm for 200mm*400mm size (carton box)
-320mm*320mm*120mm for 300mm*300mm size (carton box)
If you are interested our thermal interface material,please don't hesitate to contact us,we will provide you the best service.
Cindy
Shenzhen Kuayue Electronic Co., Ltd.
ADD: Kuayue Industrila Park, No.1 Xingye Road, Shiyan Shilongzi Community, Bao'an Dustrict,Shenzhen 518108,China
Tel:+86-755-28147539 ext 811
Mobile: +86-13926508201
Skype: cindysmile1990
Fax: +86-755-28147529
Website:
