Specifications
1.Gap filling pad2.Thermal interface materials
3.Industry direct price
4.ROHS & UL listed
We are a professional professional manufacturers of Thermally Conductive materials in China.

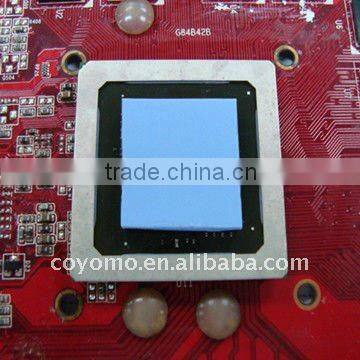

The High thermally conductivity pad has highly thermal conductivity which is designed with coherent winding and Fiberglass Reinforcement , the thermal conductivity can reach to 6.0w/m-k and meets UL 94 V-0 rating.
Features & benefits:
1. The thermal conductivity is 5.0-6.0 w/m-k
2. Natural stickiness
3. High compressibility, soft and flexible, designed for applications in low-stress application environment
4. Reinforced with fiberglass
5. Available in varies thickness
6. Meet with the environmental requirements of ROHS and UL
Typical applications:
1. Laptop
2. Communication hardware equipment
3. High-speed hard disk drive equipment
4. Automobile engine control mould
5. Micro processor, memory chip and graphics processor
6. Mobile equipment
Physical properties:
Test item |
Test method |
Unit |
Test value of HCH series |
|
HCH600 value |
HCH500 value |
|||
Color |
Visual |
Blue/ Laterite |
Blue/Yellow |
|
Thickness |
ASTM D374 |
Mm |
0.25 to 5.0 |
0.25 to 5.0 |
Specific Gravity |
ASTM D792 |
g/cc |
2.85 |
2.7 |
Hardness |
ASTM D2240 |
Shore C |
30 |
30 |
Tensile strength |
ASTM D412 |
kg/cm2 |
55 |
55 |
Continuous Use Temp |
EN 344 |
ºC |
-40 to 220 |
-40 to 220 |
Volume Resistivity |
ASTM D257 |
Ω-cm |
3.1*1011 |
3.1*1011 |
Breakdown voltage |
ASTM D149 |
KV/mm |
>5.0 |
>5.0 |
Flame Rating |
UL-94 |
V-0 |
V-0 |
|
Conductivity |
ASTM D5470 |
w/m-k |
6.0 |
5.0 |
Configurations available: 200mm*400mm, 300mm*400mm; specific size could be provided
according to your requirements.
Why choose KUAYUE'''S thermal interface material?
1.Only thermal conductivity material we produced, so we are more professional.
2.We have a series of advanced equipments,look the one piece of the following pictures.
3. We are have our Lab Room test and directly control the quliaty of the products.
Thermal Conductivity Tester for test the Thermal conductivity
Constant Temperature Oven for test the Continuous use Temperature
4. Many of our thermal interface material has recieved the SGS,UL certification.
Packing details:
High quality polybags and carton or according to customers' requirements.
-430mm*230mm*120mm for 200mm*400mm size (carton box)
-320mm*320mm*120mm for 300mm*300mm size (carton box)
If you are interested our thermal interface material,please don't hesitate to contact us,we will provide you the best service.
Cindy
Shenzhen Kuayue Electronic Co., Ltd.
ADD: Kuayue Industrila Park, No.1 Xingye Road, Shiyan Shilongzi Community, Bao'an Dustrict,Shenzhen 518108,China
Tel:+86-755-28147539 ext 811
Mobile: +86-13926508201
Skype: cindysmile1990
Fax: +86-755-28147529
Website:
