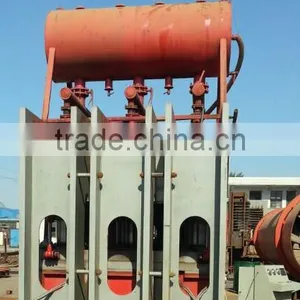

Help CenterShort Cycle Lamination Hot Press/lamination Hot Press Machine
Related Products
-
Rapid Cycle Laminating Hot Press Machine/ Laminating MachineNegotiableMOQ: 1 Set -
Turnover Machine for Plywood ,pb Wood. Board CoolerUS$ 2,800 - 3,600MOQ: 1 Set
-
New Turnover Machine for Plywood ,pb Wood or Osb. Board CoolerUS$ 2,800 - 3,600MOQ: 1 Set
-
Cheap Melamine Laminating Hot Press for PL/PB/OSB/block BoardUS$ 10,000 - 100,000MOQ: 1 Set
-
Automatic Short Cycle Laminating EquipmentUS$ 10,000 - 100,000MOQ: 1 Set
1.Applications:
1.2000T~ 2800T series of short cycle laminate hot press is suitable for laminating decorative paper, wearable paper and balance paper in both sides of HDF board to produce laminate floor with light /deep embosing, grasping grain and high-grade laminate flooring with vivid surface texture;
2.Main technical Data
Model |
NYJ-1800 |
NYJ-2000T |
NYJ-2200T |
NYJ-2400T |
NYJ-2800T |
Max. pressure(KN) |
18000 |
20000 |
22000 |
24000 |
28000 |
Max. pressure (kg/m²) |
≤60 |
≤67 |
≤73 |
≤80 |
≤94 |
Upside hot plate thickness(mm) |
150 |
150 |
150 |
150 |
150 |
Under hot plate thickness(mm) |
110 |
110 |
110 |
120 |
120 |
Main oil cylinder(mm) |
Φ340×8 |
Φ360×8 |
Φ380×8 |
Φ400×8 |
Φ420×8 |
;ifting cylinder(mm) |
Φ63×4 |
Φ63×4 |
Φ63×4 |
Φ80×4 |
Φ80×4 |
Vertical plate thickness(mm) |
70 |
70 |
70 |
80 |
100 |
Daylight opening(mm) |
200 |
200 |
200 |
200 |
200 |
Closing time(S) |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
Maximum oil pressure(Mpa) |
25 |
25 |
25 |
25 |
25 |
Maximum temperature() |
210 |
210 |
210 |
210 |
210 |
|
Main body weight of press machine(mm) |
≈43 |
≈44 |
≈45 |
≈53 |
≈63 |
