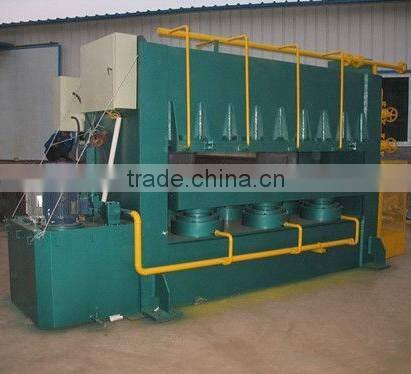

short cycle hot press,Produce hot press machine for wood/Short cycle lamination hot press
Nominal gross pressure |
1200T |
Dimension of the platen |
2600*1400*140 or 2600*1400*120mm |
Thickness of main body steel |
30mm,45mm |
number of hot platens |
2pcs |
number of cylinder |
6pcs |
dia |
320mm(Wuxi brand) |
Control mode |
Automatic pump |
Hot press |
can split |
Stroke |
200mm |
Into board direction |
crosswise |
number of layer |
2 |
Hot press plate number |
2 |
resistance to pressure |
no less than 25MPA |
NO-load closing time |
5s |
low pressure pump flow |
320ml/r |
power |
18.5kw |
control mode |
automatic station |
frame form |
skeleton type |
Fluctuation beam |
900mm |
stand column |
400mm |
Machines testing
Machines testing before leaving factory,
plywood hot press machine, 1200t film laminating hot press machine, LVL hot press machine, and 1600ton film laminating hot press machine
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 10 years .We have very high research and development capabilities to meet the requirements of custom.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
I. Short time abroad service:
10_30 days, one person. The buyer should pay for the round air fare, foods and accommodation; and the service including: the machine’s fixing, debugging, operating, maintaining and people’s training.
II. The buyer sends people to seller’s factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine’s fixing, debugging, operating, maintaining.
About Us
We are a professional Woodworking Machinery Manufacturer and Exporter in China, we offer all kinds of Woodworking
Machinery, and we are specializing in offering the Complete Line Machineries and Equipments for Particle Board & MDF & Plywood & OSB Production,and we can offer other kinds of Artificial Board Production Line as well. We also specialize in manufacturing Commercial Plywood, Filmfaced Plywood, Fancy Plywood, plain Particle Board, OSB, etc.
We supply complete line machineries & equipments for the production of MDF, plywood, particleboard, OSB, etc. We supply with production capacity ranges 20,000 to 200,000m3/year, and meanwhile if you need, we'll specially design and project the exact production line with the exact capacity in accordance with yourrequests. Kindly you're most welcome to contact for detailed information.
