Home > Products > Y41 series > Y41-63 Single column hydraulic punch press for sheet metal stamping

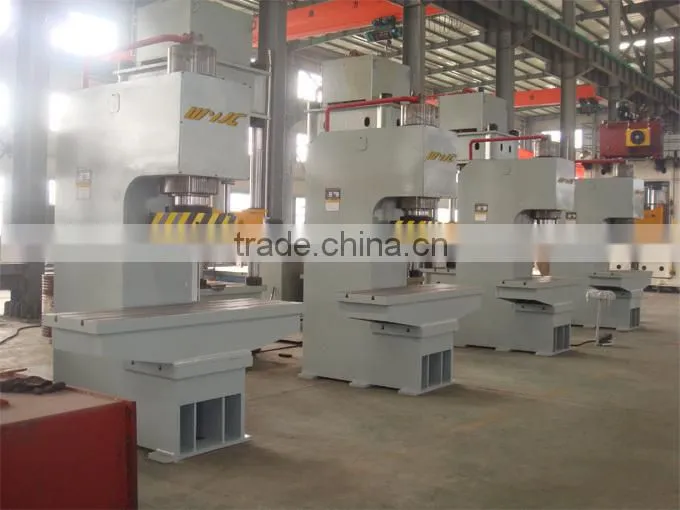

Y41-63 Single column hydraulic punch press for sheet metal stamping
- 20 Unit / Units per Month
- Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Anhui, China | Brand Name: | WYJC | Model Number: | Y41-63 |
Voltage: | 380v | Power(W): | 5.5KW | Weight: | 3.4ton |
Dimension(L*W*H): | 2600*1600*700mm | Certification: | ISO9001, CE | Warranty: | 1 year |
After-sales Service Provided: | No overseas service provided |
Product Description

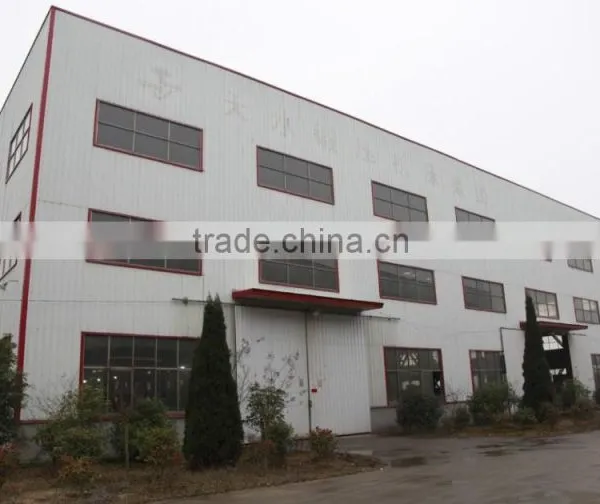

Anhui Wuyang Tool Machine Manufacturing Ltd. is located in the Chu&Han Cultural city which named Maanshan. The company was established in 2005, has nearly 10 years experience of production. Our company covers an area of 30000 square meters, including production building area of nearly 15000 square meters; and our company existing more than 120 staff, which including 20 people that got the bachelor degree, and technical personnel 65 persons. Under the perfect cooperation of high technology team and complete manufacturing equipment, our company’s products performance and quality have reached the international advanced level.
From 2011, our company was built a joint venture with Tianshui Forging machine tool (group) co., Ltd. to produce multi-function hydraulic press, three beam four column hydraulic press, gantry hydraulic press, double column hydraulic press, fast hydraulic press, shearing machine, forging machine tool, punching machine and so on. All technical talents are made by Tianshui group head office stationed. Our company adhering to advantage of the talent technical and is committed to the development and production of various models hydraulic press, of which the factory have produced and exported many sets of hydraulic press independently so far. In 2014, our company passed ISO9001 quality management system certification.

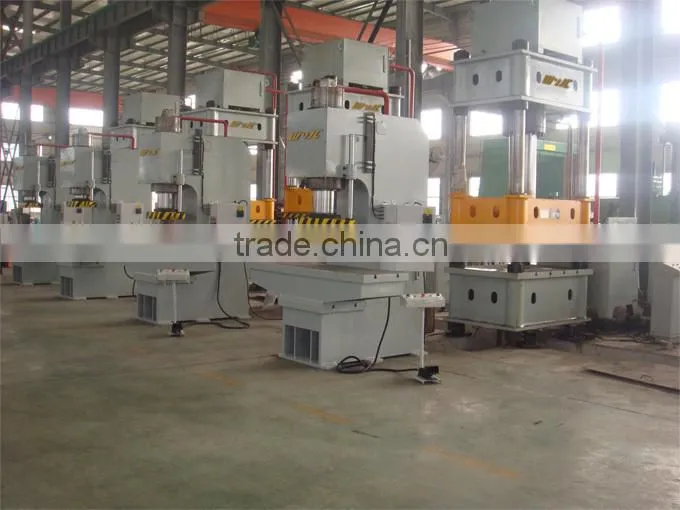

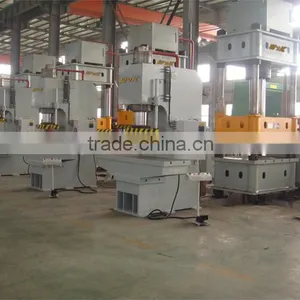

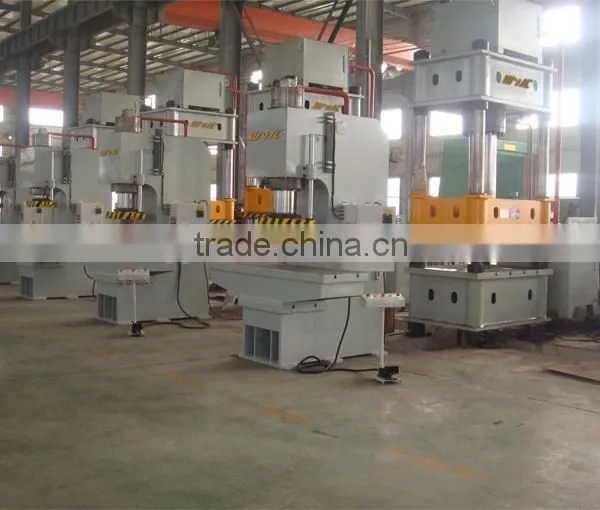

This series of hydraulic press machine has the long table,deep throat,big daylight,speed is fast,in-outmaterials convenient ,adjustment and reliable accurate,complete function,operation simple and so on characteristic
Adjusting table,pressure maintaining function,photoelectric protection
This series of hydraulic press arewidely used in machinery manufacturing and mounting,adjustment,drawing,bending field,is the qutomobile,engineering machinery,railway,locomotives,metallurgical machinery,electric power,petroleum machinery and ship machinery industries must be equiped imporeant equipment.
Technical Parameters | |||
Item | Unit | Y41-63 | |
Nominal force | KN | 630 | |
Throat depth | mm | 32 | |
The maximum opening height | mm | 700 | |
Pressure head travel | mm | 500 | |
Length of worktable | L-R | mm | 580 |
F-B | mm | 560 | |
Pressure head speed | Descent | mm/s | 38 |
Pressing | mm/s | 10 | |
Return | mm/s | 95 | |
Overall dimension | L-R | mm | 700 |
F-B | mm | 1600 | |
Hight above floor | mm | 2600 | |
Table hight above floor | mm | 750 | |
Main motor power | KW | 5.5 |
Our press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
