1. Low power consumption, high sealing, reduce the production cost.
2. The structure is simple, the operation is simple.
3. Full-scale security protection and noise reduction processing, provides the high quality production environment.
Proportional regulation for slide speed
Moving table
Light curtain safety device
Oil heating/cooling unit
Die protection unit
Displacement sensor
Die exchange cart
Industrial touting screen monitor
Upper ejector (hydraulic or mechanical type)
Floating guide-way and rolling bracket for die exchange
Working area lighting
Power socket
Hydraulic driving system upon upper platform
Slide upper locking device
cutting dampening system
Imported PLC
- Quick die clamping device
Thes series of hydraulic presses are used for metal drawing, bending, flanging, cold extrusion, blanking or punching and so on. The press machine also applies to adjusting, pressing and forming for all kinds of powder and plastic products.
Technical Parameters | |||
Item |
Unit |
Y32-2000 |
|
Nominal pressure |
KN |
20000 |
|
Knockout force |
KN |
3150 |
|
Daylight |
mm |
1800 |
|
Slide stroke |
mm |
1200 |
|
Knockout stroke |
mm |
450 |
|
Speed of slide |
Descent |
mm/s |
>150 |
Pressiug |
mm/s |
4-10 |
|
Return |
mm/s |
60 |
|
Table area |
L-R |
mm |
2500 |
F-B |
mm |
2000 |
|
Table hight above fioor |
mm |
200 |
|
Overall dimension |
L-R |
mm |
6870 |
F-B |
mm |
2500 |
|
Hight above fioor |
mm |
7500 |
|
Motor power |
KW |
90 |
|

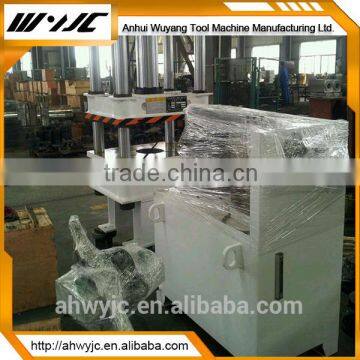

Our press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
