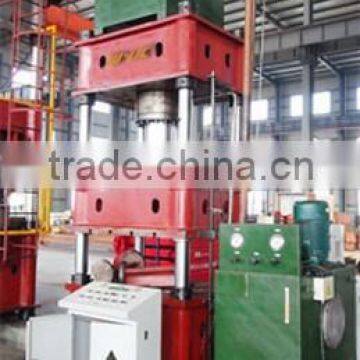

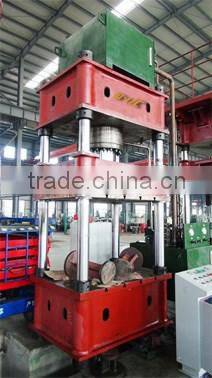

Help CenterY32-630 Four Column Hydraulic Punch Machine With ISO/CE Certification and Competitive Pric
Related Products
-
Y32-1000 Four Column Hydraulic Punch Machine With ISO/CE Certification and Competitive PriceUS$ 115,150 - 115,160MOQ: 1 Unit -
Y32-63 Four-column Punch Machine Main Technical Parameters Punch PressUS$ 7,400 - 7,450MOQ: 1 Unit
-
Y32-100 Four-column Punch Machine Main Technical Parameters Punch PressUS$ 9,070 - 9,100MOQ: 1 Unit
-
Y32-160 Four-column Punch Machine Main Technical Parameters Punch PressUS$ 13,450 - 13,460MOQ: 1 Unit
-
Y32-200 Four-column Punch Machine Main Technical Parameters Punch PressUS$ 15,170 - 15,180MOQ: 1 Unit
1. Low power consumption, high sealing, reduce the production cost.
2. The structure is simple, the operation is simple.
3. Full-scale security protection and noise reduction processing, provides the high quality production environment.
Cutting dampening system
Proportional regulation for slide speed
Moving table
Light curtain safety device
Oil heating/cooling unit
Die protection unit
Displacement sensor
Die exchange cart
Industrial touting screen monitor
Upper ejector (hydraulic or mechanical type)
Floating guide-way and rolling bracket for die exchange
Working area lighting
Power socket
Hydraulic driving system upon upper platform
Quick die clamping device
Importer PLC
Slide upper locking device
This series of hydraulic press used for metal drawing, bending, flanging, cold extrusion, blanking or punching and so on. The press machine also applies to adjusting, pressing and forming for all kinds of powder and plastic products.
Technical Parameters | |||
Item |
Unit |
Y32-630 |
|
Nominal pressure |
KN |
6300 |
|
Knockout force |
KN |
1600 |
|
Daylight |
mm |
1500 |
|
Slide stroke |
mm |
900 |
|
Knockout stroke |
mm |
360 |
|
Speed of slide |
Descent |
mm/s |
>100 |
Pressiug |
mm/s |
5-12 |
|
Return |
mm/s |
60 |
|
Table area |
L-R |
mm |
1600 |
F-B |
mm |
1600 |
|
Table hight above fioor |
mm |
500 |
|
Overall dimension |
L-R |
mm |
3600 |
F-B |
mm |
1800 |
|
Hight above fioor |
mm |
5300 |
|
Motor power |
KW |
44 |
|
Our press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
