Y32-800 Four column hydraulic press machine
1.Product information
Features:
1. Four-post structure, Frame type structure, collaborative guiding system.
2. Fault diagnosis function.
3. Comprehensive security protection to ensure the safe production.
Optional:
Cutting dampening system
Moving table
Light curtain safety device
Oil heating/cooling unit
Die protection unit
Displacement sensor
Die exchange cart
Industrial touting screen monitor
Floating guide-way and rolling bracket for die exchange
Working area lighting
Power socket
Hydraulic driving system upon upper platform
Quick die clamping device
Importer PLC
Slide upper locking device

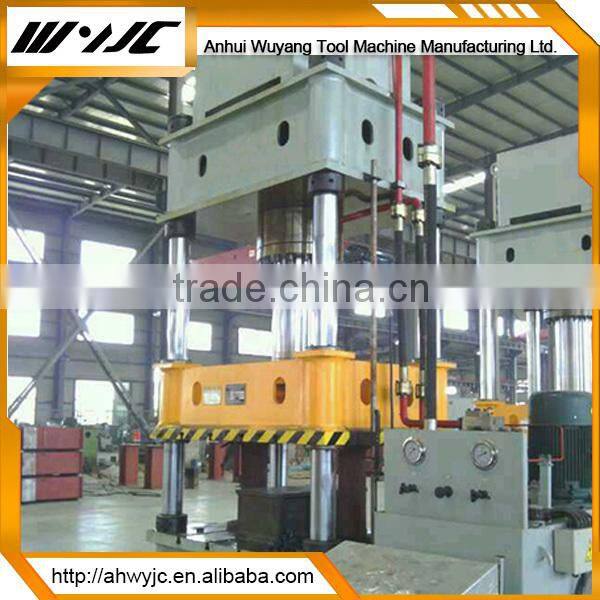

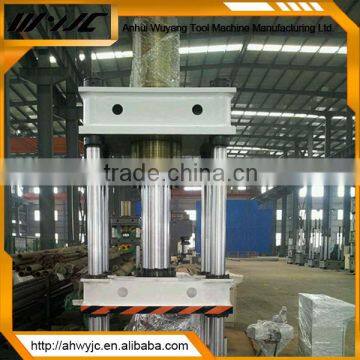

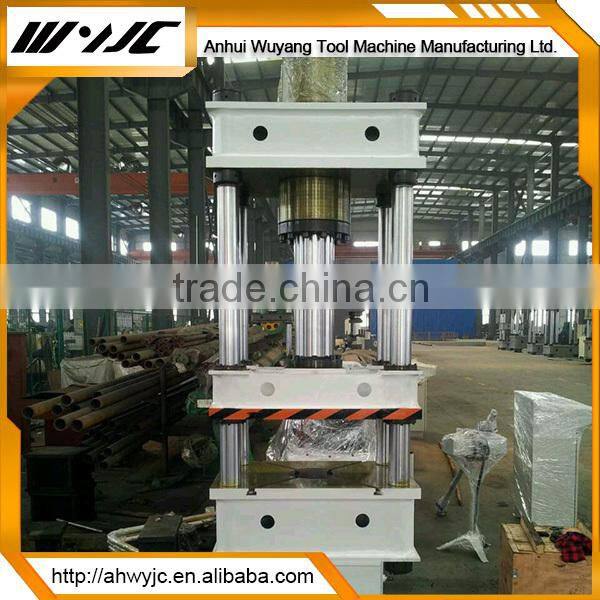

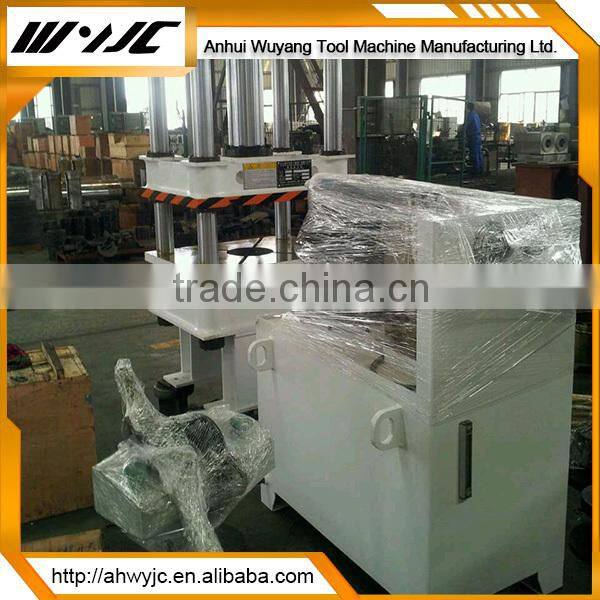

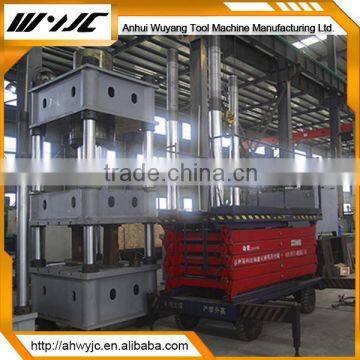

2.Product pictures
3.Application Fields
This series of hydraulic press used for metal drawing.bending,flanging,cold extrusion.
blanking or punching and so on.The press machine also applies to adjusting,pressing and
forming for all kinds of powder and plastic products.
4. technical parameters
Technical Parameters | |||||||
Item |
Unit |
Y32-63 |
Y32-100 |
Y32-160 |
Y32-200 |
Y32-315 |
|
Nominal pressure |
KN |
630 |
630 |
1000 |
2000 |
3150 |
|
Knockout force |
KN |
160 |
160 |
250 |
400 |
630 |
|
Daylight |
mm |
800 |
800 |
800 |
1120 |
1250 |
|
Slide stroke |
mm |
500 |
500 |
500 |
710 |
800 |
|
Knockout stroke |
mm |
200 |
200 |
200 |
250 |
300 |
|
Speed of slide |
Descent |
mm/s |
40 |
40 |
38 |
80 |
120 |
Pressiug |
mm/s |
7 |
7 |
10 |
5-12 |
5-12 |
|
Return |
mm/s |
580 |
580 |
70 |
70 |
65 |
|
Table area |
L-R |
mm |
550 |
550 |
630 |
900 |
1200 |
F-B |
mm |
630 |
630 |
630 |
900 |
1200 |
|
Table hight above fioor |
mm |
700 |
700 |
700 |
550 |
700 |
|
Overall dimension |
L-R |
mm |
2370 |
2370 |
2200 |
2450 |
2830 |
F-B |
mm |
900 |
900 |
1200 |
1300 |
1500 |
|
Hight above fioor |
mm |
2770 |
2770 |
1800 |
3650 |
4300 |
|
Motor power |
KW |
7.58 |
7.5 |
11 |
15 |
22 |
|
Technical Parameters | |||||||
Item |
Unit |
Y32-400 |
Y32-500 |
Y32-630 |
Y32-800 |
Y32-1000 |
|
Nominal pressure |
KN |
4000 |
5000 |
6300 |
8000 |
10000 |
|
Knockout force |
KN |
630 |
1000 |
1600 |
2000 |
2000 |
|
Daylight |
mm |
1250 |
1500 |
1500 |
1500 |
1600 |
|
Slide stroke |
mm |
800 |
900 |
900 |
900 |
1000 |
|
Knockout stroke |
mm |
300 |
3600 |
360 |
360 |
450 |
|
Speed of slide |
Descent |
mm/s |
100 |
>100 |
>100 |
>100 |
>150 |
Pressiug |
mm/s |
4-10 |
4-10 |
5-12 |
5-12 |
4-10 |
|
Return |
mm/s |
50 |
50 |
60 |
90 |
100 |
|
Table area |
L-R |
mm |
1200 |
1400 |
1600 |
2000 |
2000 |
F-B |
mm |
1200 |
1400 |
1600 |
1600 |
1800 |
|
Table hight above fioor |
mm |
700 |
715 |
500 |
300 |
300 |
|
Overall dimension |
L-R |
mm |
2850 |
3300 |
3600 |
4800 |
7010 |
F-B |
mm |
1500 |
1500 |
1800 |
2854 |
3000 |
|
Hight above fioor |
mm |
4400 |
5400 |
5300 |
5400 |
5740 |
|
Motor power |
KW |
22 |
22 |
44 |
60 |
60 |
|
Technical Parameters | |||||||
Item |
Unit |
Y32-1250 |
Y32-1600 |
Y32-2000 |
Y32-2500 |
Y32-3000 |
|
Nominal pressure |
KN |
12500 |
16000 |
20000 |
25000 |
30000 |
|
Knockout force |
KN |
2000 |
2500 |
3150 |
4000 |
5000 |
|
Daylight |
mm |
1500 |
1600 |
1800 |
2000 |
2000 |
|
Slide stroke |
mm |
900 |
1000 |
1200 |
1200 |
1200 |
|
Knockout stroke |
mm |
400 |
450 |
450 |
500 |
500 |
|
Speed of slide |
Descent |
mm/s |
>150 |
>150 |
>150 |
>150 |
>150 |
Pressiug |
mm/s |
4-10 |
4-10 |
4-10 |
4-10 |
5-12 |
|
Return |
mm/s |
85 |
>100 |
60 |
≥100 |
120 |
|
Table area |
L-R |
mm |
2500 |
2500 |
2500 |
3000 |
4000 |
F-B |
mm |
2000 |
2000 |
2000 |
2500 |
2600 |
|
Table hight above fioor |
mm |
200 |
200 |
200 |
200 |
200 |
|
Overall dimension |
L-R |
mm |
5890 |
6500 |
6870 |
7630 |
8530 |
F-B |
mm |
3450 |
3900 |
2500 |
5000 |
4000 |
|
Hight above fioor |
mm |
6980 |
7500 |
7500 |
7840 |
8500 |
|
Motor power |
KW |
60 |
70 |
90 |
120 |
170 |
|

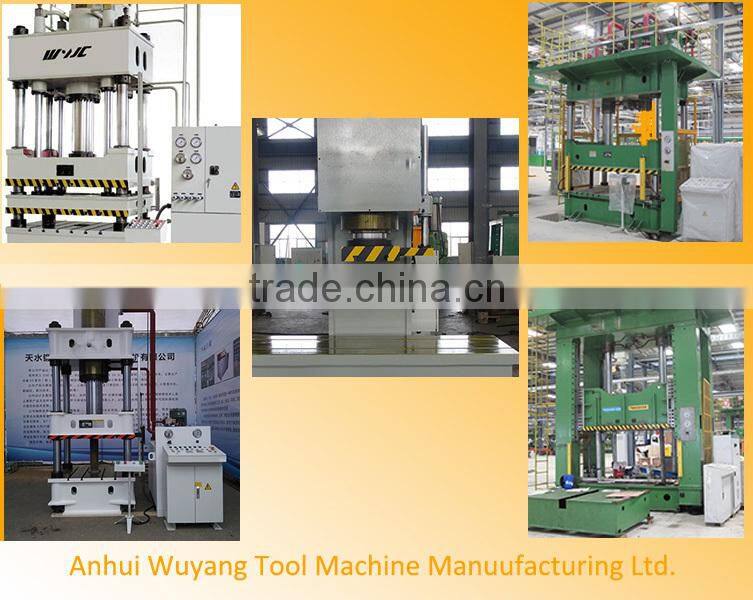

5.More Products
1.About Wuyang
Anhui Wuyang Tool Machine Manufacturing Ltd. is located in the Chu&Han Cultural city which named Maanshan. The company was established in 2005, has nearly 10 years experience of production. Our company covers an area of 30000 square meters, including production building area of nearly 15000 square meters; and our company existing more than 120 staff, which including 20 people that got the bachelor degree, and technical personnel 65 persons. Under the perfect cooperation of high technology team and complete manufacturing equipment, our company’s products performance and quality have reached the international advanced level.
From 2011, our company was built a joint venture with Tianshui Forging machine tool (group) co., Ltd. to produce multi-function hydraulic press, three beam four column hydraulic press, gantry hydraulic press, double column hydraulic press, fast hydraulic press, shearing machine, forging machine tool, punching machine and so on. All technical talents are made by Tianshui group head office stationed. Our company adhering to advantage of the talent technical and is committed to the development and production of various models hydraulic press, of which the factory have produced and exported many sets of hydraulic press independently so far. In 2014, our company passed ISO9001 quality management system certification.

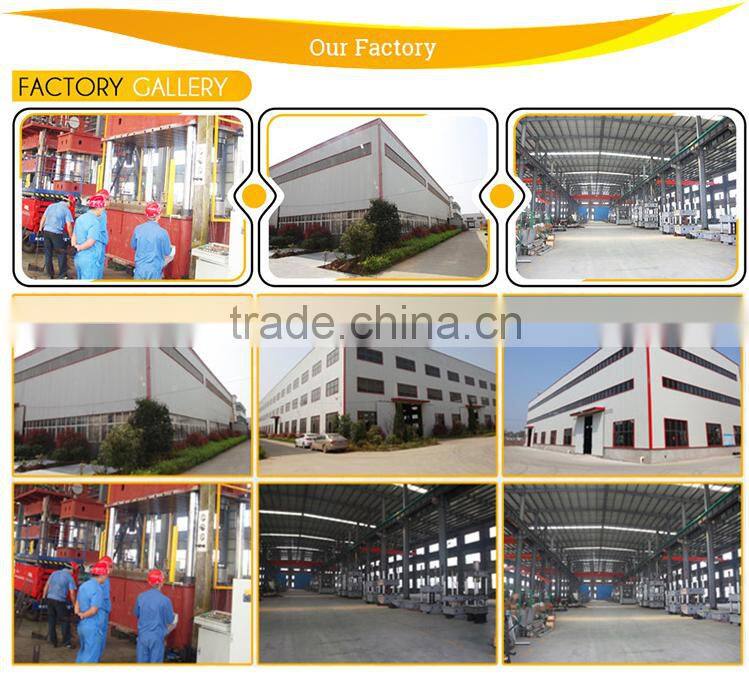

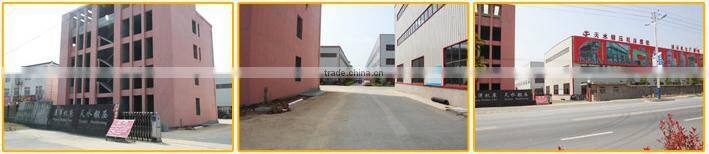

2. Our factory
3. Certificate&Exhibition
4. Market
Contact Us
FAQ:
Q: What’s your payment terms and delivery time?
A: Our payment terms: L/C, D/A, D/P, T/T, Western Union, Money Gram. As for the delivery time, it’s depended on your required model of the machine.
Q: What’s the difference between Y27 series single action hydraulic press machine and Y28 series double action hydraulic press machine?
A: Y28 series are suitable for metal sheet twice stretch forming, can meet multi-plane with complex structure pressing. Y27 series are suitable for metal sheet once stretch forming.
Q: What’s the difference between Y41 series single column hydraulic press machine and Y32 series four column hydraulic press machine?
A: Y41 series are widely used in machinery manufacturing and mounting, adjustment, drawing, bending field, Y32 series are mainly used for metal drawing, bending, flanging, cold extrusion, blanking or punching and so on.
Q: How to choose the suitable hydraulic press machine?
A: According to the parameters of machined parts, calculate the model and various parameters of your required hydraulic press machine, then you can ensure the suitable hydraulic press machine and technical proposal. (Our factory can supply a co mplete technical proposal according to the customer’s requirements.)
