Help CenterY27-250 Single-action Hydraulic Press Single-action for Sheet Metal Drawing Stamping, Hydraulic Press Machine
Related Products
-
YD27-630 Single-action Hydraulic Press Single-action for Sheet Metal Drawing StampingUS$ 79,650 - 79,660MOQ: 1 Unit -
Y27-200 Sheet Metal Manufacturer of Single Action Punch MachineUS$ 23,558 - 23,568MOQ: 1 Unit
-
Y27-400 Sheet Metal Manufacturer of Single Action Punch MachineUS$ 40,500 - 40,510MOQ: 1 Unit
-
Y27-500 Sheet Metal Manufacturer of Single Action Punch Machine, Hydraulic Pressing MachineUS$ 54,320 - 54,350MOQ: 1 Unit
-
Y27-800 Sheet Metal Manufacturer of Single Action Punch Machine, Pressing MachineUS$ 182,435 - 182,440MOQ: 1 Unit

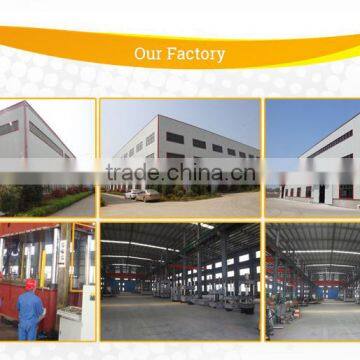

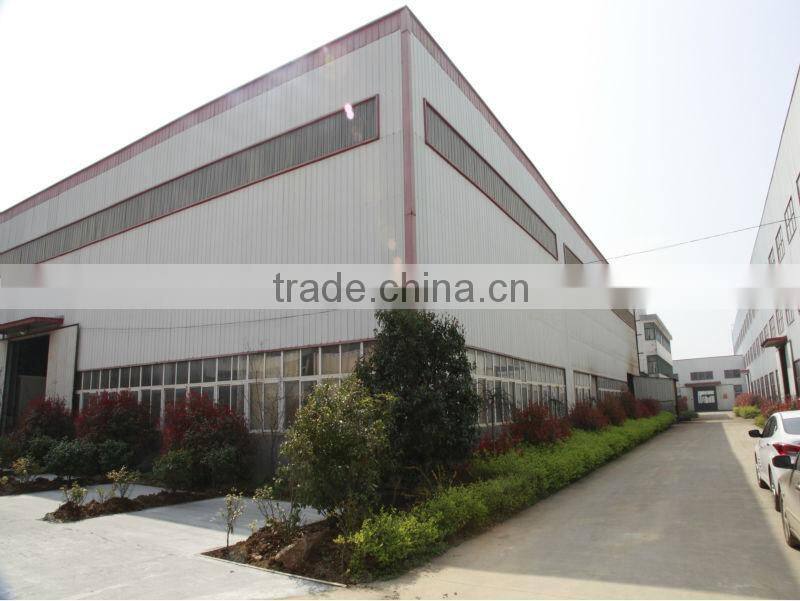

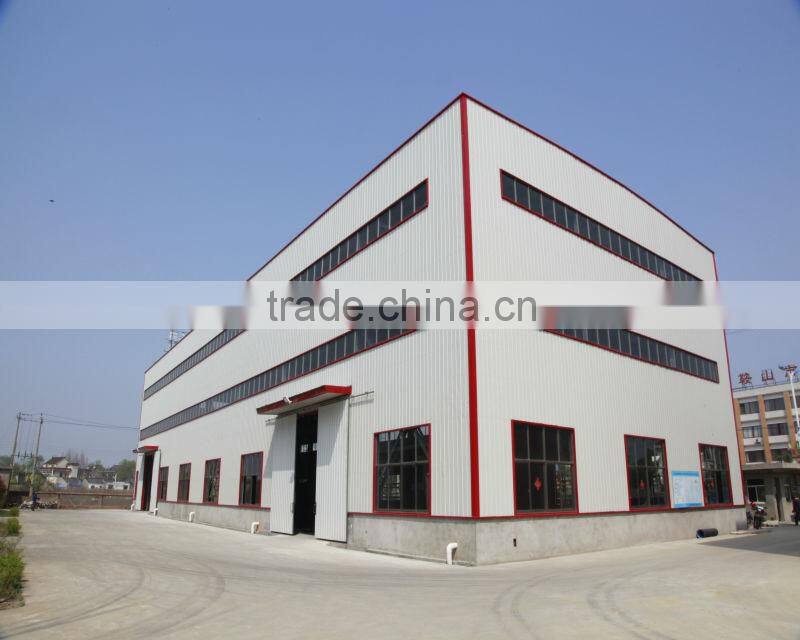

Anhui Wuyang Tool Machine Manufacturing Ltd. is located in the Chu&Han Cultural city which named Maanshan. The company was established in 2005, has nearly 10 years experience of production. Our company covers an area of 30000 square meters, including production building area of nearly 15000 square meters; and our company existing more than 120 staff, which including 20 people that got the bachelor degree, and technical personnel 65 persons. Under the perfect cooperation of high technology team and complete manufacturing equipment, our company’s products performance and quality have reached the international advanced level.
From 2011, our company was built a joint venture with Tianshui Forging machine tool (group) co., Ltd. to produce multi-function hydraulic press, three beam four column hydraulic press, gantry hydraulic press, double column hydraulic press, fast hydraulic press, shearing machine, forging machine tool, punching machine and so on. All technical talents are made by Tianshui group head office stationed. Our company adhering to advantage of the talent technical and is committed to the development and production of various models hydraulic press, of which the factory have produced and exported many sets of hydraulic press independently so far. In 2014, our company passed ISO9001 quality management system certification.

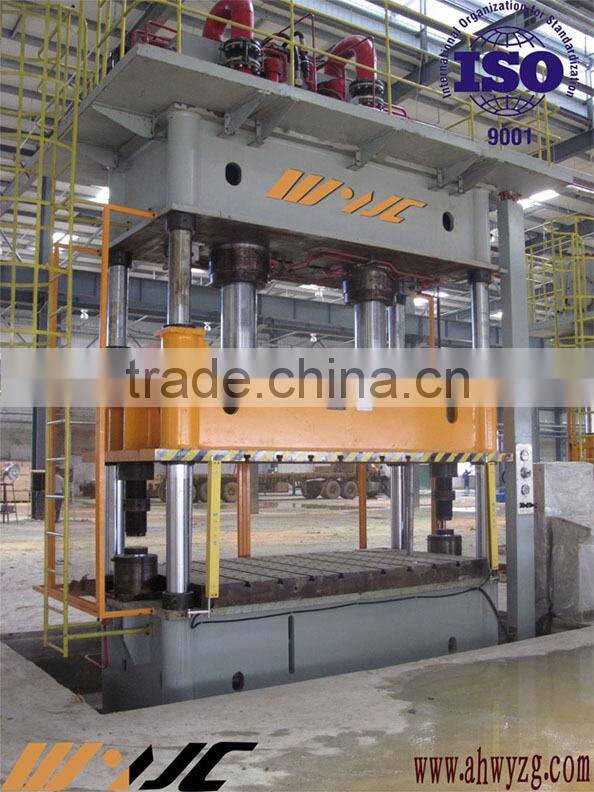

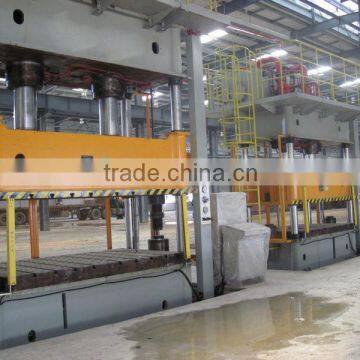

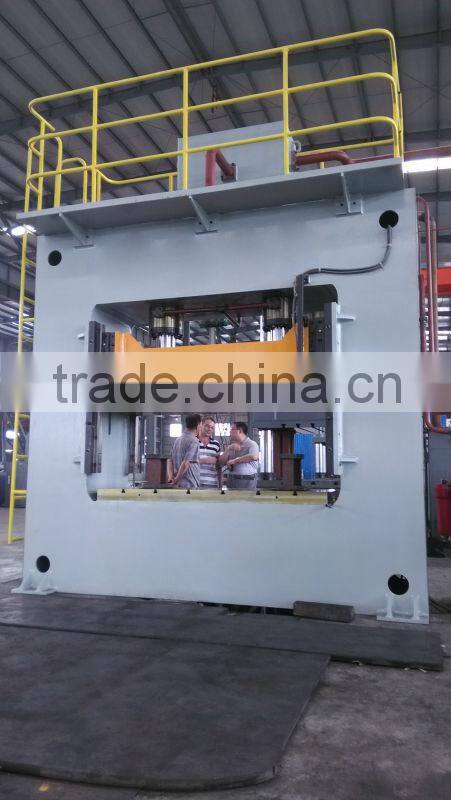

1. Four-post structure, Frame type structure, collaborative guiding system.
2. Fault diagnosis function.
3. Comprehensive security protection to ensure the safe production.
Cutting dampening system
Moving table
Light curtain safety device
Oil heating/cooling unit
Die protection unit
Displacement sensor
Die exchange cart
Industrial touting screen monitor
Floating guide-way and rolling bracket for die exchange
Working area lighting
Power socket
Hydraulic driving system upon upper platform
Slide upper locking device
Quick die clamping device
Imported PLC
The machine is mainly used for sheet drawing bending and forming.it applicable to the following fields;
1.car body parts,brake piece,oil tank,chassic,bridge shell,bumper,
2.household electric appliance:washing machine parts,electric rice cooker parts,refrigerator parts ,ets;
3.kitchen utensils:washing tank,pot of equipment,stainless steel utensils,various other containers:
4.other:agricultural implement and macinery,motorcycle,aerospace
Technical Parameters | |||
Item |
Unit |
Y27-250 |
|
Nominal force |
KN |
2500 |
|
Return force |
Mpa |
400 |
|
Working pressure |
KN |
25 |
|
Cushion pressure |
Mm |
400 |
|
Daylight of slide |
Mm |
1120 |
|
stroke |
Upper slide |
Mm |
710 |
Cushion |
Mm |
250 |
|
|
Table size |
L-R |
Mm |
1000 |
F-B |
Mm |
1000 |
|
Cushion size |
L-R |
Mm |
700 |
F-B |
Mm |
600 |
|
|
Speed of slide |
Descent |
Mm/s |
100 |
Pressing |
Mm/s |
4-10 |
|
Return |
Mm/s |
60 |
|
Table hight above floor |
Mm |
700 |
|
Overall dimensions |
L-R |
Mm |
2600 |
F-B |
Mm |
1300 |
|
Motor power |
KW |
15 |
|
Our press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
