Sheet Stamping Hydraulic Press Machine mechanical press
- 20 Unit / Units per Month
- Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Anhui, China | Brand Name: | WYJC | Model Number: | Y29 |
Voltage: | Unknown | Power(W): | 45KW~99KW | Weight: | 40ton~200ton |
Dimension(L*W*H): | 2790*2640*5010~3650*1500*5700 | Certification: | ISO9001, CE | Warranty: | 2 years |
After-sales Service Provided: | No overseas service provided |
Product Description
Tips: The price of this machine will varies with change of size. Please quote with size.

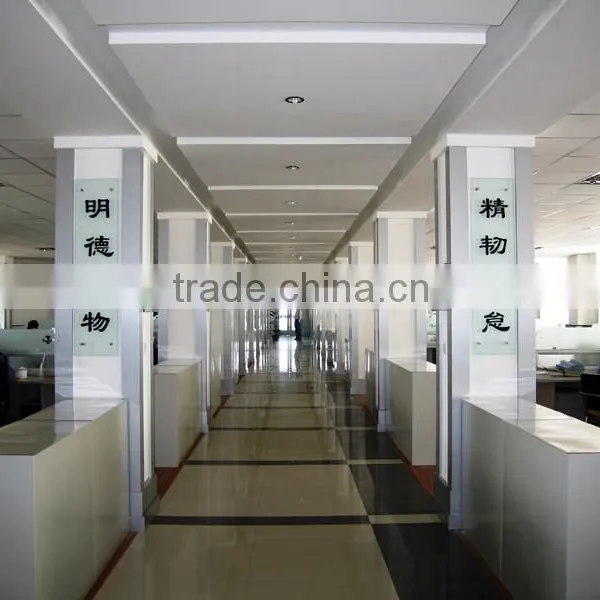

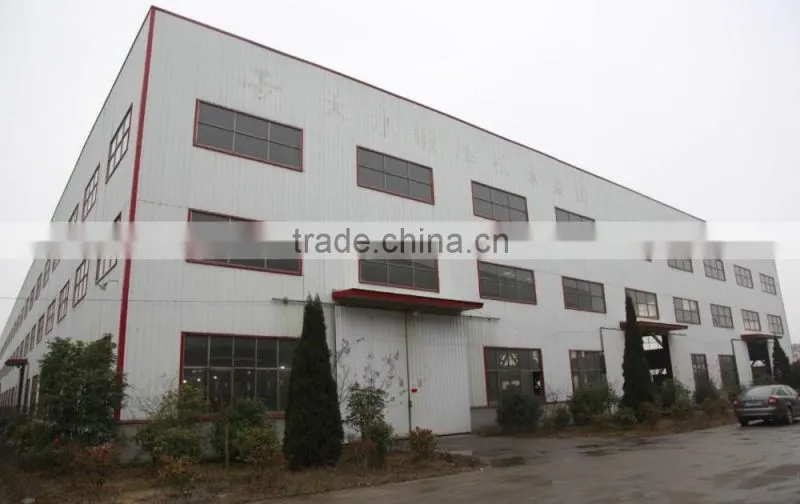

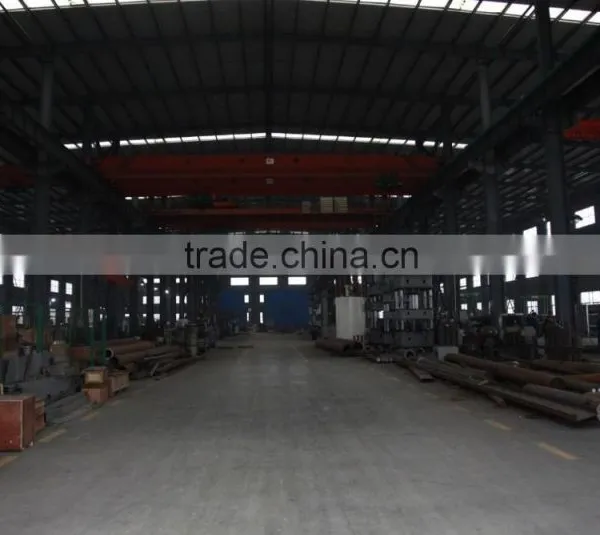

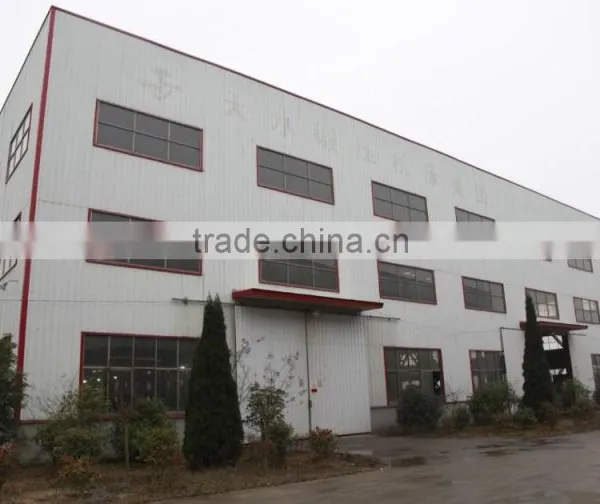

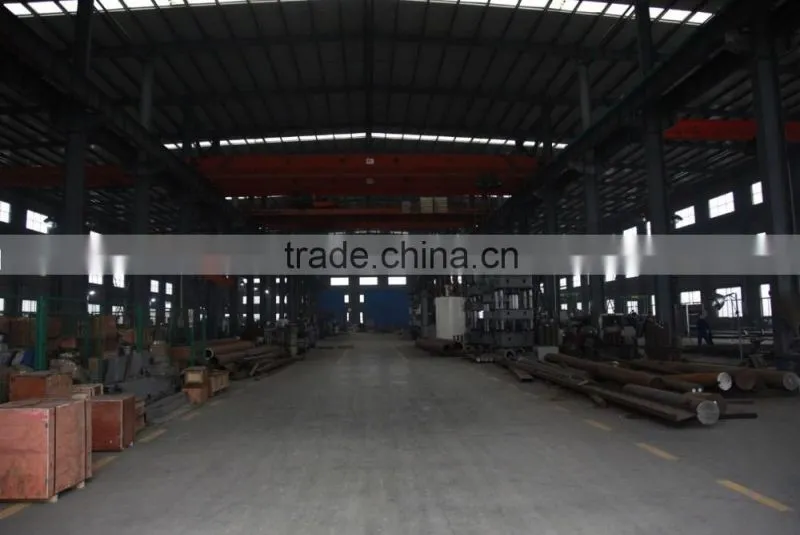

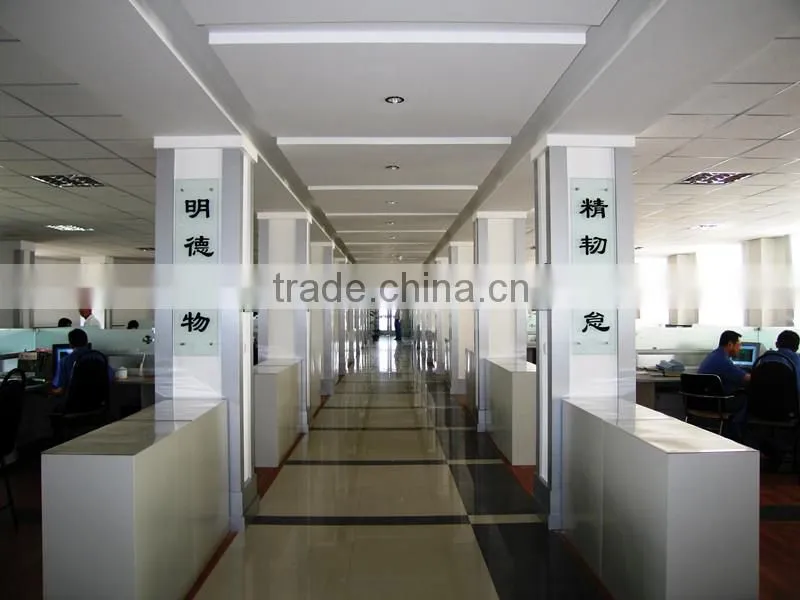

Anhui Wuyang Tool Machine Manufacturing Ltd. is located in the Chu&Han Cultural city which named Maanshan. The company was established in 2005, has nearly 10 years experience of production. Our company covers an area of 30000 square meters, including production building area of nearly 15000 square meters; and our company existing more than 120 staff, which including 20 people that got the bachelor degree, and technical personnel 65 persons. Under the perfect cooperation of high technology team and complete manufacturing equipment, our company’s products performance and quality have reached the international advanced level.
From 2011, our company was built a joint venture with Tianshui Forging machine tool (group) co., Ltd. to produce multi-function hydraulic press, three beam four column hydraulic press, gantry hydraulic press, double column hydraulic press, fast hydraulic press, shearing machine, forging machine tool, punching machine and so on. All technical talents are made by Tianshui group head office stationed. Our company adhering to advantage of the talent technical and is committed to the development and production of various models hydraulic press, of which the factory have produced and exported many sets of hydraulic press independently so far. In 2014, our company passed ISO9001 quality management system certification.

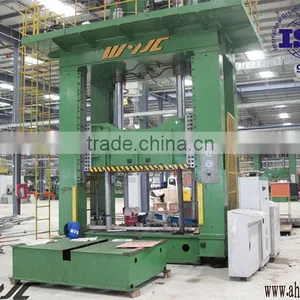

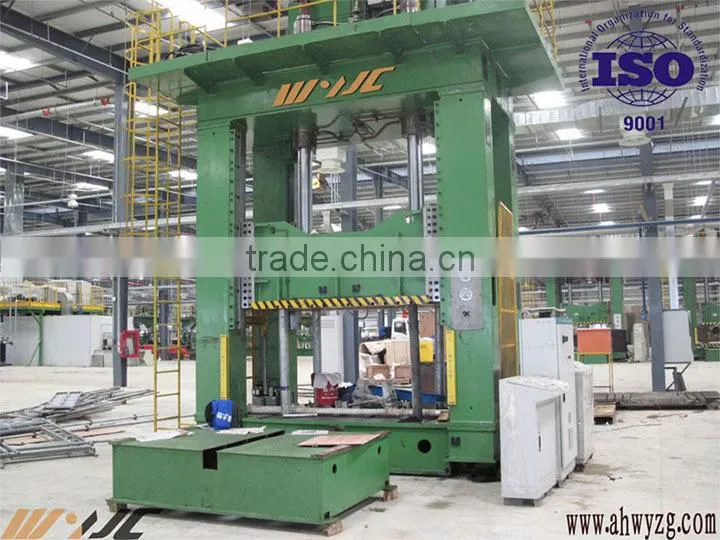

Sheet Stamping Hydraulic Press Machine mechanical press
1.Hydraulic system adopts the cartridge valve control,the movement is nimble and reliable.
2.PLC control,realizable the adjustment,both hands single cycle.
3.Achievable machines linkage,synchronous high precision.
Cutting dampening system
Proportional regulation for slide speed
Moving table
Light curtain safety device
Oil heating/cooling unit
Die protection unit
Displacement sensor
Die exchange cart
Industrial touting screen monitor
Floating guide-way and rolling bracket for die exchange
Working area lighting
Power socket
Hydraulic driving system upon upper platform
Quick die clamping device
Importer PLC
Slide upper locking device
This series of hydraulic press is mainly suitable for various types of vehicle longitudinal beam,molding and blanking punch,also can be used to other metallic pressing,molding,bending.
Technical parameters | ||||||||||
Item | Unit | 160H | 200HI | 250HA | 250HB<BI> | 315 | 315HA | 315HB | 315HC | |
Nominal pressure | KN | 1600 | 2000 | 2500 | 2500 | 3150 | 3150 | 3150 | 3150 | |
Cushion pressure | KN | 630 | 400 | - | 1250/540 | 1600 | 1250 | 1250 | 1600 | |
Daylight | mm | 1220 | 980 | 1800 | 900 | 1000 | 1500 | 1500 | 1000 | |
Slide max stroke | mm | 710 | 500 | 1200 | 520 | 500 | 900 | 900 | 600 | |
Cushion max stroke | mm | 300 | 280 | - | 250 | 200 | 300 | 300 | 300 | |
Table removed maximum stroke | mm | - | - | - | - | - | 1700 | 1700 | - | |
Speed of slide | Descent | mm/s | 350 | 360 | 400 | 320 | 300 | 400 | 400 | 280 |
Pressing | mm/s | 10-33 | 36-16 | 40-16 | 11-28 | - | 13-45 | 13-45 | 12-30 | |
Return | mm/s | 270 | 300 | 200 | 250 | 400 | 310 | 310 | 280 | |
Tadle size | L-R | mm | 1300 | 1600 | 2500 | 900 | 13-45 | 2200 | 2500 | 1600 |
F-B | mm | 1000 | 1400 | 2000 | 900 | 310 | 1600 | 1600 | 1400 | |
Cushion size | L-R | mm | 950 | 1250 | - | 750 | 1300/1600 | 1550 | 1850 | 1250 |
F-B | mm | 650 | 950 | - | 550 | 950/1250 | 1050 | 1050 | 950 | |
Overall dimension | L-R | mm | 2790 | 2580 | 3540 | 4500 | 6090/3410 | 3350 | 3650 | 2650 |
F-B | mm | 2640 | 233 | 3200 | 2350 | 2960/6080 | 2785 | 2785 | 1350 | |
Total hight | mm | 510 | 4770 1800 underground on the ground | 6090 580 underground on the ground | 4220 850 underground on the ground | 5680/6080 | 4930 650 underground on the ground | 6275 2800underground on the ground | 6275 2800 underground on the ground | |
Motor power | Kw | 45 | 5858 | 78.5 | 64.5 | 83.5 | 69 | 99 | 99 |
Technical parameters | |||||
Item | Unit | 315HD | 360H | 400 | |
Nominal pressure | KN | 3150 | 3600 | 4000 | |
Cushion pressure | KN | 1600 | 1250 | 1500 | |
Daylight | mm | 1000 | 1260 | 1400 | |
Slide max stroke | mm | 600 | 710 | 900 | |
Cushion max stroke | mm | 300 | 300 | 400 | |
Table removed maximum stroke | mm | - | 1250 | - | |
Speed of slide | Descent | mm/s | 280 | 300 | 400 |
Pressing | mm/s | 12-30 | 11-28 | 20-45 | |
Return | mm/s | 280 | 180 | 400 | |
Tadle size | L-R | mm | 1600 | 2500 | 2500 |
F-B | mm | 1400 | 1250 | 1500 | |
Cushion size | L-R | mm | 1250 | 1250 | 2000 |
F-B | mm | 950 | 850 | 1100 | |
Overall dimension | L-R | mm | 2650 | 4480 | 3650 |
F-B | mm | 1350 | 2750 | 1500 | |
Total hight | mm | 4400 920 underground on the ground | 5100 1900 underground on the ground | 5700 1800 underground on the ground | |
Motor power | Kw | 60 | 95 | 88 |
Our hydraulic press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
