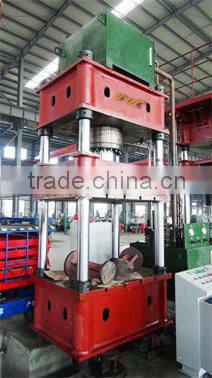

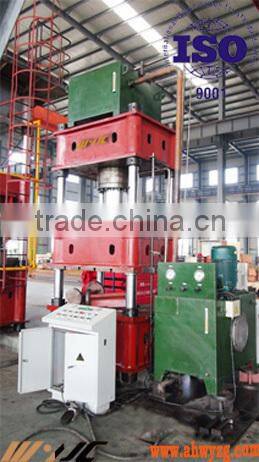

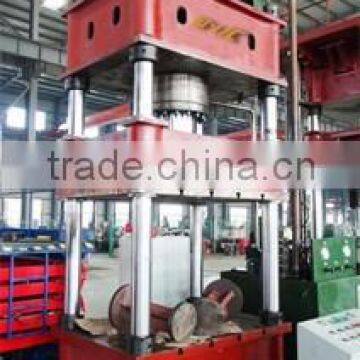

Y32 Hydraulic Drawing Press Machine Punch Press

Name: Y32 Hydraulic Drawing Press Machine Punch Press
Brand: WYJC
SKU: 107536367
Availability: InStock

Y32 Hydraulic Drawing Press Machine Punch Press thumbnail-1

Y32 Hydraulic Drawing Press Machine Punch Press thumbnail-2

Y32 Hydraulic Drawing Press Machine Punch Press thumbnail-3

Y32 Hydraulic Drawing Press Machine Punch Press thumbnail-4

Y32 Hydraulic Drawing Press Machine Punch Press photo-1

Y32 Hydraulic Drawing Press Machine Punch Press photo-2

Y32 Hydraulic Drawing Press Machine Punch Press photo-3

Y32 Hydraulic Drawing Press Machine Punch Press photo-4

US$ 9,550 - 432,200 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Contact Supplier Request Quote Chat Now

Anhui Wuyang Tool Machine Manufacturing Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Power Source Hydraulic

Place of Origin Anhui, China

Brand Name WYJC

Model Number Y32

Voltage 380V

Power(W) 7.5KW~90KW

Weight 1.8ton~140ton

Dimension(L*W*H) 2370*900*2770~6870*2500*7500

Certification ISO9001, CE

Warranty 1 year

After-sales Service Provided No overseas service provided

Features

1. Low power consumption, high sealing, reduce the production cost.

2. The structure is simple, the operation is simple.

3. Full-scale security protection and noise reduction processing, provides the high quality production environment.

Optional

Cutting dampening system
Proportional regulation for slide speed
Moving table
Light curtain safety device
Oil heating/cooling unit
Die protection unit
Displacement sensor
Die exchange cart
Industrial touting screen monitor
Upper ejector (hydraulic or mechanical type)
Floating guide-way and rolling bracket for die exchange
Working area lighting
Power socket
Hydraulic driving system upon upper platform
Quick die clamping device
Importer PLC
Slide upper locking device

Application Fields

This series of hydraulic press used for metal drawing, bending, flanging, cold extrusion, blanking or punching and so on. The press machine also applies to adjusting, pressing and forming for all kinds of powder and plastic products.

Technical Parameters

Technical Parameters
Item		Unit	Y32-63	Y32-100	Y32-160	Y32-200	Y32-315
Nominal pressure		KN	630	630	1000	2000	3150
Knockout force		KN	160	160	250	400	630
Daylight		mm	800	800	800	1120	1250
Slide stroke		mm	500	500	500	710	800
Knockout stroke		mm	200	200	200	250	300
Speed of slide	Descent	mm/s	40	40	38	80	120
	Pressiug	mm/s	7	7	10	5-12	5-12
	Return	mm/s	580	580	70	70	65
Table area	L-R	mm	550	550	630	900	1200
Table area	F-B	mm	630	630	630	900	1200
Table hight above fioor		mm	700	700	700	550	700
Overall dimension	L-R	mm	2370	2370	2200	2450	2830
	F-B	mm	900	900	1200	1300	1500
	Hight above fioor	mm	2770	2770	1800	3650	4300
Motor power		KW	7.58	7.5	11	15	22

Technical Parameters
Item		Unit	Y32-400	Y32-500	Y32-630	Y32-800	Y32-1000
Nominal pressure		KN	4000	5000	6300	8000	10000
Knockout force		KN	630	1000	1600	2000	2000
Daylight		mm	1250	1500	1500	1500	1600
Slide stroke		mm	800	900	900	900	1000
Knockout stroke		mm	300	3600	360	360	450
Speed of slide	Descent	mm/s	100	>100	>100	>100	>150
	Pressiug	mm/s	4-10	4-10	5-12	5-12	4-10
	Return	mm/s	50	50	60	90	100
Table area	L-R	mm	1200	1400	1600	2000	2000
Table area	F-B	mm	1200	1400	1600	1600	1800
Table hight above fioor		mm	700	715	500	300	300
Overall dimension	L-R	mm	2850	3300	3600	4800	7010
	F-B	mm	1500	1500	1800	2854	3000
	Hight above fioor	mm	4400	5400	5300	5400	5740
Motor power		KW	22	22	44	60	60

Technical Parameters
Item		Unit	Y32-1250	Y32-1600	Y32-2000	Y32-2500	Y32-3000
Nominal pressure		KN	12500	16000	20000	25000	30000
Knockout force		KN	2000	2500	3150	4000	5000
Daylight		mm	1500	1600	1800	2000	2000
Slide stroke		mm	900	1000	1200	1200	1200
Knockout stroke		mm	400	450	450	500	500
Speed of slide	Descent	mm/s	>150	>150	>150	>150	>150
	Pressiug	mm/s	4-10	4-10	4-10	4-10	5-12
	Return	mm/s	85	>100	60	≥100	120
Table area	L-R	mm	2500	2500	2500	3000	4000
Table area	F-B	mm	2000	2000	2000	2500	2600
Table hight above fioor		mm	200	200	200	200	200
Overall dimension	L-R	mm	5890	6500	6870	7630	8530
	F-B	mm	3450	3900	2500	5000	4000
	Hight above fioor	mm	6980	7500	7500	7840	8500
Motor power		KW	60	70	90	120	170

Packaging & Shipping

Our press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
