Stainless Steel Pipe Stair Handrail
From the nature,to the excellent.
| 2013 Fashional Style. Stainless Steel Modular Stair Handrails |
| Zhangyao stainless steel (Taiwan owner enterprise)in Foshan,CN. high quality control. |
| High passivated SS AISI/ASTM:304,304L,316,316L |
|
Surface finish: Satin,Brush,Bright,Mirror Supper mirror surface finish: #600-#1000 polished,make your railing dazzling. |
| Stainless Steel Tube System | ||||

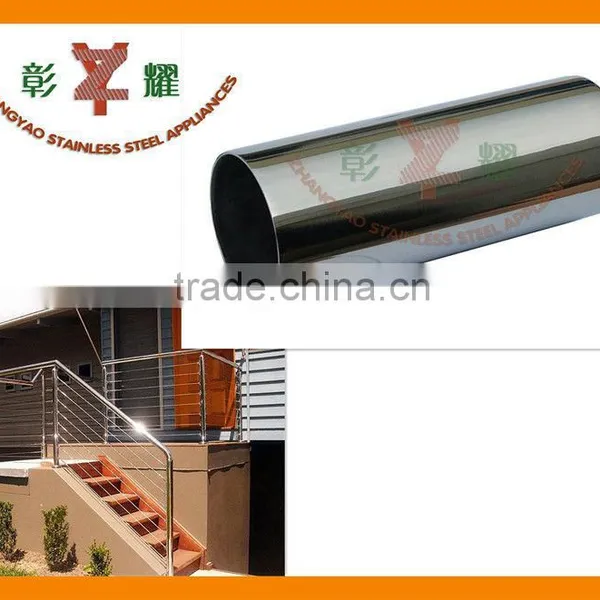

| ROUND TUBE SERIES | ||||
| TUBE O.D. | TUBE WALL THICKNESS(mm) | SURAFCE FINISH | LENGTH (mm) | |
| O.D. mm | O.D. inch | |||
| 12.70-25.40 | 1/2-1 | 0.5-3.0 |
1)Satin 2)Brush 3)Bright/Mirror (All standard brushed to buffed. We will match finishes) |
6000/6200/cutlength Lengths, Cutting,De-burring |
| 25.40-38.10 | 1-1 1/2 | 0.5-3.0 | ||
| 144.45 | 1 3/4 | 0.6-4.0 | ||
| 50.80-101.60 | 2-4 | 0.8-4.0 | ||
| 127.00 | 5 | 1.0-4.0 | ||
| OVAL TUBE SERIES | |||
| TUBE O.D. mm | TUBE WALL THICKNESS (mm) | FINISH | LENGTH (mm) |
| 20 × 40 | 1.0-2.0 |
A)No-Polish
B)180-320#Grit
CMirrorPolish
D)Titanium finish |
6000/6200/cut length Special cut length available Lengths,Cutting,De-burring |
| 35 × 65 | 1.0-2.5 | ||
| 40 × 60 | |||
| 40 × 80 | 1.2-3.0 | ||
| 48 × 76 | |||
| 45 × 100 | |||
| 55 × 93 | |||
| 58 × 115 | |||
| 50 × 120 | |||
| 60 × 120 | |||
| SQUATR & RECTANGULAR TUBE SERIES | |||
| TUBE O.D. mm | TUBE WALL THICKNESS (mm) | FINISH | LENGTH (mm) |
| 10 × 10 × -15 × 15 | 0.5-1.5 |
A)No-Polish
B)240-600# Grit
C)Mirror finish
D)Titanium finish |
6000/6200/cut length Special cut length available Lengths,Cutting,De-burring |
| 16 × 16 × -25 × 25 | |||
| 30 × 30 × -35 × 35 | 0.7-2.5 | ||
| 50 × 50 × -80 × 80 | 1.0-4.0 | ||
| 90 × 90 × -150 × 150 | |||
| 20 × 10-30 × 15 | 0.5-1.5 | ||
| 38 × 25-40 ×6 0 | 0.6-2.5 | ||
| 75 × 45-120 × 60 | 1.0-4.0 | ||
| 120 × 60 above | 1.5-4.0 | ||
| 62.7 × 32.4 |
| 3-127mm |
You may need Fittings/Accessories with round tube for handrail
| SHAPE | DESCRIPTION | SURFACE |
| Glass Clamp | Suit Glass 6.0, 8.0, 10.0mm |
1)Satin finish
2Polish
3)Titanium finish |
|
End Cap (Flat & Dome) |
for tubeΦ 25.4, 38.1, 42.4, 48.3, 50.8mm | |
| RailSupport (End & Centre support) | for tubeΦ 25.4, 38.1, 42.4, 48.3, 50.8mm | |
| Joiner | All kinds of Joiner for tube Φ38.1, 42.4, 48.3, 50.8mm | |
| Round Cover Plate, Base Plate/Flange | suits Φ38.1, 42.4, 48.3, 50.8mm | |
| Post Reducer | suits Φ38.1, 42.4, 48.3, 50.8mm | |
| Handrail Bracket | All kinds of brackets for fixing to wall |

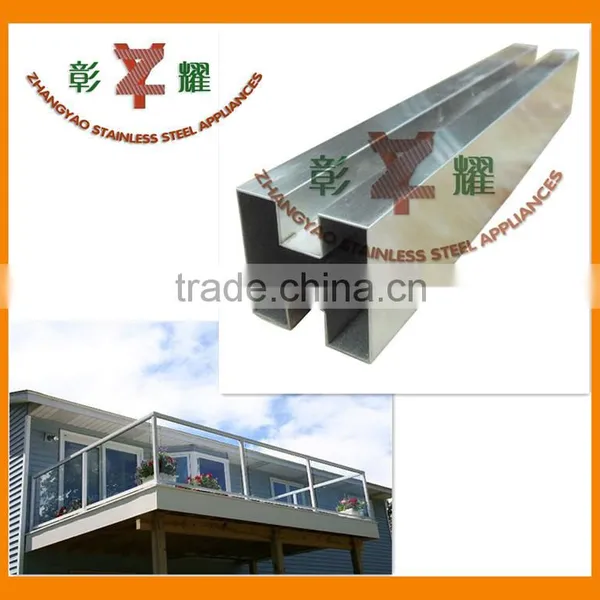

Stainless Steel Slotted Tube System | ||||

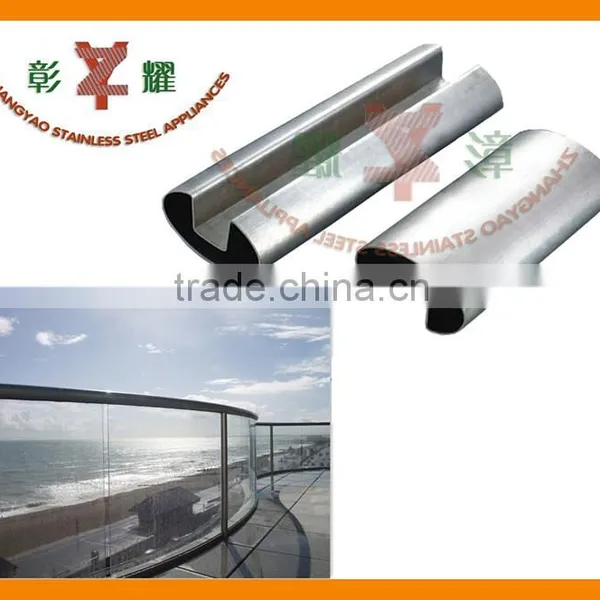

Oval single slot tube | ||||
|
OD (mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
40*60 |
15*15 |
1.0-2.0 |
5-12 |
Mirror 600#-1000# (Your Eyes And Nose could be seen Clearly From The Surface Just like the Mirror) |
40*80 |
20*20 |
1.2-2.0 |
8-15 |
|
40*80 |
24*24 |
1.2-2.0 |
10-20 |
|
50*100 |
30*30 |
1.2-2.0 |
10-25 |
|
40*110 |
33*26 |
1.2-2.0 |
10-30 |
|

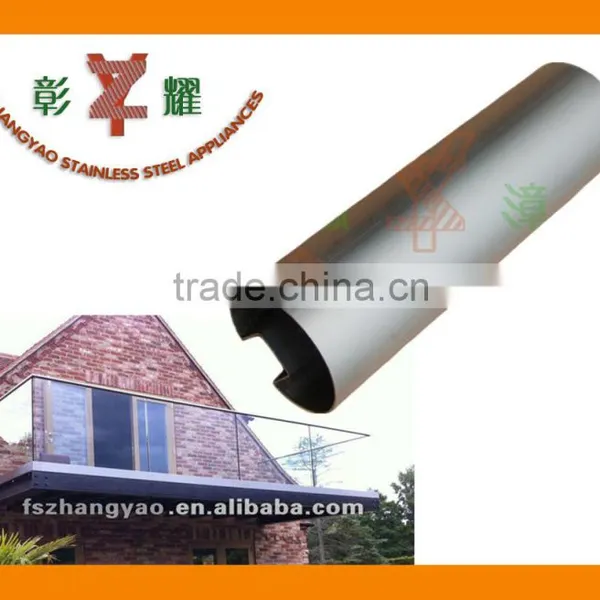

Round single slot tube | ||||
OD (mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
38.1 |
15*15 |
1.0-1.5 |
5-12 |
Mirror 600#-1000# (Your Eyes And Nose could be seen Clearly From The Surface Just like the Mirror) |
42.4 |
24*24 |
1.2-1.5 |
8-20 |
|
48.3 |
27*30 |
1.2-2.0 |
10-24 |
|
50.8 |
15*15 |
1.2-2.0 |
5-13 |
|
63.5 |
20*20 |
1.2-2.0 |
8-18 |
|
76.2 |
25-25 |
1.2-2.0 |
8-22 |
|

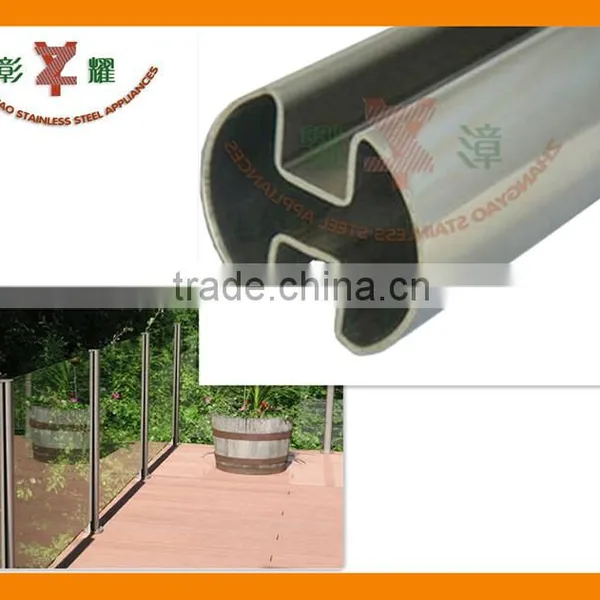

Round double slot tube (90°double slot /180°double slot) | ||||
OD(mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
50.8 |
15*15 |
1.2*1.8 |
8-12 |
Mirror 600#-1000# |
Other shape of slotted tube & Accessories also be offered,welcome to inquire,friends!
| Standard Export Package | A: Each tube SLEEVED in a plastic bag, then put in cardbox with strips.(For Cut To Length Small Tubes) | ||||||
| B: Each tube SLEEVED in a plastic bag, then packed in bundles/steel crates. | |||||||
| C: Each tube SLEEVED in a plastic bag, then packed in cardboard tubes, both sides with end cap,lastly packed in steel crate. | |||||||
Remarks: |
1)Lenght(M): 6 (or cut-to-length) | ||||||
| 2)Payment:TT | |||||||
| 3)Price Terms: FOB Foshan/HuangPu(China Port); CIF/C&F | |||||||
| 4)Delivery :13-45days after deposite,balance before shippment.(based on QTY) | |||||||
| 5)OEM/Buyer Lable accepted. | |||||||
| 6)Mill test certification offered. | |||||||
| Special Remark | Channel/Flat Bar/Angle Bar/Round Bar/Fittings/Accessories enquiries are warmly welcomed. | ||||||
| Visiting Factory | Foshan Zhangyao stainless steel appliance co.,ltd(Taiwan-owned Management Enterprise) | ||||||
| ADD: 3#,A area Ganxian cun Chencun Town Shunde,Foshan,Guangdong,China. | |||||||
|
MOB:86-13679877124 (Ms Jasmine Ye) Skype: zy.jasmine
| |||||||
Welcome to contact us for more details ,most competitive price for you!
