12V 2A/5A Automatic battery charger
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | MELINSUNERGY | Model Number: | MT-ABC1205 |
Warranty: | 2 Years, 2 Years |
Product Description

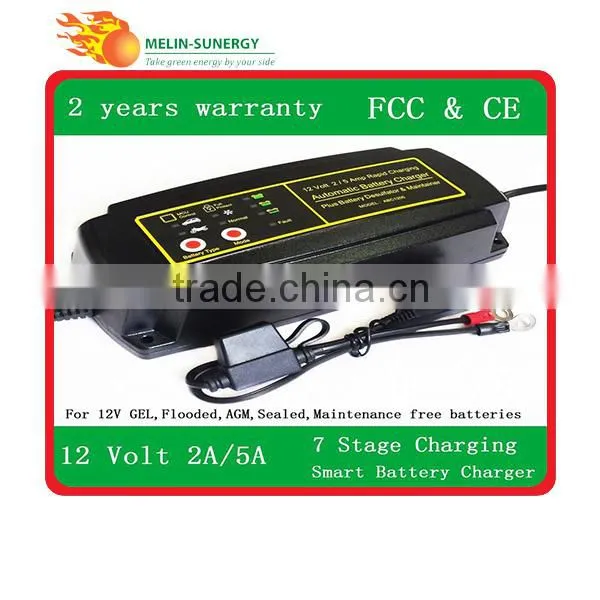

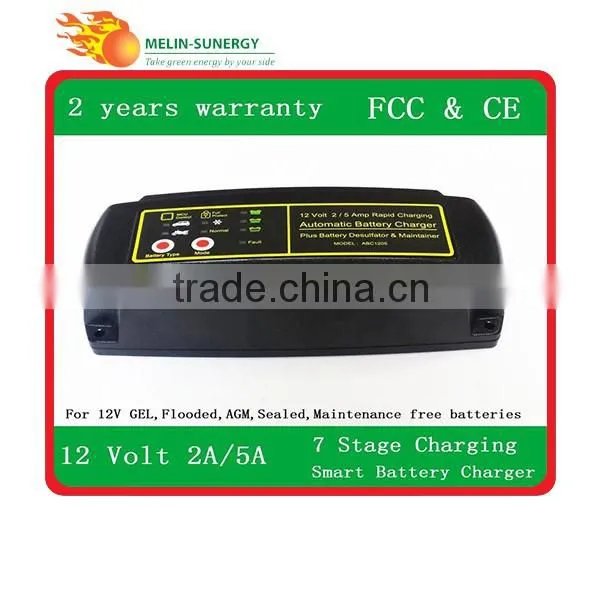

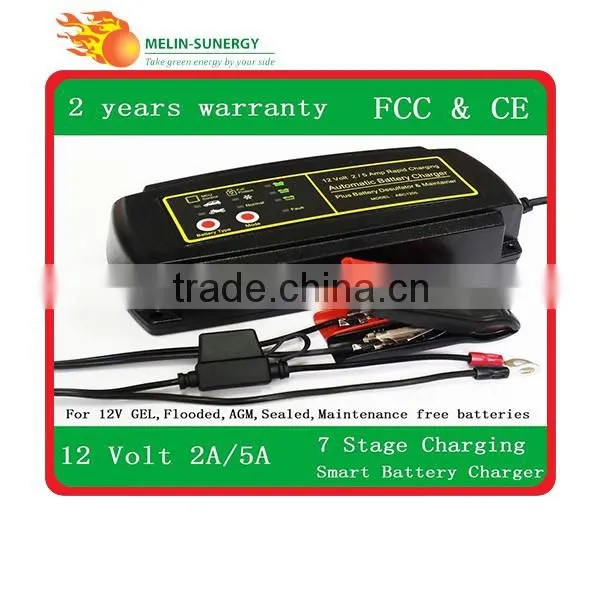

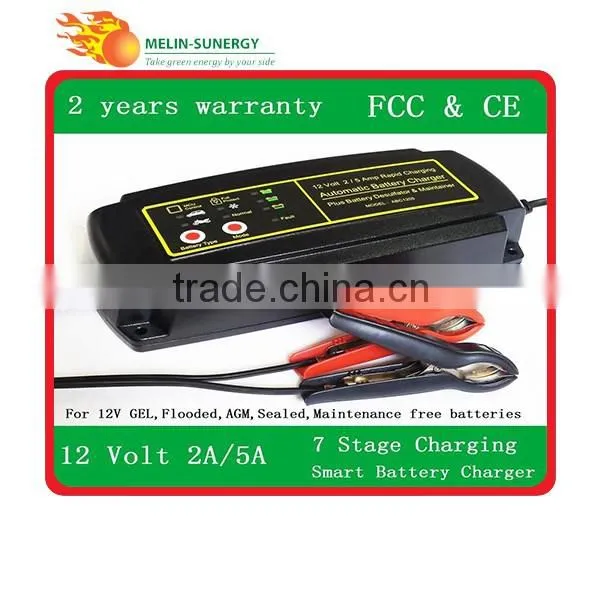

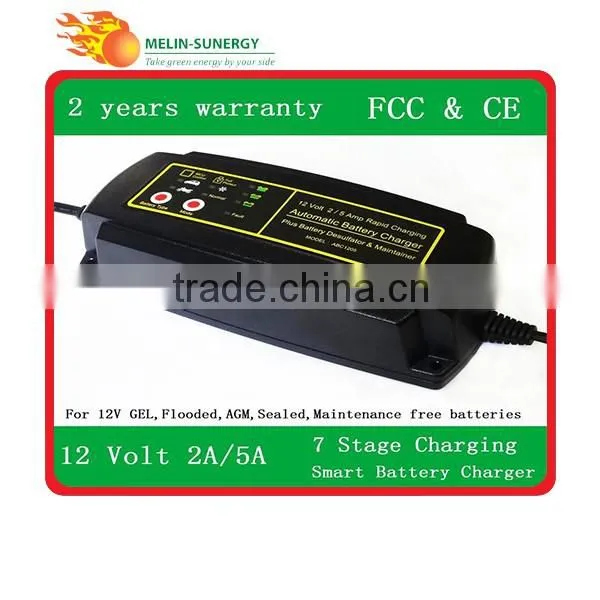

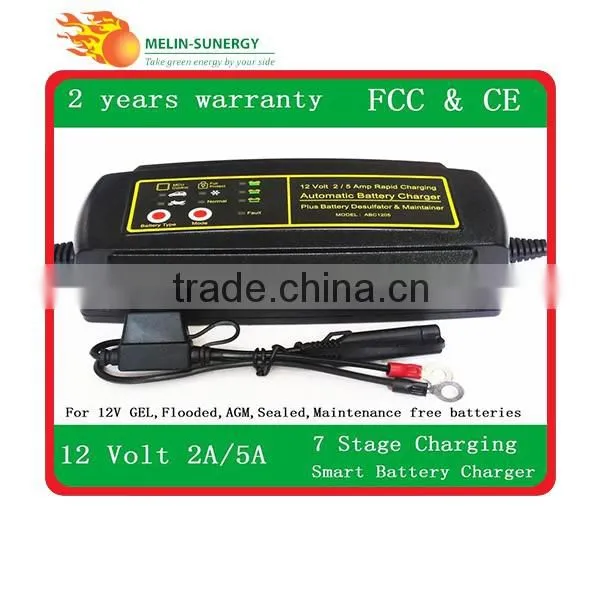

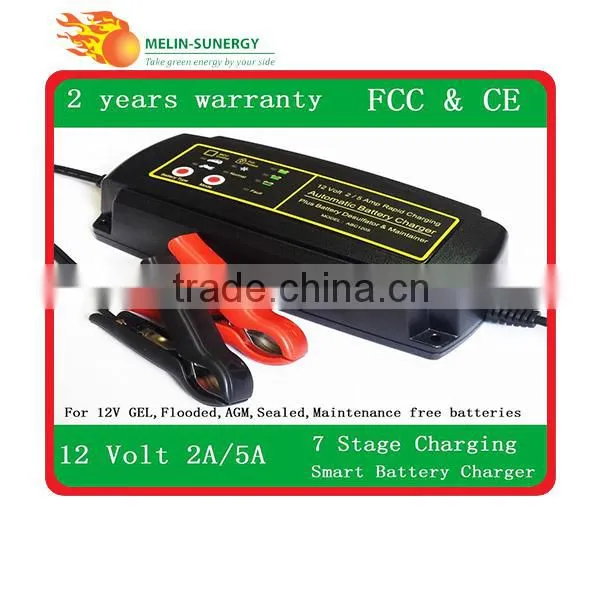

12V 2A/5A Automatic battery charger
--Automotive Smart Battery Charger
-- MCU Control
-- Desulphation , Soft start ,Bulk , Absorption ,Analysing ,Recondition ,Floating 7 stage charging Mode to main the
battery with longer life
-- Selectable Charging Mode for Winter and Normal Time , improve charging performance and battery life in winter
-- Selectable charging rate for Motor Bike (2A) and Car (5A ) , easy operation
-- ECO Mode , lower input power consumption
-- High Efficiency >85% , Nature cooling design , working without noise
--Charging Time Out Protection
-- Never Over Charged the battery
-- Suit for charging 6-150AH lead acid battery
-- Over Temperature , Reverse Polarity , Short Circuit , Charging Time out protection
-- Lower start charging voltage >2V
-- Easy Installation and using
-- 2 Years Warranty
--Suit for charging 12V Lead Acid Batteries (AGM , GEL , Sealed , Flood ,Calcium)
Charge Current | Motorcycle Mode(2A) | Car Mode(5A) |
Battery Capacity for Charging | 6-20Ah | 21-100Ah |
Battery Capacity for Maintainance | 6-30Ah | 31-150Ah |
-- Battery Type , following battery type will be used as general guide
Battery type | Absorption voltage | Recondition Voltage | Float Charging voltage |
Winter | 14.7V | 15.0V | 13.6V |
Normal | 14.4V | 14.7V | 13.5V |
* Normal mode : charging for lead acid battery @ Temperature >10°C
* Winter mode : charging for lead acid battery @ Temperature <10°C
Item No. | MT-ABC-1205 |
Type | Automotive Smart Charger |
Input Voltage/ Frequency (UL) | 110Vac ,50/60HZ |
Input Voltage / Frequency (CE ) | 220-240V ac ,50/60HZ |
Output Voltage | 12V |
Output Current | 2A//5A |
Start Charging voltage | >2.0V |
Output voltage at no load | <0.5V |
Temperature Compensation | -24mV / ℃ |
Size (L*W*H) | 204X92X54mm |
Weight | 0.85 Kgs |
Approval | FCC,CE,SAA |
Operationg Temperature Range | 0 to 40° C |
Storage Temperature Range | -10 to 80°C |
Operating Humidity Range | 90% RH Max |

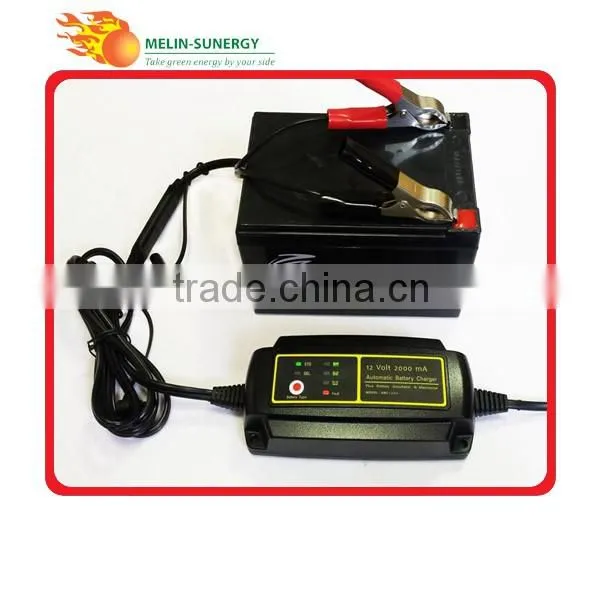

--For charging or maintaining the 12V Lead Acid battery (AGM /Wet /Flood , Gel ,Sealed & Calcium ) in Car , Caravan and other Vehicals
--Packing : Color box , Blister Card Packing or Customized Packing
--Shipping : By sea / By Air / By Express ( DHL ,FedEx , TNT ,UPS ...)
