Specifications
Sleeve labeling machine1.steam shrink
2.suitable for different size bottle
3. max 400bpm
Sleeve labeling machine
1.General description
Our sleeve labeling machine include labeling machine, shrink tunnel and steam creater.
This machine covers the circle label on the PETbottle, and then hot shrinking to fix on the position which bottle bodydesignated.
The machinery part adopts combination designing of modularization, and makes the machinereasonable. The height adjustment adopts motor fluctuating; it is convenient toreplace the material. The special cutter head designing make the film-rollingcut more exactly and reliably.
Product name |
Shrink sleeve labeling machine |
||
Model |
PM-150 |
PM-250 |
PM-350 |
Power |
3PH 220V/380V 50/60HZ |
||
Machine power |
2 |
2.5 |
3 |
Production speed |
9000-12000 BPH |
15000 BPH |
21000BPH |
Bottle diameter range |
Ø 20mm~Ø 130mm |
||
Label height |
25mm-300mm |
||
Label material |
PVC/OPS/PET |
||
Label thickness |
0.03mm-0.13mm |
||
Shrink tunnel |
Electrical/steam (Electric or steam shrinker can be optional) |
||
Weight |
1000KGS |
1200KGS |
1500kg |
Overall size |
1000*860*1800mm |
1090*860*1900mm |
1090*860*2000mm |
2. Photos

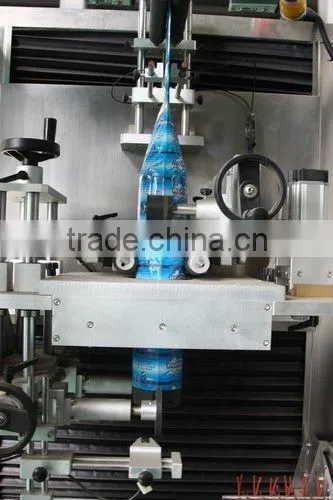

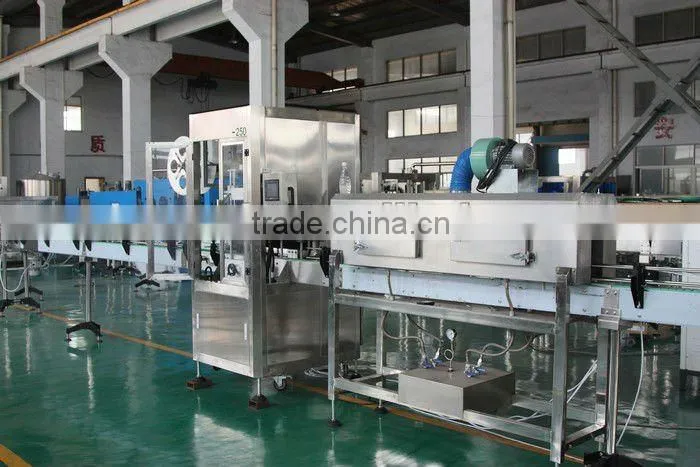

The main machine

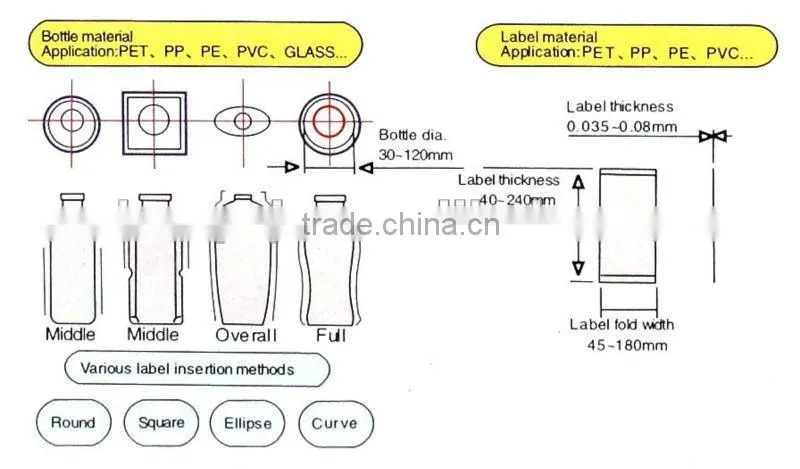

Suitable bottle type
Inner

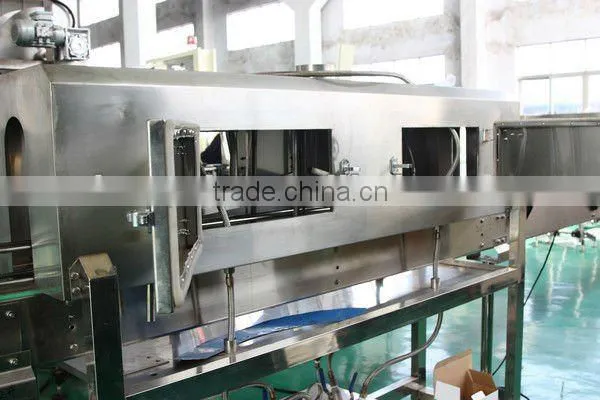

Shrink tunnel

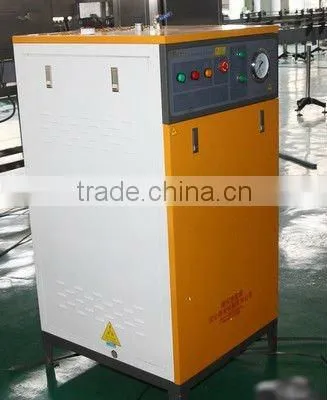

Steam Creater
