Specifications
aseptic juice packaging machine1. juice bottling: 2000-30000BPH
2. PLC control fully auto 4 in 1
3. for juice

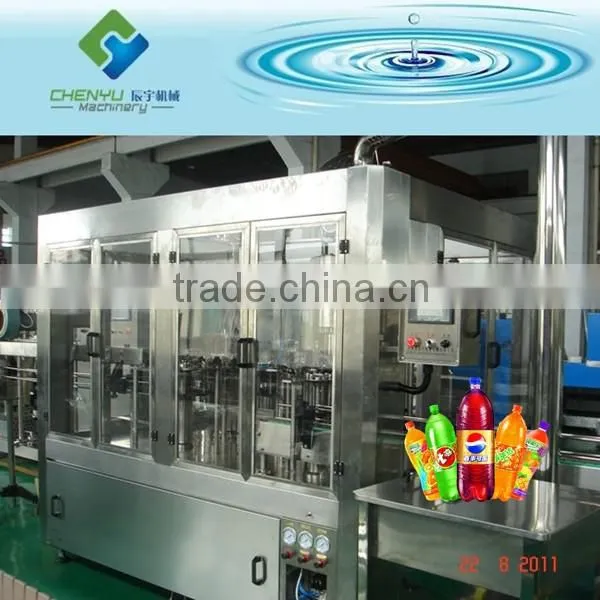

aseptic juice packaging machine
orange juice bottling machine filling monobloc
juice filling machine, juice pulp machine

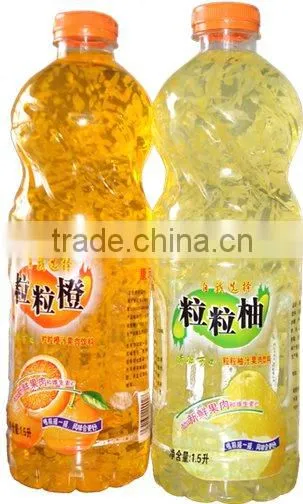

It is used for filling pulp juice in PET bottle with plastic screw cap. we can supply the turnkey and installation running service.
Characteristics:
1. it can carry out washing pulp filling, liquid juice filling and capping in one machine.
2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.
Technical parameters:
| Model |
RCGFB18-12-18-6 |
RCGFB24-18-24-8 |
RCGFB32-24-32-12 |
RCGFB40-32-40-12 |
| Production Capacity:500ml(B/h) |
5000 |
8000 |
12000 |
15000 |
| Suitable Bottle Types(mm): |
Round or square square shaped bottle |
|||
| PET Bottle Dimension: (mm) |
Bottle diameter:50-110 Height :150-330mm |
|||
| Suitable Cap Standard: |
plastic screw Cap |
|||
| Filling Precision |
within ±5mm |
|||
| Filling Pressure(Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
| Rinsing Precision:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
| Installed Capacity:(L) |
4.3 |
6.5 |
10 |
12 |
| Overall Size(mm)(L×W×H) |
3170×2070×2400 |
4070×2350×2400 |
5100×2600×2400 |
6250×3050×2400 |
| Total Weight: (kg) |
4000 |
5000 | 6000 |
7000 |
