High Quality Ceramic Fiber Cotton for Thermal Insulation

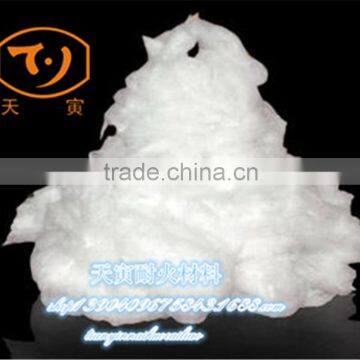

High Quality Ceramic Fiber Cotton for Thermal Insulation photo-1
High Quality Ceramic Fiber Cotton for Thermal Insulation photo-2

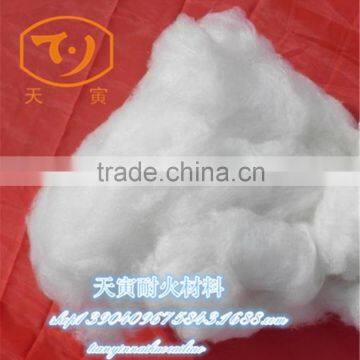

High Quality Ceramic Fiber Cotton for Thermal Insulation photo-3

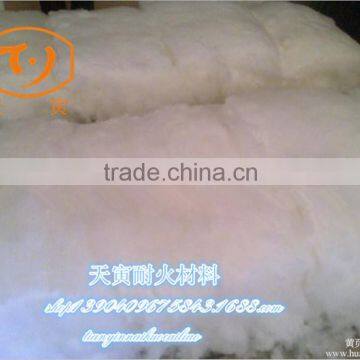

High Quality Ceramic Fiber Cotton for Thermal Insulation photo-4

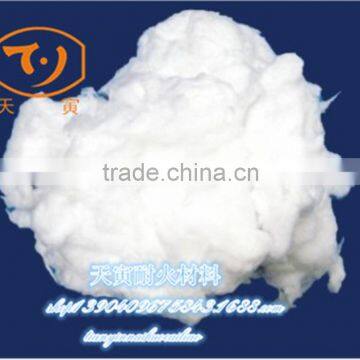

High Quality Ceramic Fiber Cotton for Thermal Insulation photo-5

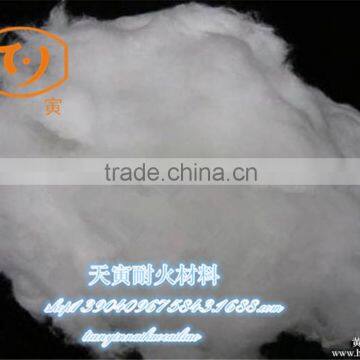

High Quality Ceramic Fiber Cotton for Thermal Insulation photo-6
Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Grade:
COM (Common)
Application:
Liners Of Industrial Furnace
Thickness:
6-60mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Grade COM (Common)
Application Liners Of Industrial Furnace
Thickness 6-60mm
Width 610/1220mm
Length 3600/7200/14640mm
Chemical Composition Al2O3: 39-40% Zr02:15-17%
Working Temperature 1260
Fiber Diameter 3-5um
Shrinkage (1800 ℉, 3h) < -3%
Thermal Conductivity 0.055-0.180(W.k.m.)
Model Number insulation ceramic fiber blanket
Brand Name TY
Place of Origin Jiangsu, China

High Temperature Resistant Alumina Silica Ceramic Fiber



Product Description

              Ceramic fiber is a kind of high efficient thermal insulation material, has the advantages of light weight, high strength, oxidation resistance, low thermal conductivity, good flexibility, corrosion resistance, small heat capacityand noise etc.. Industrial furnace, boiler, heat insulation lining the back of thermal equipment lining insulationfire-resistant insulation steam engine gas engine heat insulation materials such as flexible pipe gasket; high temperature; high temperature filtration reactor fire heat insulation of various industrial equipment, electrical component fire insulation burning equipment insulation module, folded pieces of raw materials and block veneer.



Characteristic

1.Excellent thermal stability
2.Excellent chemistry quality
3.Resistance to burning
4.Low thermal conductivity
5.Low heat storage
6.Good obstructing voice and mechanism strength
7.Low shrinkage
8.Good springiness for fibersConvenient producing and installin



Application

1.Joint sealing and filling insulation (kiln car, pipeline, kiln door and so on)
2.Fiber composite (for example: grinding parcel)
3.Internal and external lining for industrial furnace
4.Structure refractory and sponging sounds
5.Materials for hot filtration
6.Raw materials for further producing



Specifications



      It is made of special ceramic long-fiber that is produced by the melting of very pure raw materials in double surface meeding process.


GradeCommonStandardHigh PureHigh AluminumZirconium
Max. Temperature (℃)11001260126013601450
Working Temperature (℃)< 10001150118012601350
ColorPure WhitePure whitePure whitePure whitePure white
Density (kg/ m3)96/128/16096/128/16096/128/160128/160128/160
Shrinkage on heating (%)-4-3-3-3-3
(24 hours, density as 128/m3)(1000℃)(1000℃)(1100℃)(1250℃)(1350℃)

Thermal conductivity by mean

       temp.(w/m.k)

0.09(400℃)0.09(400℃)0 .09(400℃)0.12(600℃)0.16(800℃)
    (density as 128kg/m3)0.16(800℃)0.16(800℃)0.16(800℃)0.20(1000℃)0.20(1000℃)
   0.20(1000℃)
Tensile strength (MPa)0.040.040.040.040.04
(density as 128kg/m3)
 AL2O3444647-4952-5539-40
 AL2O3+SiO296979999-

Chemical

composition

AL2O3+SiO2+ZrO2----99
 (%)ZrO2----15-17
 Fe2O3<1.2<1.00.20.20.2
 Na2O+K2O≤0.5≤0.50.20.20.2
     Size  (mm)15000×610/1220×10       14400×610/1220×12.5
7200 ×610/1220×20        7200 ×610/1220×25
5000 ×610/1220×30        4500 ×610/1220×40
3600 ×610/1220×50  (Other sizes and shapes on request. )
         PackageCarton or woven bag

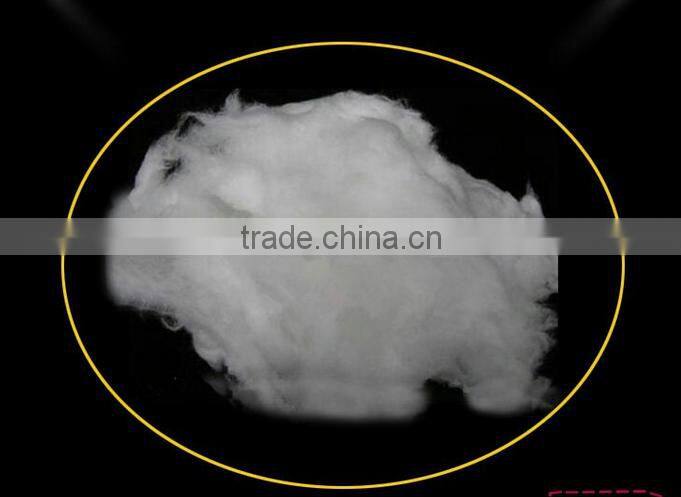

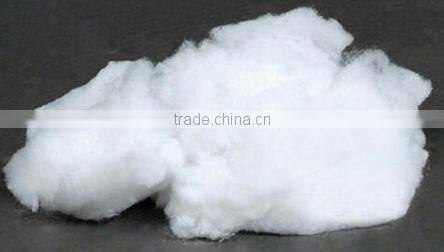

Products Photos

 High quality ceramic fiber cotton for thermal insulation

High quality ceramic fiber cotton for thermal insulation

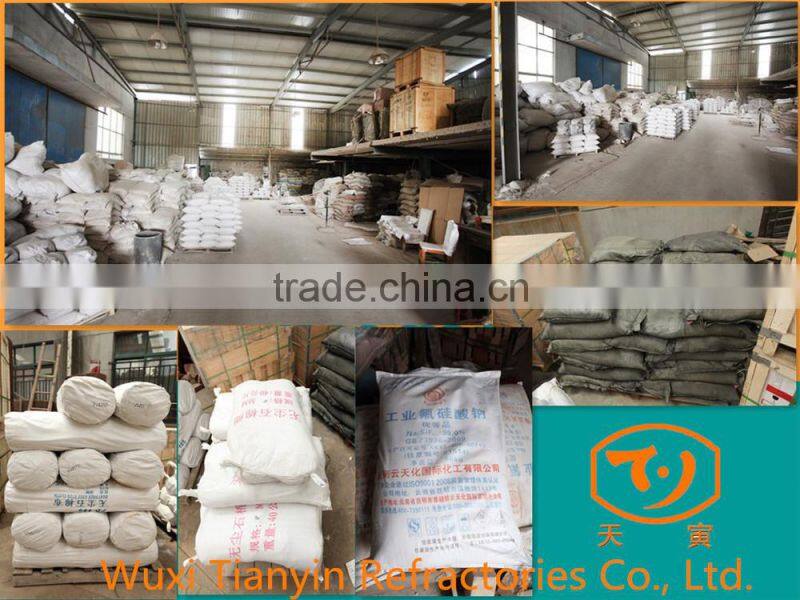

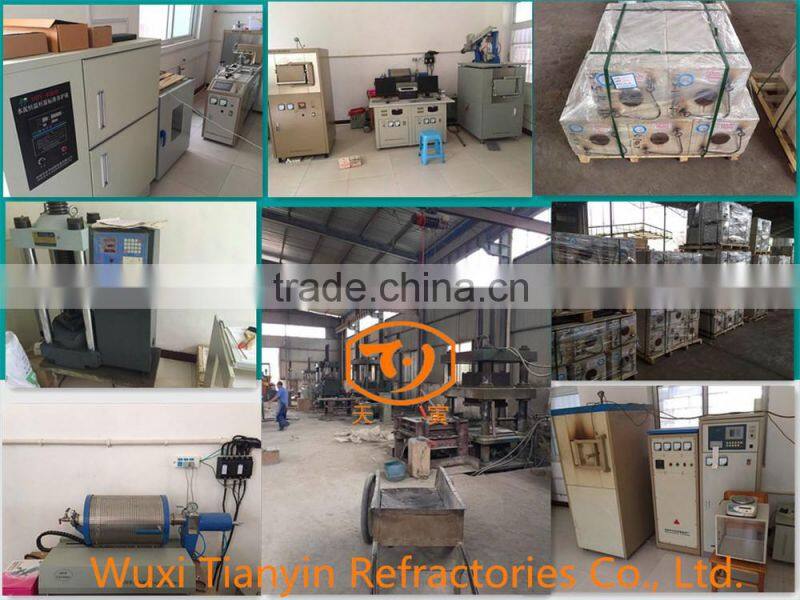

Quipment & Storage

 High quality ceramic fiber cotton for thermal insulation











High quality ceramic fiber cotton for thermal insulation











High quality ceramic fiber cotton for thermal insulation







Company Information

 High quality ceramic fiber cotton for thermal insulation











High quality ceramic fiber cotton for thermal insulation













Our Services

 High quality ceramic fiber cotton for thermal insulation
