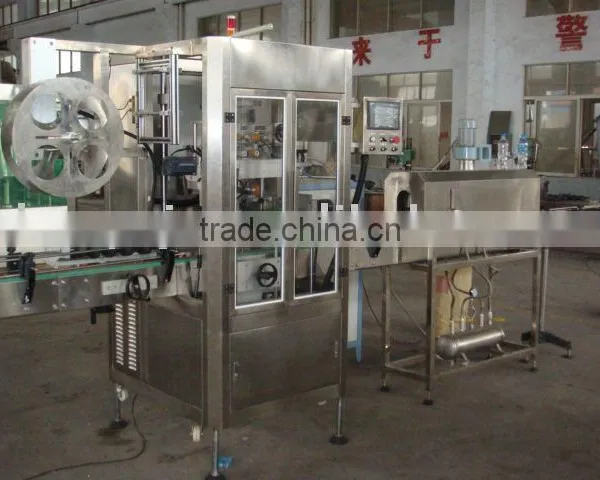

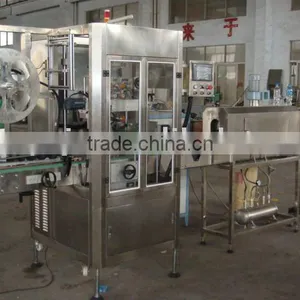

Sleeve labeling machine
SLM series of automatically tunica-shrinkage labeling machines are the new-launch groups utilized the international advanced technology. The machines adopt high quality stainless steel and aluminum alloys abundantly to rationalize the structure and handle easily. The touch screens used on controlling circuits are easy to learn and handle. As the brand new design conception and excellent circuit design, the adjustments on a lot of equipment are decreased, and the production speed and precision of the label cutting is improved extremely.
Characteristics:
* Advanced industrial human-machine interface control. High quality international name brand key components.
* Can easily be fitted and used in conjunction with other Lonhon product lines.
* Uniquely designed blade holding seat which need not be replaced. Changing blade is fast and easy.
* Adjustment for use with various bottle types and sizes can be made without the use of tools.
* Forced insertion design is convenient and effective.
* Integrated features make adjustment for changing bottle type more convenient.
* Accommodates 5"~10" core size labeling materials.
* Suitable for square and round bottles.
* Adjustable label insertion core.
* Employs a high sensitivity optical fiber sensor ensuring accurate label cut.
Technical parameters:
Model |
SLM-100 |
SLM-200 |
SLM-300 |
CSLM400 |
Max-capacity(bph) |
6,000 |
12,000 |
18,000 |
24,000 |
Label diameter(mm) |
25-130 |
25-130 |
25-130 |
25-130 |
Bottle diameter(mm) |
25-130 |
25-130 |
25-130 |
25-130 |
Label insert length(mm) |
40-220 |
40-220 |
40-220 |
40-220 |
Material |
PVC/PET |
PVC/PET |
PVC/PET |
PVC/PET |
Label thickness(mm) |
0.035 |
0.035 |
0.035 |
0.035 |
Power(kw) |
2.0 (380V 50Hz) |
2.0 (380V 50Hz) |
2.0 (380V 50Hz) |
4.0 (380V 50Hz) |
Shrink tunnel power(kw) |
0.25 |
0.25 |
0.25 |
0.25 |
Overall size(L*W*H) |
5000*890*2600 |
5000*890*2600 |
5000*890*2600 |
5000*890*2600 |
Weight(kg) |
1,200 |
1,500 |
1,500 |
1,500 |
