Refractory Cordierite Honeycomb Ceramics

Refractory Cordierite Honeycomb Ceramics thumbnail-1
Refractory Cordierite Honeycomb Ceramics thumbnail-2
Refractory Cordierite Honeycomb Ceramics thumbnail-3
Refractory Cordierite Honeycomb Ceramics thumbnail-4
Refractory Cordierite Honeycomb Ceramics thumbnail-5
Refractory Cordierite Honeycomb Ceramics photo-1
Refractory Cordierite Honeycomb Ceramics photo-2
Refractory Cordierite Honeycomb Ceramics photo-3
Refractory Cordierite Honeycomb Ceramics photo-4
Refractory Cordierite Honeycomb Ceramics photo-5
US$ 3 - 5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Type:
Ceramic Parts
Application:
Refractory
Contact Supplier Request Quote Chat Now
Wuxi Tianyin Refractories Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI TIANJIN QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Type Ceramic Parts
Application Refractory
Material Alumina Ceramic
Model Number Customer's Requirements
Brand Name TY



Product Description

Honeycomb ceramic is new developed ceramic part.

Because of it's features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It's widely used in many fields.

The honeycomb ceramic as the heat exchange media is the key part for heat storing HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO,  heat exchanger and other environmental protection and energy saving products.

Honeycomb Material:

We can make honeycomb ceramic various material. Like alumina, multiple cordierite etc.

Specifications



Chemical constituent

Composition

Value(%)

SiO2

20-50

Al2O3

45-75

MgO

~

Fe2O3

≤1.0

TiO2

≤2.5

K2O+Na2O+CaO

≤0.5



 Dimension and other physical properties

Dimension

Quantity
of
channels

Wall
thickness
(mm)

Channel
Width
(mm)

Surface
area
(m2/m3)

Void section (%)

Packaging density
(kg/ m3)

Weight per piece (kg)

150×150×300

25×25

1.0

4.96

580

68

696

4.7

150×150×300

32×32

1.0

3.66

695

61

755

5.1

150×150×300

40×40

0.7

3.03

891

65

814

5.5

150×150×300

43×43

0.7

2.77

940

63

858

5.8

150×150×300

50×50

0.6

2.39

1090

63

903

6.1

150×150×300

60×60

0.5

1.99

1303

63

932

6.3
Products Photos

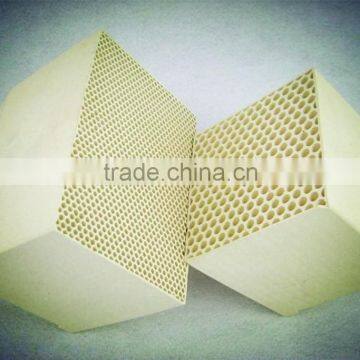

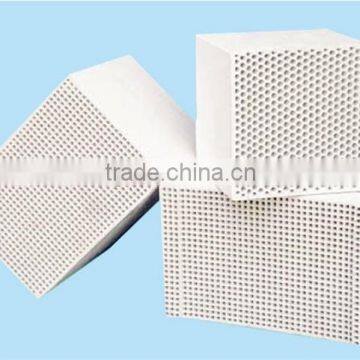

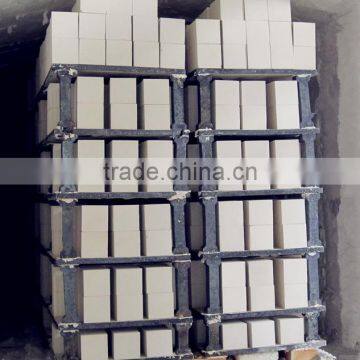

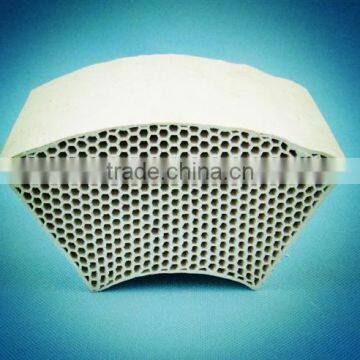

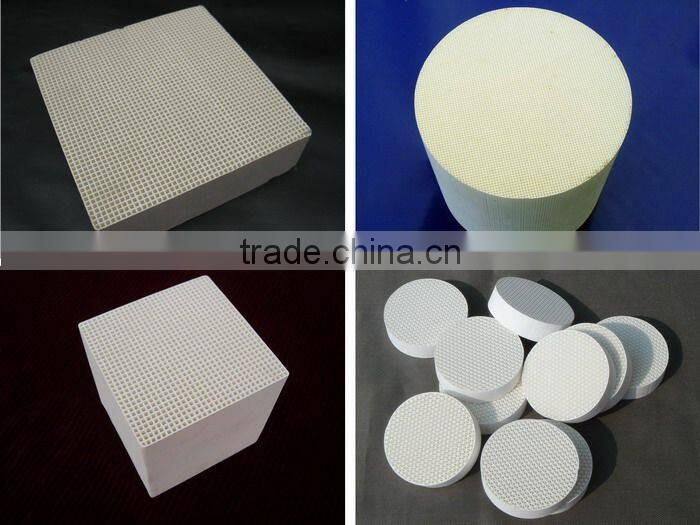

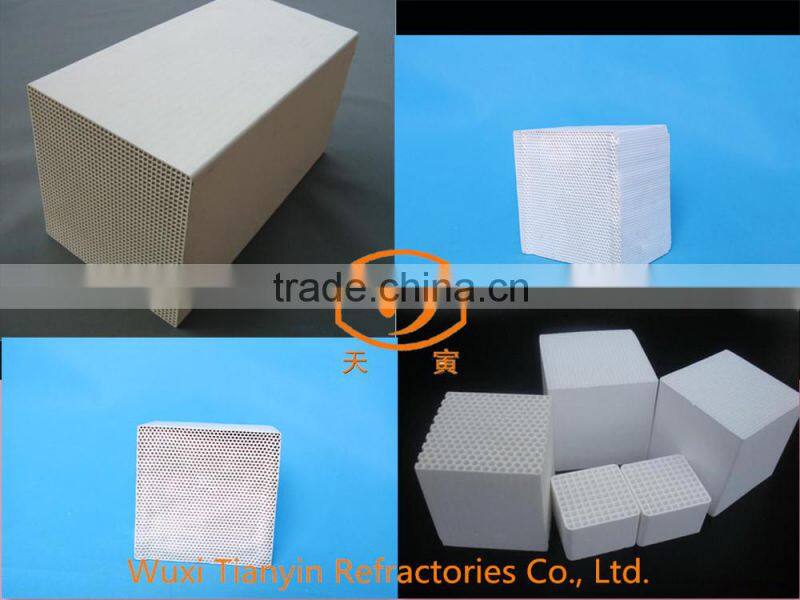

 Refractory Cordierite honeycomb ceramicsRefractory Cordierite honeycomb ceramics
