Carbonated Filling Machine

Carbonated Filling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
chenyu
Model Number:
DCGF
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name chenyu
Model Number DCGF

Specifications

carbonated filling machine
1.Fully automatic
2.spped:2000-30000bph
nology from Taiwan and Germany
4.PLC contr

carbonated filling machine

1. Technical parameters:



Model

DCGF18-18-6

DCGF24-24-8

DCGF32-32-12

DCGF40-40-12

Production Capacity:500ml(B/h)

5000

8000

12000

16000

Suitable Bottle Types(mm):

Round or square square shaped bottle

Polyester Bottle Dimension: (mm)

Bottle diameter:50-110        Height :150-340mm

Suitable Cap Standard:

Plastic Screw Cap

Filling Precision

≤±5mm

Filling Pressure(Mpa)

0.15-0.35

0.15-0.35

0.15-0.35

0.15-0.35

Rinsing Precision:(Mpa)

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

Installed Capacity:(L)

3.5

4

6

8

Overall Size(mm)(L×W×H)

2450×1800×2350

2780×2200×2350

3600×2650×2350

3800×2950×2400

Total Weight: (kg)

3500

4500

5500

6500

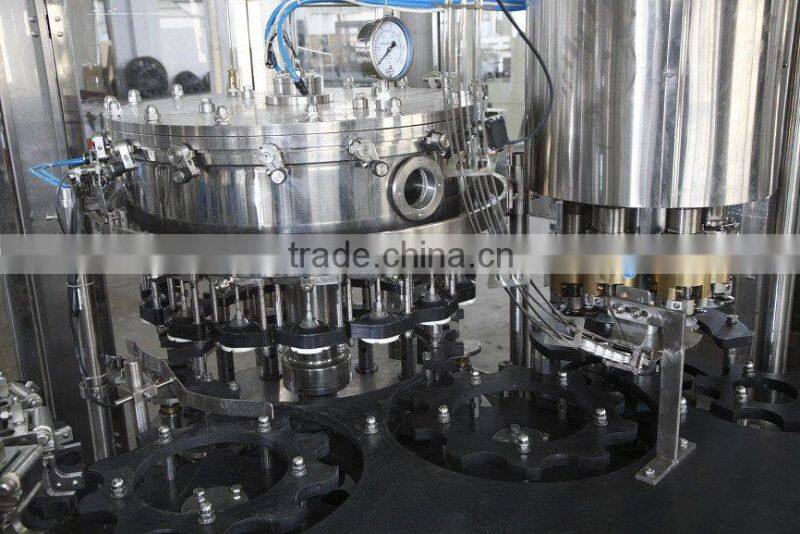

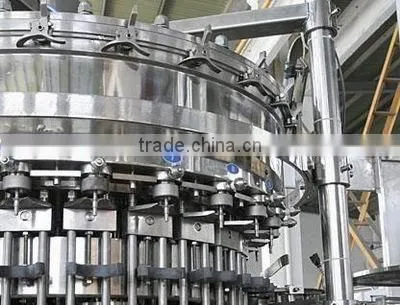

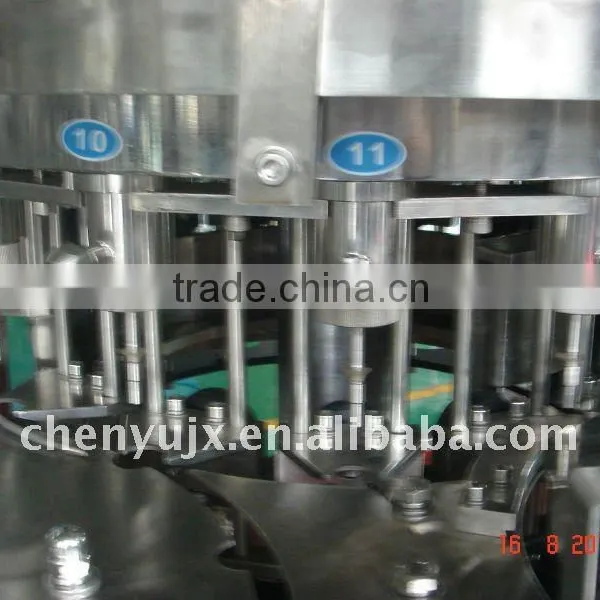

2. Machine Picture



carbonated filling machine

carbonated filling machine



carbonated filling machine        carbonated filling machine





3.Advantages



1.On one machine, it can carry out washing, filling, capping

2.It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.

3.The machine adopts frequency control and PLC control.

4.All spare parts that may touch with water are made from high-quality stainless steel.

5.The operation and maintenance are convenient.



Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
