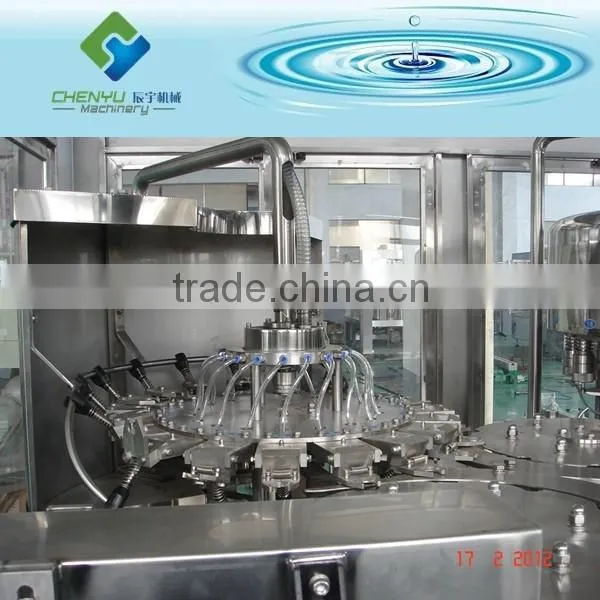

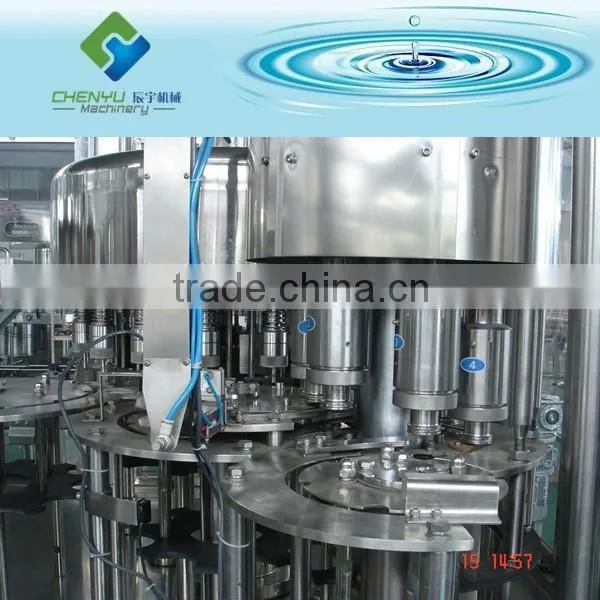

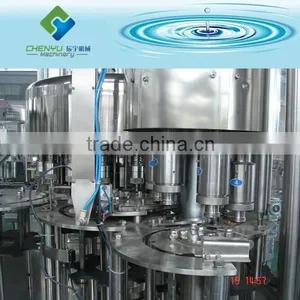

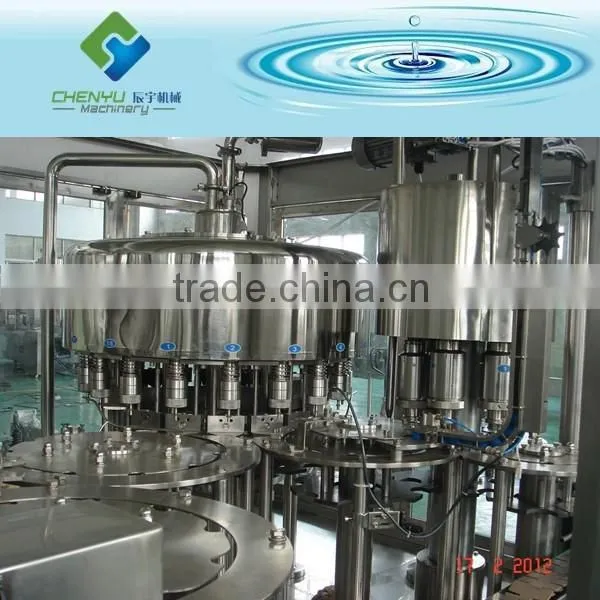

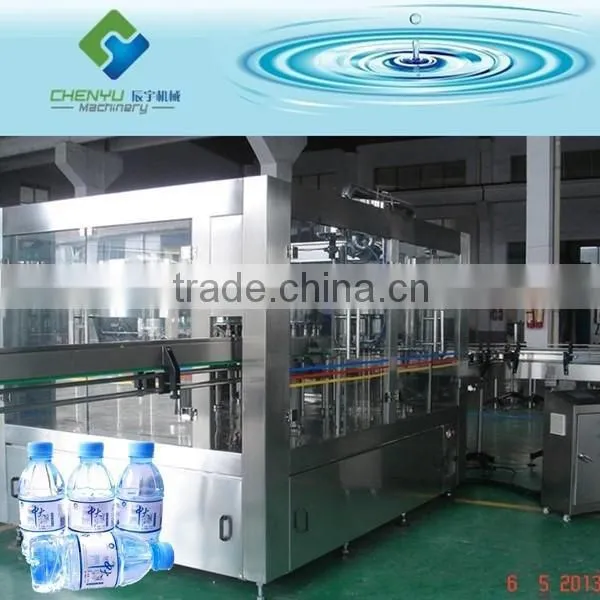

Water Bottling Machine
Characteristics:
1. On one machine, it can carry out washing, filling, capping.
2. The machine adopts filling in normal temperature and normal pressure.
3. The special filling valve makes the filling speed fast and the filling liquid level control correct.
4. The machine adopts frequency control and PLC control.
5. The operationand maintenance are convenient.
6. It is also suitable for thinner PET bottles.
Main Technical Specifications
Model: |
CGF16/12/6 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/12 |
CGF40/40/12 |
CGF48/48/12 |
Production Capacity:500ml(B/h) |
4000 |
6000 |
10000 |
14000 |
17000 |
20000 |
Suitable Bottle Standard:(mm) |
150-300 |
150-340 |
150-340 |
150-340 |
150-340 |
150-340 |
Suitable Cap Standard:(mm) |
φ50-φ110 |
|||||
Filling Pressure:(Mpa) |
0.2-0.3 |
|||||
Filling Model: |
by Gavity |
|||||
Installed Capacity:(L) |
3.13 |
3.84 |
3.84 |
5.6 |
6.3 |
7.3 |
Filling Temperature: |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Overall SizeL×W×H(mm) |
2400×1670 |
2470×1970 |
2865×2170 |
3700×2570 |
3800×2950 |
4500×3400 |
Total Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
6000 |
7000 |
About Factory
15years’ experience in filling line machinery; 12 years gold supplier on .
About Quality
Brand-new equipments with latest design and suitable material made,
About After Sale Service
12 months' warranty period and life time technical support.
