2010 New style carbonated drink filling machine

Specifications

filling machine
1. 2000-36000BPH
2. beverage filling machine
3. carbonated drink
4. full-auto 3 in 1

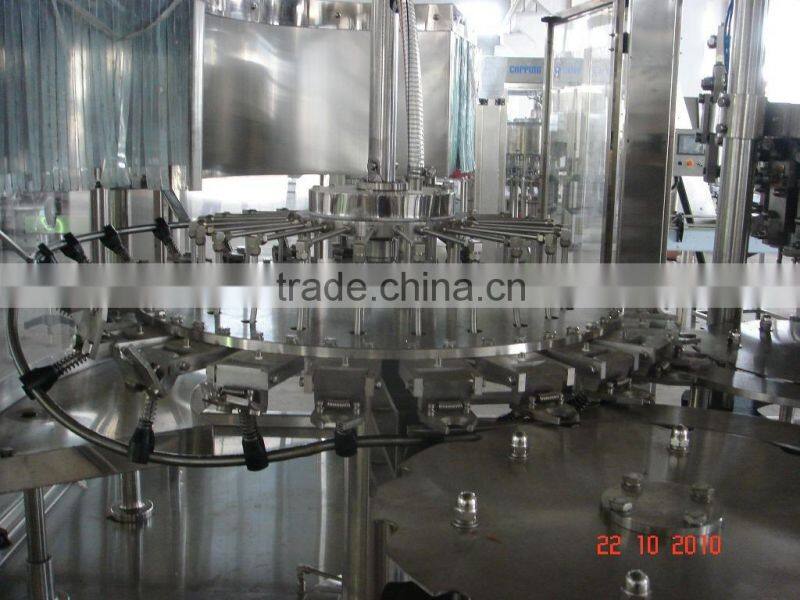

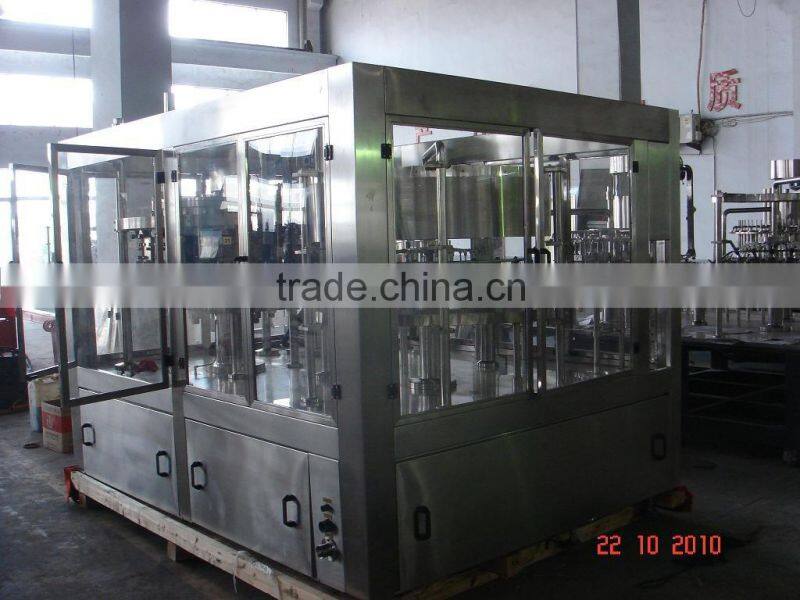

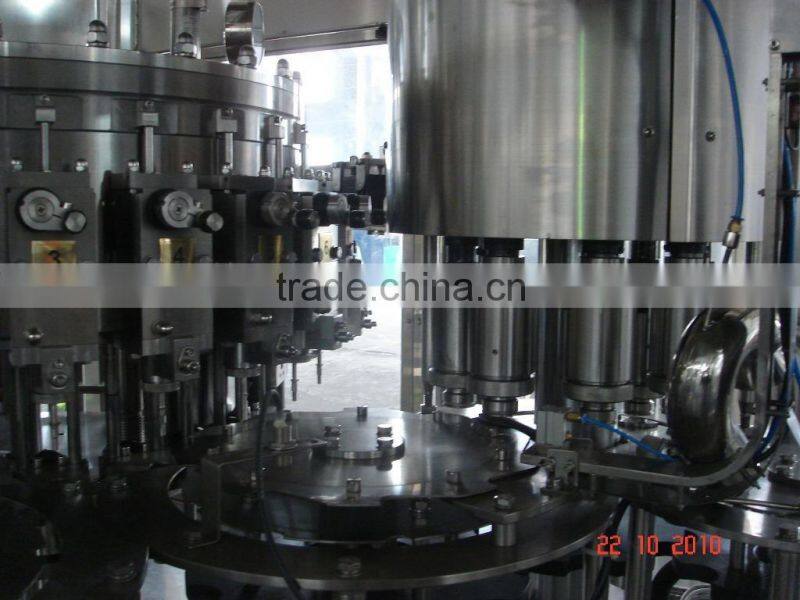

2010 New style carbonated drink filling machine



It is used for filling carbonated drink in PET bottle or glass bottle. we can supply the whole line.



Characteristics:

1. it can carry out washing filling and capping in one machine.

2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.



3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.

4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.



Technical parameters:

Model	DCGF18-18-6	DCGF24-24-8	DCGF32-32-12	DCGF40-40-12
Production Capacity:500ml(B/h)	5000	8000	12000	16000
Suitable Bottle Types(mm):	Round or square square shaped bottle
Polyester Bottle Dimension: (mm)	Bottle diameter:φ50-φ110        Height :150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision	≤±5mm
Filling Pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing Precision:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	3.5	4	6	8
Overall Size(mm)(L×W×H)	2450×1800×2350	2780×2200×2350	3600×2650×2350	3800×2950×2400
Total Weight: (kg)	3500	4500	5500	6500
