Specifications
Automatic carbonated beverage processing machine1.Output:2000-36000BPH
2. air-cool chiller, mixer
3. carbonated beverage

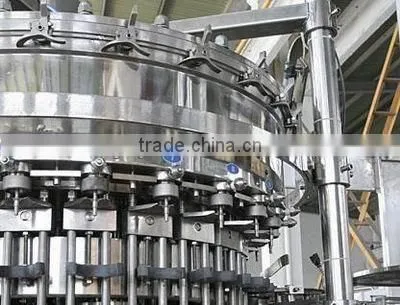

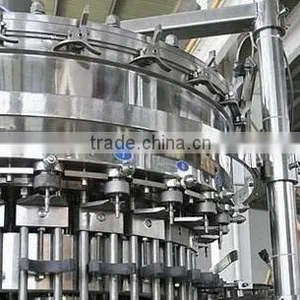

Automatic carbonated beverage processing machine
carbonated beverage prepare equipments
I. Characteristics:
Automatic carbonated beverage processing machine -----introduction
1. Automatic carbonated beverage processing machine is mainly used for bottling juice ,such as apple juice ,mango juice,orange juice,and other fruit juice.It can also be used for bottling water ,such as pure water and mineral water.
2. Automatic carbonated beverage processing machine includes washing part ,filling part,and sealing part,all of the process is automatic.
3. Automatic carbonated beverage processing machine adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east.
4. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automaticly,
5. Transducer is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.
6. Automatic carbonated beverage processing machine is convenient to operate with higher auromation because everypart of the machine is inspected to run with photo electicity.
7. Automatic carbonated beverage processing machine can be produced acoording to your requiements,because we are professional beverage processing manufacture.
8. We can provide C.I.P. system
II. Main Models and technical parameters
Model |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-12 |
DCGF40-40-12 |
DCGF50-50-15 |
Production Capacity:500ml(B/h) |
5000 |
8000 |
12000 |
15000 |
18000 |
Suitable Bottle Types(mm): |
Round or square square shaped bottle |
||||
PET Bottle Dimension: (mm) |
Bottle diameter:50-110 Height :150-330mm |
||||
Suitable Cap Standard: |
plastic screw Cap |
||||
Filling Pressure(Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
Rinsing Precision:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
Installed Capacity:(L) |
4 |
4.8 |
7.6 |
8.3 |
9.6 |
Overall Size(mm)(L×W×H) |
2650x1900x2400 |
2900×2100×2400 |
4100×2400×2400 |
4550×2650×2400 |
5450x3210x2400 |
Total Weight: (kg) |
2800 |
3500 |
4200 |
5600 |
6500 |
III. We can provide Turnkey Project of Automatic carbonated beverage processing machine
About Factory
18years’ experience in Automatic carbonated beverage processing machine ; 6 years gold supplier on .
About Quality
brand-new equipments with latest design and suitable material made.
About After Sale Service
One year warranty period and life time technical support.
