Specifications
1.Automatic water bottle unscrambler2.8000bph-24000bph
3.bottle diameter: 50mm-90mm
4.bottle height: 150mm-310mm

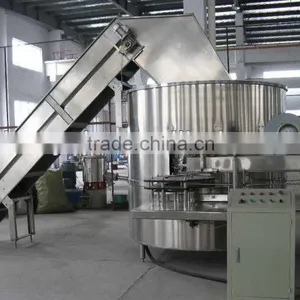

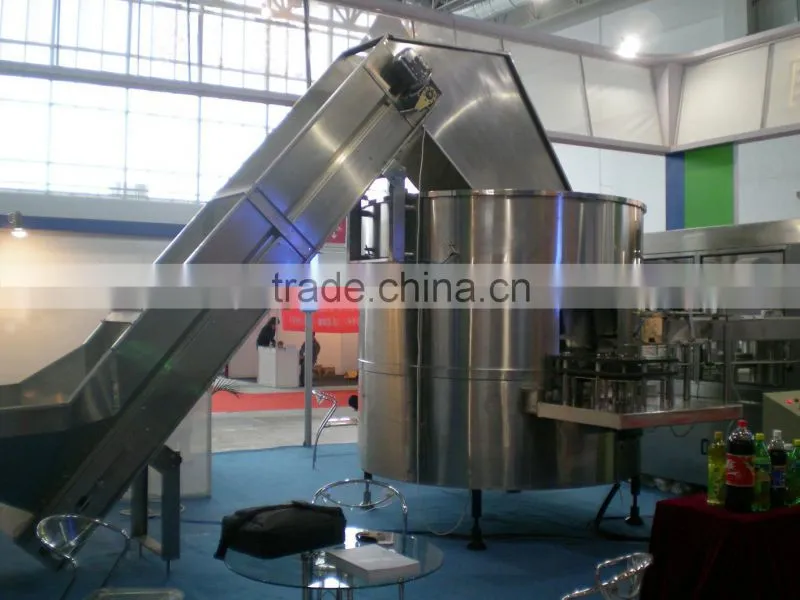

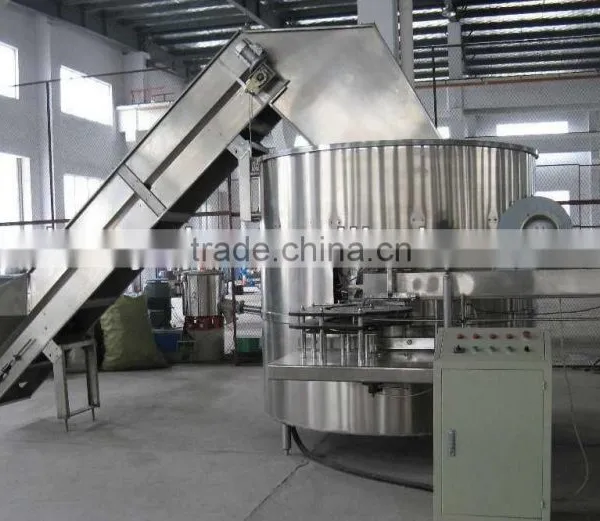

Automatic water bottle unscrambler (PET)
Model: PLP-8
| Procuction capacity | 10000BPH |
| Bottle Type | Round or square shaped bottle |
| Height | 150mm-310mm |
| Diameter | 50mm-90mm |
| Power of main moto | 3.5KW |
| Dimension(LxWxH) | 2300x2210x2300(mm) |
| Total weight | 2000kg |
Usage of Automatic water bottle unscrambler :
Unscramble the plastic bottles,then teansfer them to air conveyor in order and in certain direction and feed them into other equipments to carry out next procedure(for example, feed into washing/filling/capping 3in1 monobloc). It decreases labor intensity and improves productivity, and also prevent from twice pullution caused by handtouching PETbottle.
Main features of Automatic water bottle unscrambler :
1. Outer canister, rotary canister and contact parts with bottles are made of S/S SUS304. Frames are welded with carbon steel of fine quality, with anti-rust treated and sprayed of surface.
2. Body of canister is sealed, and kept with slight positive pressure to prevent dust.
Top of canister is equipped with removable cover, easy to maintain and clean.
3. Equipped with defective bottle rejection device. No need stop to clean up in running condition. The testing switch in the machine will alarm and stop the machine. Operators can dredge it according to signals.
4. Specially designed bottle tank can apply to bottles of dimensions at small difference, no need to change tank to save investment. For example, if you want to change 600ml with 500ml with same diameter, only 30mm shorter, you need not to change the tank, just do some adjustment.
5. The midst of canister is equipped with exit for mold replacing, easy for dismantlement and clean up of bottle tank.
6. The under of canister is equipped with maintenance exit, easy for operators to contact the bottom of machine.
7. Equipped with manual operators.
8. Prefect safeguard device.
9. Bottle-jam inspector is equipped on feed-out star wheels to safeguard machine.
10. Equipped with oil filling port to lubricate the gears, bearings, and cams.
11.Main electrical components (frequency inverter, PLC, photocells and relays) use MITSUBISHI, OMRON products.
