Beer Filling Capping 2-in-1 Monoblock Machine

Beer Filling Capping 2-in-1 Monoblock Machine photo-1
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Other, Food, Beverage, Machinery & Hardware
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai seaport
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Other, Food, Beverage, Machinery & Hardware
Packaging Type Bottles
Packaging Material Glass
Automatic Grade Automatic
Driven Type Hydraulic
Voltage 220V 60HZ
Power 3KW
Place of Origin Jiangsu, China
Brand Name CHENYU
Model Number CGF
Dimension(L*W*H) 2100*1800*2200mm
Weight 3000KG
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Beer Filling Capping 2-in-1 Monoblock Machine
1. Technology from Taiwan
2. Beer in glass bottle and pet bottle
3. fill&cap





Beer Filling Capping 2-in-1 Monoblock Machine





Beer Filling Capping 2-in-1 Monoblock Machine





Beer Filling Capping 2-in-1 Monoblock Machine --Technical Data





Model

Number of washing

filling and capping

Production capacity
Bottle per hour(0.5L)

Applicable bottle

specifications (mm)

Power(kw)

Dimension(mm)

CGF16/16/6

16, 16, 5

2000-4000

0.2L-2L

D=50-108 mm
H=170-340mm

3.58

2100x1400x2500

CGF18/18/6

18, 18, 6

5000-7000

4.68

2460x1720x2650

CGF24/24/8

24, 24, 8

8000-12000

6.58

3100x2100x2650

CGF32/32/8

32, 32, 8

12000-15000

9.68

3500x2500x2650

CGF40/40/10

40, 40, 10

15000-18000

9.68

4600x1800x2650

CGF50/50/12

50, 50, 12

20000-24000

10.8

5200x4500x3400

CGF60/60/15

60, 60, 15

25000-28000

11.28

6500x4500x3400





Beer Filling Capping 2-in-1 Monoblock Machine--Equipments detail





Rinser filler capper monoblock machine



1.This machine works harmoniously with belt-conveyor , It holds the bottles by feeding screw, thus, reducing the possibility of bottles falling over during conveying process.



2.This machine is used to fill beer ,wine, juice into glass bottle and with metal crown capping function.



3.This machine integrated three function: 1. Rinse the empty glass bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

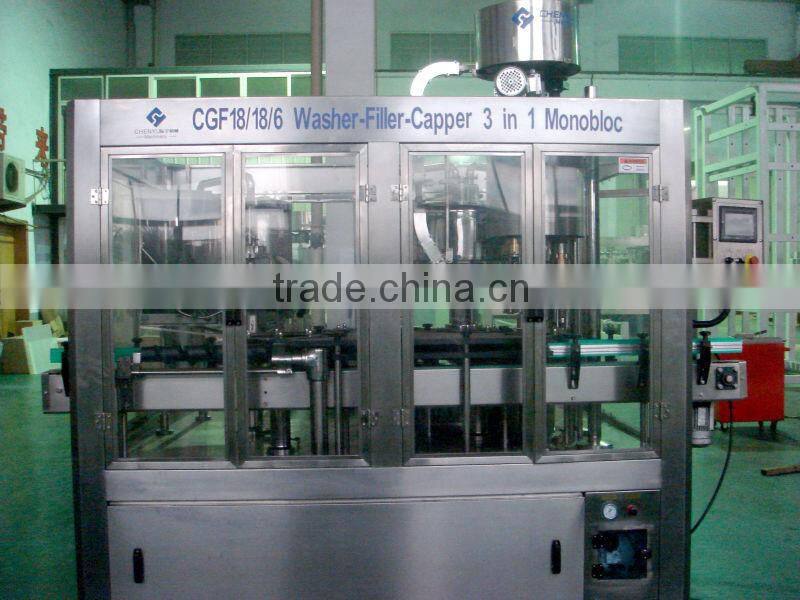

Beer Filling Capping 2-in-1 Monoblock Machine--Real product photoes



Beer Filling Capping 2-in-1 Monoblock Machine

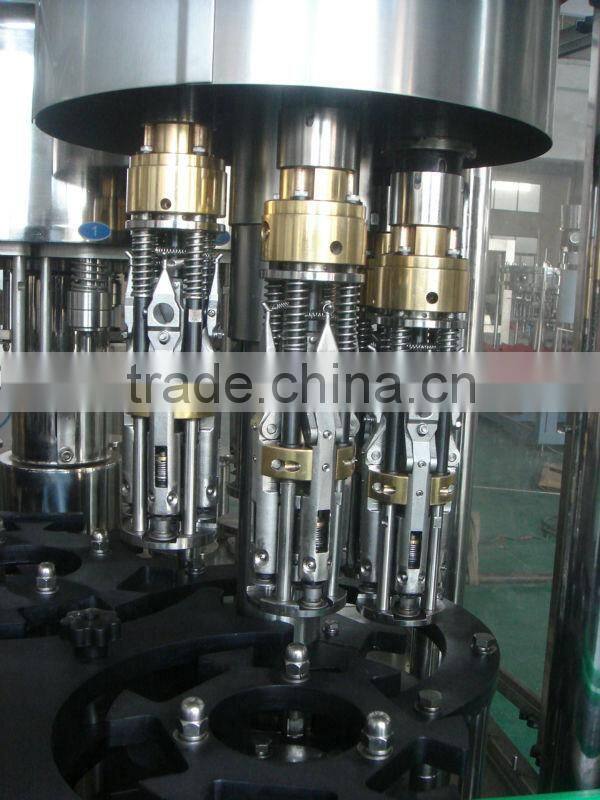

Special design of crown capper





Beer Filling Capping 2-in-1 Monoblock Machine

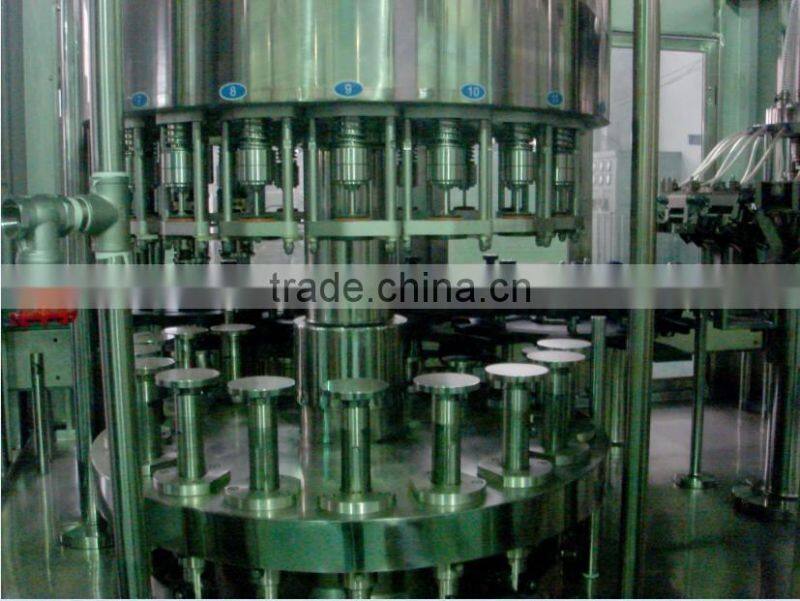

Rinser part



Beer Filling Capping 2-in-1 Monoblock Machine

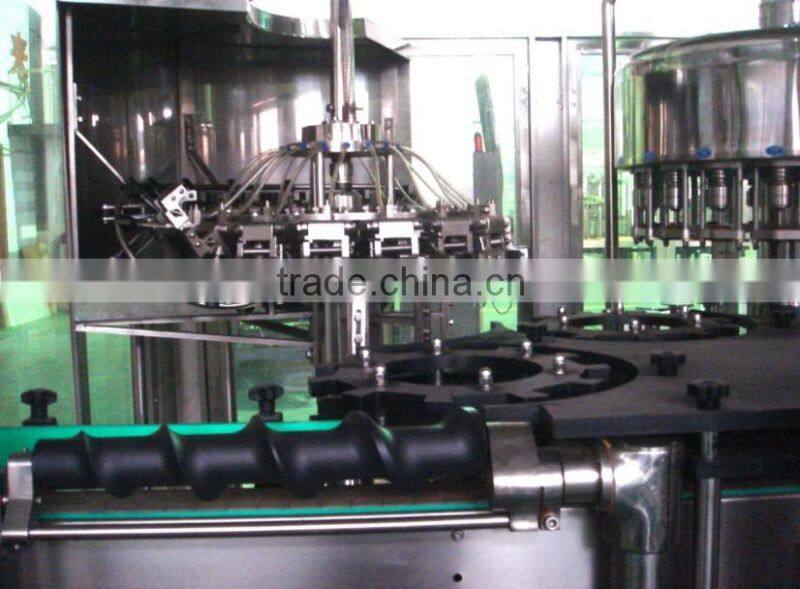

Filler part with bottle bottom cork base



 Beer Filling Capping 2-in-1 Monoblock Machine
