Detailed Product Description Reasonable design and precision-casting. 1. Simple structure,economical and practical .Be widly used in parts' blending,cold extruding ,correcting,pressed loading,punching,pressing and trimming technology. 2. Many kinds of forging techonic ways and work criterions,convenient for clients operation control. 3.Adopt high quality pressurization,improve transmission efficiency,reduce leakage phenomenon.
Simple structure,economical and practical.Be widly used in parts' blending,cold ectruding,correcting,pressed loading,punching,pressing and trimming technology.
Many kinds of forging techonic ways and work criterions,convenient for clients operation control.
Adopt high quality pressurization,improve transmission efficiency,reduce leakage phenomenon.
Preferentically adopt international brand's hydraulic and electrical components,insure the high quality of products.
Can choose displacement or pressure check-up,electro-hydraulic proportional control,and setting device of touch-screen's digital disply equipments.
Independently develop CNC control system of parameter setting,memory,fault detection and remote monitoring functions,also owning copyright.

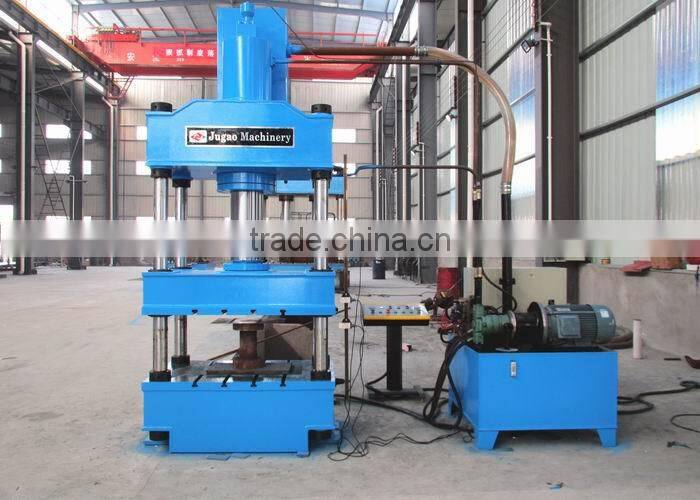

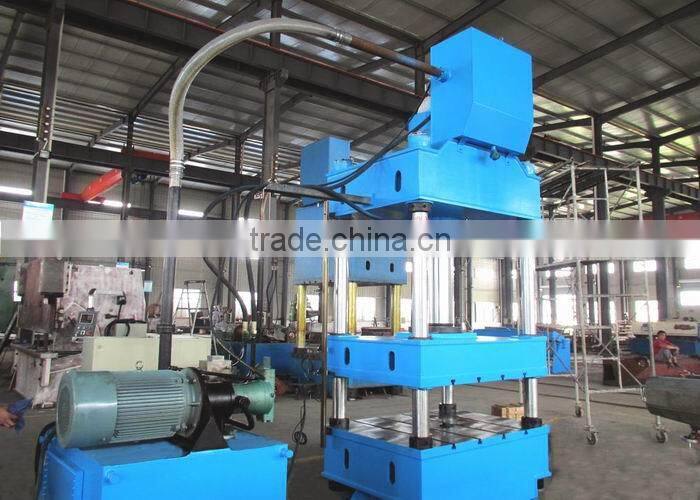

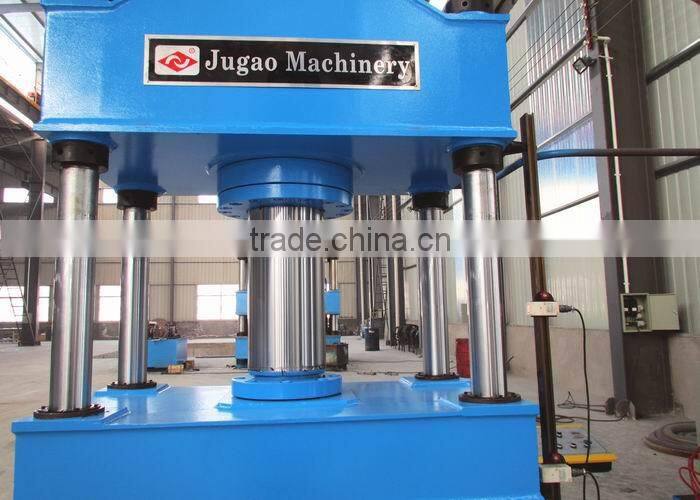

Computer optimize esign,3-beam, 4- column, structure, simple but with high performance ratio.

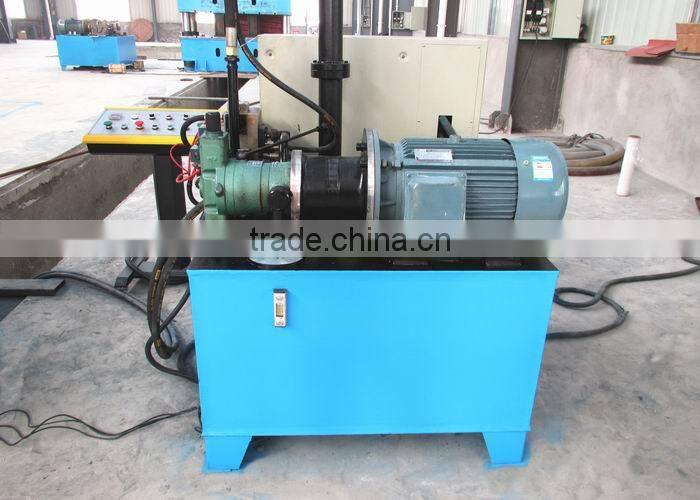

Catridge valve intergral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
Independent electrial control, reliable, audio-visual and convenient for maintenance.

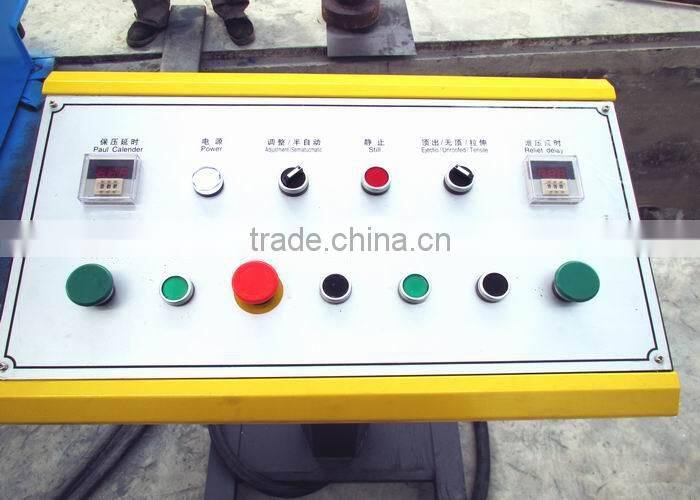

Centralized button control system, with adjustment, hand semi auto operation modes at operator's choice.
Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.
The operating force, no load traveling and low speed movement and travel range can be adjusted subjuce to technological requirements.
This machine is suitable for the range of hydraulic pressing process of metal materials, such as bending, flanging, extrusion, molding,and the correction, press-fit. This machine has independent power sector and electrical systems, the use of centralized control buttons, and a jog, semi-working system. Working pressure of the machine, pressing the speed and range of travel may need to be adjusted within a specified range. And to complete the constant pressure molding process and given two processes shaping the way, in the semi-automaticoperation, the two processes have ways to suppress Paul after rolling and automatic return action.
Item YJG-32 |
Nominal Force (KN) |
Ejecting force (KN) |
Max. working pressure (Mpa) |
Ram stroke (MM) |
Ejecting stroke (MM) |
Max open high (MM) |
Slider speed (MM/S) |

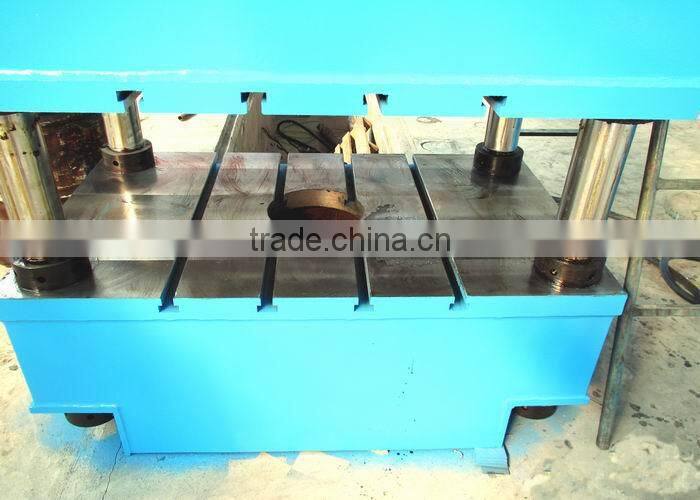

Working table size(MM) |
Dimensions (MM) |
|||
No-load working |
pressing |
return |
FB |
LR |
||||||||
40TON |
400 |
120 |
25 |
450 |
150 |
700 |
20 |
14 |
45 |
500 |
460 |
2000x1300x2600 |
63TON |
630 |
190 |
25 |
500 |
200 |
750 |
20 |
14 |
120 |
580 |
500 |
2400x1400x3100 |
100TON |
1000 |
190 |
25 |
600 |
220 |
880 |
22 |
14 |
47 |
720 |
580 |
2500x1500x2950 |
100BTON |
1000 |
190 |
25 |
600 |
200 |
880 |
120 |
14 |
120 |
720 |
580 |
2500x1500x2950 |
160TON |
1600 |
400 |
25 |
700 |
200 |
900 |
100 |
12 |
70 |
680 |
620 |
2700x1700x3400 |
160BTON |
1600 |
400 |
25 |
700 |
200 |
1000 |
100 |
12 |
70 |
1000 |
800 |
2800z1700x3400 |
200TON |
2000 |
400 |
25 |
700 |
250 |
1100 |
100 |
8 |
52 |
1000 |
900 |
3100x1800x3500 |
315TON |
3150 |
630 |
25 |
800 |
300 |
1250 |
100 |
8 |
60 |
1260 |
1200 |
3235x2060x4295 |
400TON |
4000 |
630 |
25 |
800 |
300 |
1250 |
100 |
7 |
45 |
1240 |
1200 |
3235x2200x4500 |
500TON |
5000 |
1000 |
25 |
900 |
350 |
1500 |
100 |
5 |
70 |
1400 |
1400 |
4060x3520x4995 |
500CTON |
5000 |
1000 |
25 |
900 |
350 |
1500 |
100 |
6 |
70 |
2400 |
1400 |
6500x3800x4740 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
