Uses and Features
• The machine has a wide range of wildcard performance, vertical milling, horizontal milling, boring, drilling and other processing procedures for various bevel, helical surface, trench, arc-shaped grooves, gears, splines, etc..
• Suitable for the maintenance and production of a variety of enterprises, especially suitable for workholding mold manufacturing.

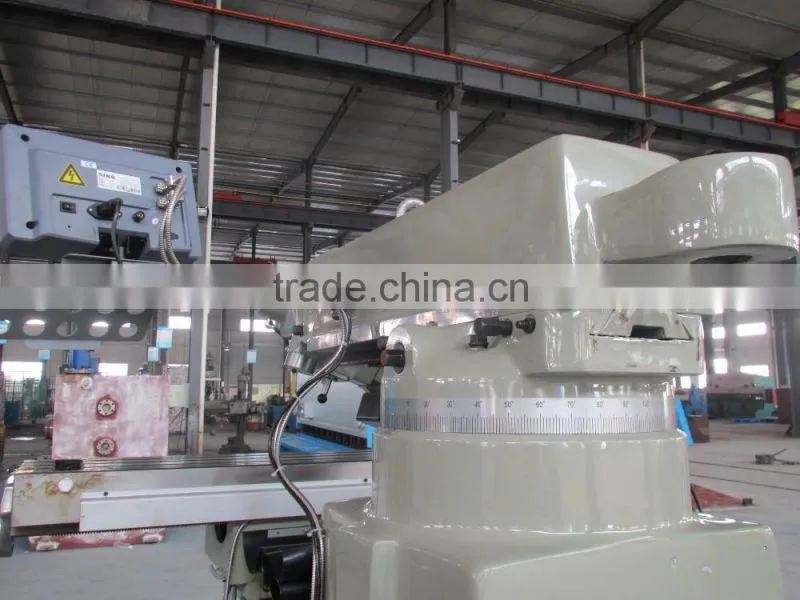

• machine with great flexibility, milling head is mounted on a swing arm can swivel in the vertical longitudinal and transverse vertical plane, the rocker arm to move back and forth on the bed for 360 ° rotation, and thus the range of processing can be greater than the bench area.
• milling head speed is high, especially suitable for small tool to ensure the quality and finish of the workpiece and extend tool life.
• milling head spindle sleeve can be motorized or manual feed, to facilitate drilling, boring, machining.
• The machine is also equipped with a variety of special attachments to suit different parts machining.
The main technical parameters
For the milling head, we choose the 5HP milling head with Φ100mm quill for X6333 and X6333A. 5HP milling head get the better performance than 3HP milling head, which can make the machine more efficiently and profitable. Then we make it happened by changing the design and making the ram structure much more stranger to afford the weight increment.
For the saddle of X6333/A, we select a supper strong saddle, so that to make X6333/A can load much heavier than X6323 and X6325. The loading weight of X6333/A is 350KG.
NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
Specification |
X6325A/JG4S |
X6325C/JG5S |
X6333/JG6S |
X6330/JG7S |
Working table size(mm) |
1270×254 |
1370x305 |
1370x330 |
1370x305 |
Lift and right travel (mm) |
900 |
1000 |
1000 |
1000 |
Front and back travel (mm) |
400 |
400 |
410 |
500 |
Rise and fall travel(mm) |
400 |
400 |
380 |
500 |
Arm travel (mm) |
380 |
380 |
500 |
500 |
Spindle Taper |
R8 |
R8 |
R8 |
R8 |
Spindle diameter(mm) |
85.725 |
85.725 |
85.725 |
85.725 |
Spindle turn speed(rpm) |
80-5400 |
80-5400 |
80-5400 |
80-5400 |
Spindle feed speed(mm) |
0.04/0.08/0.15 |
0.04/0.08/0.15 |
0.04/0.08/0.15 |
0.04/0.08/0.15 |
|
Milling hear inclination angle(°) |
±45° F-B ±90° L-R |
±45° F-B ±90° L-R |
±45° F-B |
±45° F-B |

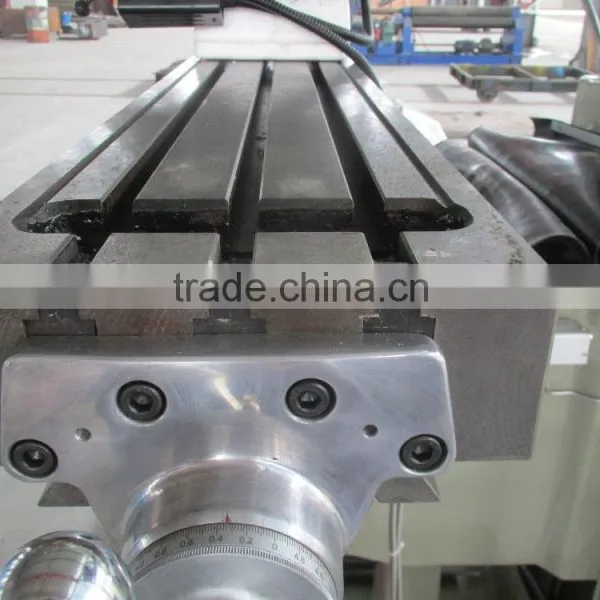

T groove size (mm) |
16x3x55 |
16x3x80 |
16x3x100 |
16x3x150 |
Working table max load(kgs) |
300 |
350 |
400 |
600 |
Main motor power(Kw) |
3 |
3 |
5 |
5 |
Overrall dimensions(mm) |
1550×1750×2150 |
1550x1800x2200 |
1600x2000x2400 |
2000x2000x2750 |
Net weight (kg) |
1300 |
1650 |
2300 |
2700 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
