Self Service Touch Screen Kiosk Machine With A4 Printer
US$ 2,100 - 3,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FTY VIEW
Model Number:
FTY-17
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
19" Touch Screen Ticket Kiosk With Printer and Swipe Card Reader Supplier's ChoiceUS$ 2,300 - 3,400MOQ: 1 Piece -
Reliable Trust Please Choose Self-service Terminal KioskUS$ 2,100 - 3,600MOQ: 1 Piece
-
The Cinema Online Self-service Ticketing Self-help Collect the Tickets Self-service Terminal KioskUS$ 1 - 2,500MOQ: 1 Piece
-
Bill Acceptor Payment Kiosk/ATM Machine With Bill Acceptor, Self-service Touch Screen KioskUS$ 200 - 3,500MOQ: 1 Piece
-
Cash Payment Kiosk With Bill Acceptor,card Reader Bill Payment Kiosk Machine,self-service Payment KioskUS$ 200 - 3,500MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
FTY VIEW
Model Number
FTY-17
Type
TFT
Application
Indoor
Panel Size
15,17,19 Inch
Max Resolution
1366*768
Viewing Angle
178 /178
Pixel Pitch
0.63(H)*0.63(V)
Color
16.7M, Silver/White/Gold/Black/Blue
Contrast Ratio
3000: 1
Brightness
450cd/m2
Response Time
5ms
Input Voltage
AC 110V~240V
|
Product Description
Self Service Touch Screen Kiosk Machine With A4 Printer
| ||
|
LCD Panel
|
Type of Display | TFT-LCD |
| Panel Size | 15,17,19 Inch(Optioan from 15 inch to 98 inch) |
|
| Display Ratio | 16:9 | |
| Resolution | 1366*768 | |
| Brightness | 450cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Viewing Angle | H:178° V:178° | |
| Panel Life | About 60000 hours | |
| Response Time | 5 ms | |
|
Android OS |
OS | Android4.4.4 |
| CUP |
RK3188, eight-core ARM Cortex A7 2.0 GHz |
|
| GPU | PowerVR SGX544 |
|
| RAM | DDR 2GB | |
| Built-in storage capacity | 8GB | |
| WIFI | WIFI module+WIFI Antenna | |
| Camera |
5 million Pixel |
|
| Multi media system | Optional | |
| Windows OS | OS | Windows 7/8/10 or Linux |
| CPU |
Intel Core i3-3110M, 2.4GHz |
|
| Graphics | Intel HD Graphics 4000 | |
| RAM | DDR3, 4GB | |
| HDD | 500GB | |
| WIFI | WIFI module+WIFI Antenna | |
| Multi media system | Optional | |
| Touchtech | Option 1 | Infrared 6 touch points |
| Option 2 | Capacitive 10 touch points |
|
| File formate |
Video | AVI/MOV/MP4/5GP/MPG/VOB/DAT/TS |
| Image | JPG/JPEG/PNG/BMP ETC | |
| Audio | MP3/ACC/WMA ETC | |
| Scrolling Text | ROL(UNICODE) | |
| Input/output interface | USB,HDMI,VGA,RJ45 | |
| Thermal Printer | Mechanism | EPSON M-T532 |
| Printing method | thermal dot line printing | |
| Thermal dot line printing | 640 dots/line | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Paper loading | easy paper loading | |
|
Swap card reader |
Card Type | Magcard, IC Card, RF Card, Mifare Card, UL Card |
| Touch screen | infrared | |
| Interface | RS232/USB | |
| Card Entry Method |
Signal of Magnetic, Optoelectronic and rear card |
|
| Main Hardware | Shell Material | Metal shell + Aluminum Alloy frame + toughened glass |
| Suface | Metal case with powder burning;Tempered glass to protect LCD panel | |
| Speaker | 2*10W built-in stereo speakers | |
| Heat Dispersion | Built-in DC fans | |
| Power | Standby | ≤3W |
| Working | 30W-180W | |
| Power supply | AC 110V - 240V, 50/60HZ | |
| Storage Temperature | -7℃ to 65℃ | |
| Normal Working Temperature | -5℃ to 65℃ | |
Product feature
| *Support High resolution content file, MAX to 1080P; |
| *Supported Video file: MPEG-4/MPEG2,H.264/H263,VC-1,DivX etc. |
| *Supported Audio file: MP3, WMA; |
| *Supported Picture file: JPEG, PNG, BMP; |
| *Supported Text file: TXT,XML; |
| *Storage: SD card and U DISK, MAX to 32GB; |
| *Language: Chinese, English, more than 18 languages are available; |
| *Support Vertical and Horizontal |

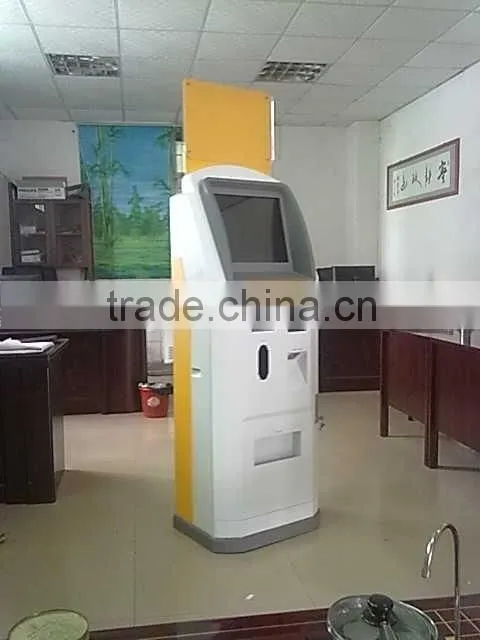

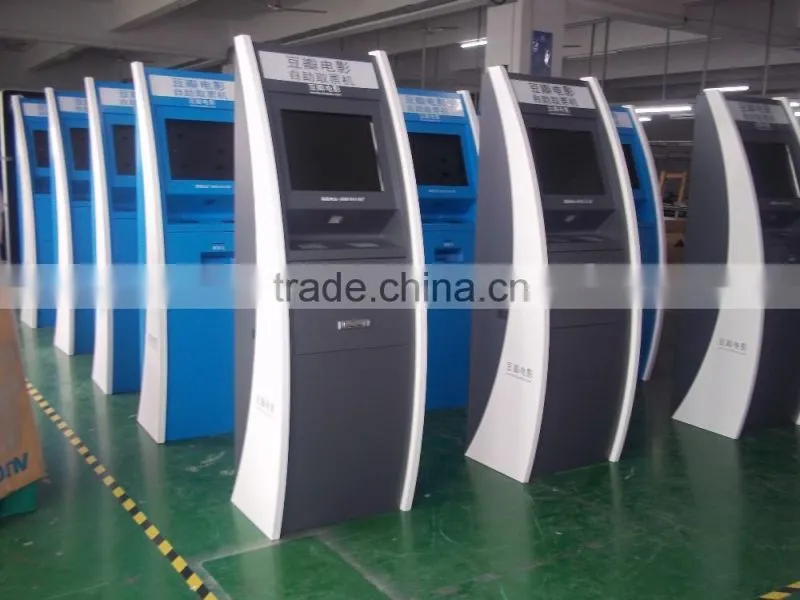

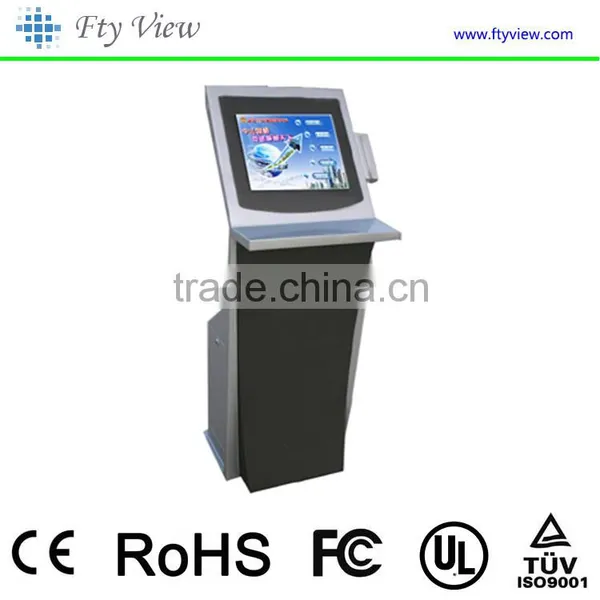

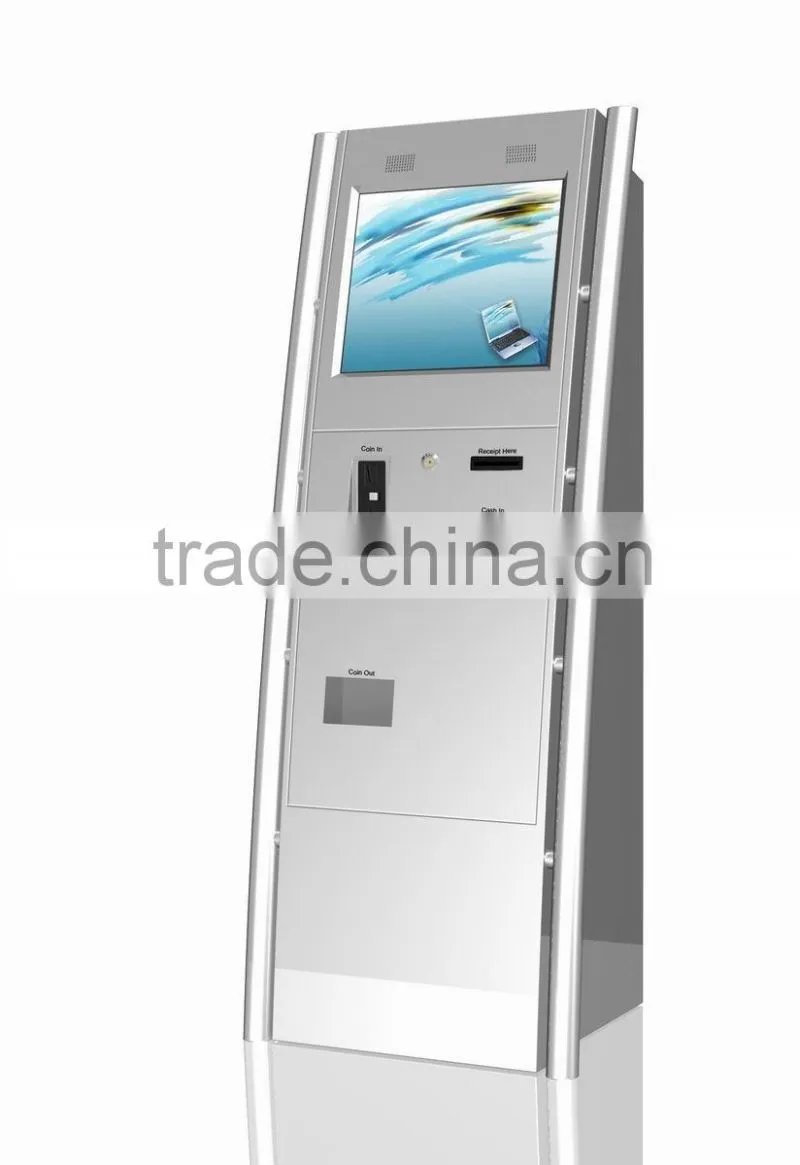

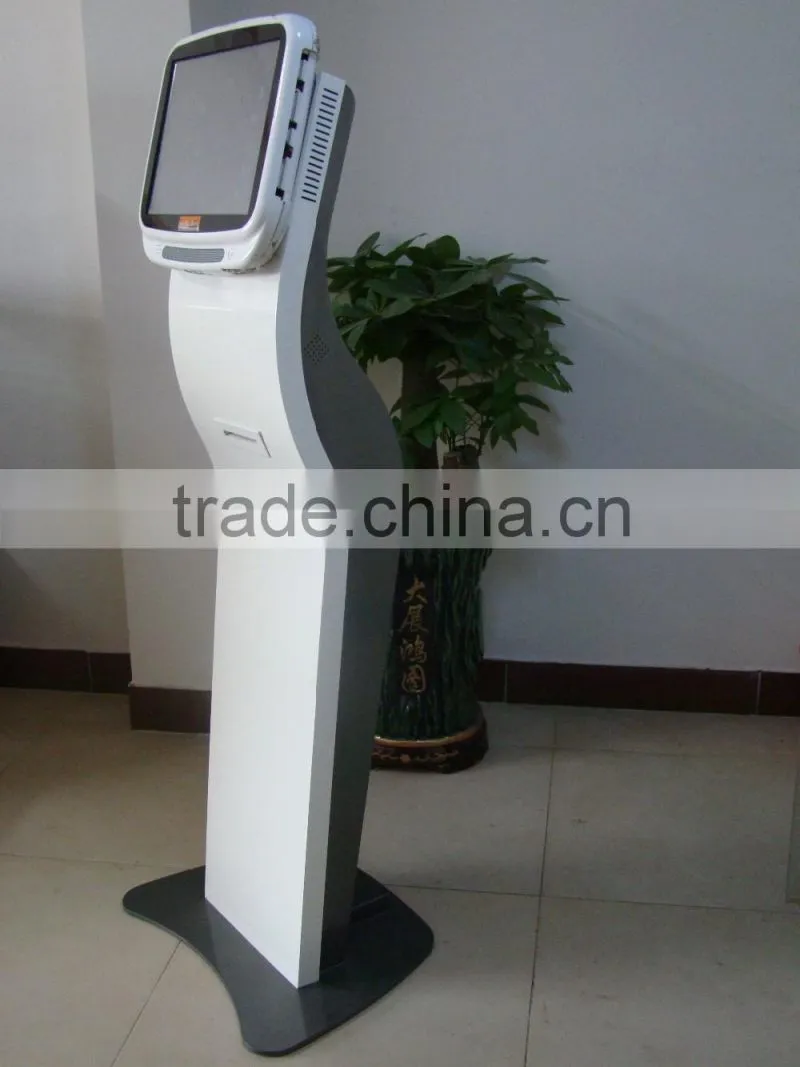

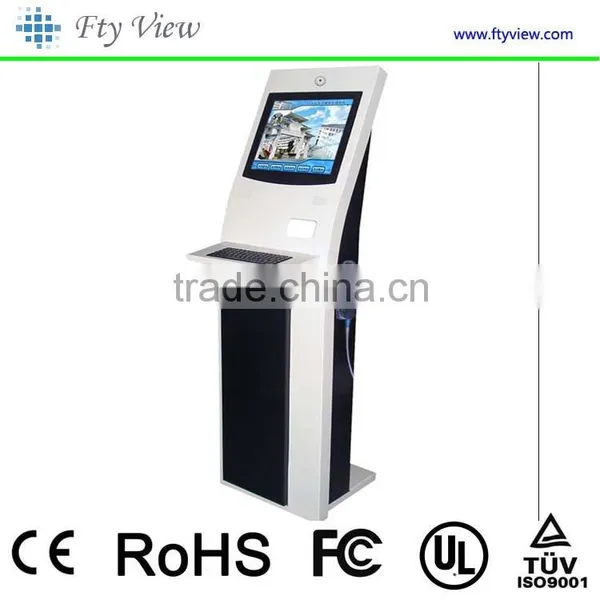

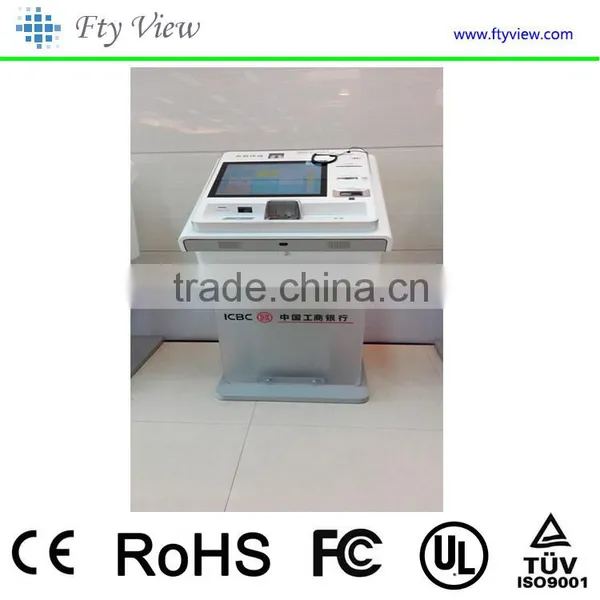

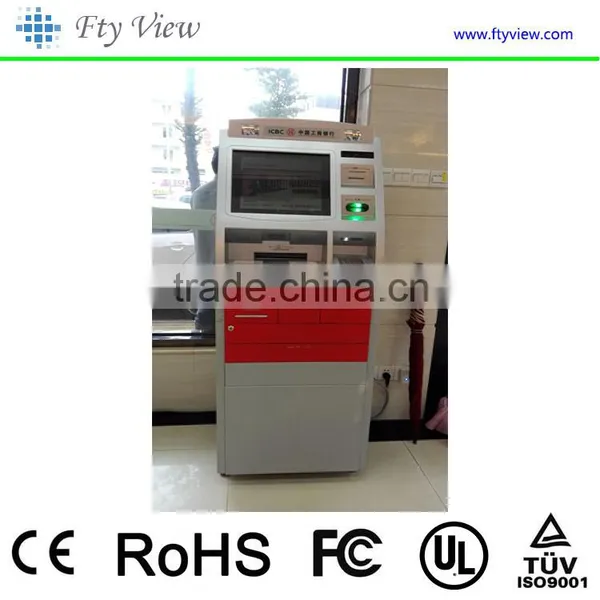

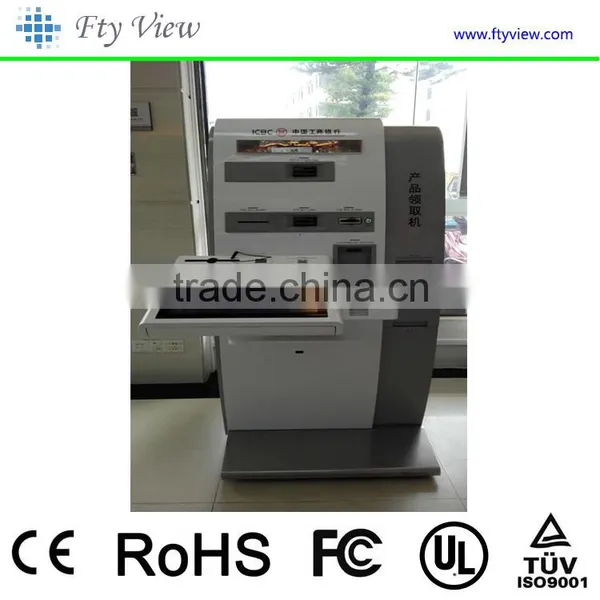

Product show
Product Application
Business product promotional display |
supermarket, large-scale shopping malls, exclusive agency, |
| chain shops, large-scale sales, star- | |
| rated hotels,restaurants, travel agencies, pharmacy. | |
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; |
| Non- profit Organizations: Telecommunications, post offices, hospital, schools; | |
|
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, |
| stadiums, museums,convention centers, ticket agencies, HR market, lottery centers; | |
| Real Estate Property: Apartments, villas, offices, | |
| commercial buildings, model rooms, property brokers; | |
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, |
| Internet bars, beauty shops, golf course |
