Self Service Touch Screen Kiosk Machine With Payment Function

Shenzhen Fantasy View Technology Co., Ltd.
Self Service Touch Screen Kiosk Machine With Payment Function thumbnail-1
Self Service Touch Screen Kiosk Machine With Payment Function thumbnail-2
Self Service Touch Screen Kiosk Machine With Payment Function thumbnail-3
Self Service Touch Screen Kiosk Machine With Payment Function thumbnail-4
Self Service Touch Screen Kiosk Machine With Payment Function thumbnail-5
Self Service Touch Screen Kiosk Machine With Payment Function thumbnail-6
Self Service Touch Screen Kiosk Machine With Payment Function photo-1
Self Service Touch Screen Kiosk Machine With Payment Function photo-2
Self Service Touch Screen Kiosk Machine With Payment Function photo-3
Self Service Touch Screen Kiosk Machine With Payment Function photo-4
Self Service Touch Screen Kiosk Machine With Payment Function photo-5
Self Service Touch Screen Kiosk Machine With Payment Function photo-6
US$ 2,100 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FTY VIEW
Model Number:
FTY-17
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FTY VIEW
Model Number FTY-17
Type TFT
Application Indoor
Panel Size 15,17,19 Inch
Max Resolution 1366*768
Viewing Angle 178 /178
Pixel Pitch 0.63(H)*0.63(V)
Color 16.7M, Silver/White/Gold/Black/Blue
Contrast Ratio 3000: 1
Brightness 450cd/m2
Response Time 5ms
Input Voltage AC 110V~240V



Product Description



Self Service Touch Screen Kiosk Machine With Payment Function



                LCD         Panel



Type of DisplayTFT-LCD
Panel Size15,17,19 Inch
Display Ratio16:9
Resolution1366*768
Brightness450cd/m2
Contrast Ratio3000:1
Viewing AngleH:178°  V:178°
Panel LifeAbout 60000 hours
Response Time5 ms






 Android       OS




OSAndroid4.4.4
CUP
 RK3188, eight-core ARM Cortex A7 2.0 GHz
GPU PowerVR SGX544
RAMDDR 2GB
Built-in storage capacity8GB
WIFIWIFI module+WIFI Antenna
Camera
 5 million Pixel
Multi media systemOptional
 Windows        OSOSWindows 7/8/10 or Linux
CPU
 Intel Core i3-3110M,  2.4GHz
GraphicsIntel HD Graphics 4000
RAMDDR3, 4GB
HDD500GB
WIFIWIFI module+WIFI Antenna
Multi media systemOptional
 TouchtechOption 1Infrared 6 touch points
Option 2 Capacitive 10 touch points

    File  formate


VideoAVI/MOV/MP4/5GP/MPG/VOB/DAT/TS
ImageJPG/JPEG/PNG/BMP ETC
AudioMP3/ACC/WMA ETC
Scrolling TextROL(UNICODE)
Input/output interfaceUSB,HDMI,VGA,RJ45
 Thermal  PrinterMechanismEPSON M-T532
Printing methodthermal dot line printing
Thermal dot line printing640 dots/line
Paper width80mm
Printing speed150mm/s
Paper loadingeasy paper loading

   Swap       card

  reader

Card TypeMagcard, IC Card, RF Card, Mifare Card, UL Card
Touch screeninfrared
InterfaceRS232/USB
Card Entry Method
 Signal of Magnetic, Optoelectronic and rear card
     Main HardwareShell MaterialMetal shell + Aluminum Alloy frame + toughened glass
SufaceMetal case with powder burning;Tempered glass to protect LCD panel
Speaker2*10W built-in stereo speakers
Heat DispersionBuilt-in DC fans
    PowerStandby≤3W
Working30W-180W
Power supplyAC 110V - 240V, 50/60HZ
Storage Temperature-7℃ to 65℃
Normal Working Temperature-5℃  to 65℃
Product feature
*Support High resolution content file, MAX to 1080P;
*Supported Video file: MPEG-4/MPEG2,H.264/H263,VC-1,DivX etc.
*Supported Audio file: MP3, WMA;
*Supported Picture file: JPEG, PNG, BMP;
*Supported Text file: TXT,XML;
*Storage: SD card and U DISK, MAX to 32GB;
*Language: Chinese, English, more than 18 languages are available;
*Support Vertical and Horizontal

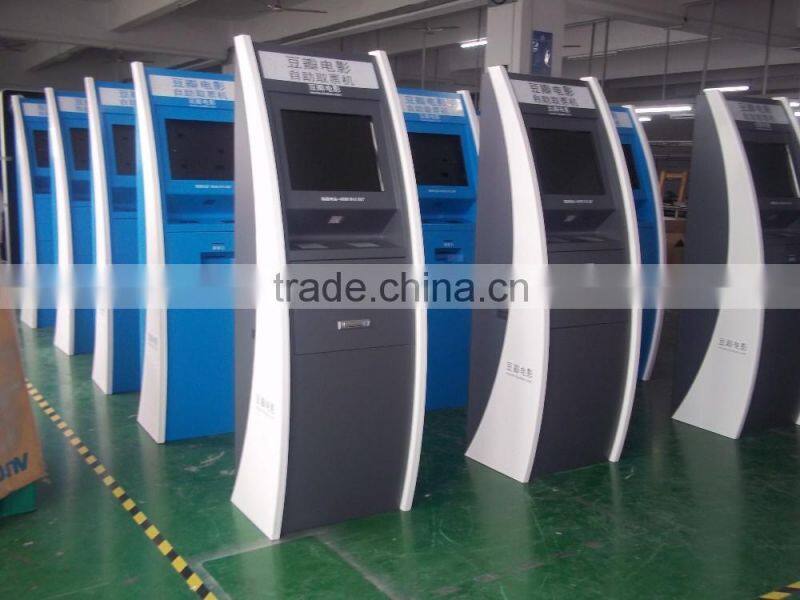

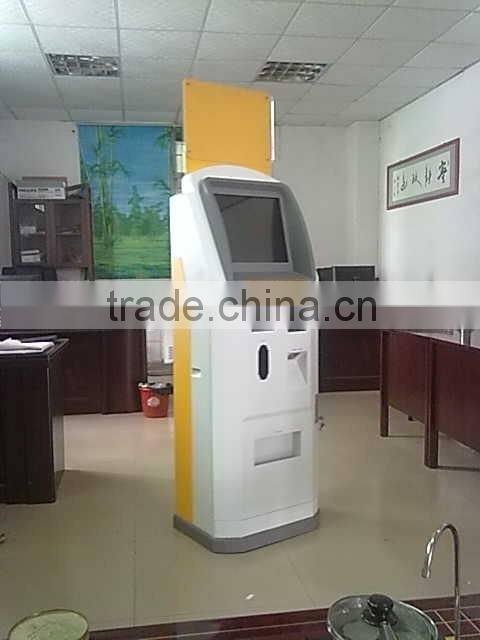

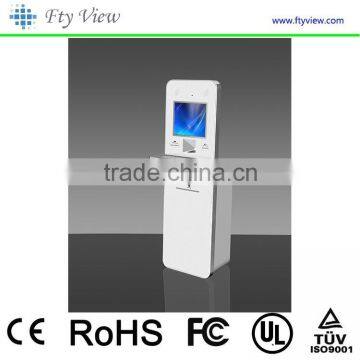

Product show

 Self Service Touch Screen Kiosk Machine With Payment FunctionSelf Service Touch Screen Kiosk Machine With Payment FunctionSelf Service Touch Screen Kiosk Machine With Payment FunctionSelf Service Touch Screen Kiosk Machine With Payment Function









Product Application

Business product promotional display

supermarket, large-scale shopping malls, exclusive agency,
chain shops, large-scale sales, star-
rated hotels,restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non- profit Organizations: Telecommunications, post offices, hospital, schools;



Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices,
commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes,
Internet bars, beauty shops, golf course

Packaging&Shipping
