Self-service Ticket Machines Terminal Kiosk

Self-service Ticket Machines Terminal Kiosk photo-1
Self-service Ticket Machines Terminal Kiosk photo-2
Self-service Ticket Machines Terminal Kiosk photo-3
Self-service Ticket Machines Terminal Kiosk photo-4
US$ 200 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FTY VIEW
Model Number:
FTY-17
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name FTY VIEW
Model Number FTY-17
Type TFT
Application Outdoor
Panel Size 15, 17, 19 inch
Response Time 5ms

Product Description



Touch screen self-service ticket machines terminal kiosk





            LCD

 Panel



Type of Display TFT-LCD
Panel Size 15, 17, 19 inch
Display Ratio 4:3 or 16:9
Response Time 5 ms








Windows      OS




CUP Intel® i3-3220
Graphics Intel HD Graphic 2500
RAM DDR 3,4GB
HDD 500GB
WIFI WIFI module+WIFI Antenna
Multi media system Available



Touchtech


Option 1

Infrared 6 touch points
Option 2
Capacitive 10 touch points
     Main components Card Reader Card Type: Magcard, IC Card, RF Card, Mifare Card, UL Card
Interface: RS232/USB
Card Entry Method: Signal of Magnetic, Optoelectronic and rear card

Encrypted Pin Pad

Key Life Span: 2,000,000 cycles
Key Force: 2-3N
Key Trip: >2.5mm
Protection Level: IP65





Bill Acceptor


Brand: Cash Code/ MEI/ ITL/ICT
Validation Rate: High than 96%
Capacity: 600notes~1500notes
Thermal Printer Brand: Epson/Custom/Citizen
Auto-cutter: Included
Width of Paper: 50mm/80mm/112mm
Printing Speed: 150mm/s
Buffer of Data: 4Kb
nterface: RS232/USB

Optional component

A4 Printer, Coin acceptor, UPS, Web-camera etc
     Main Hardware Shell Material Metal shell + Aluminum Alloy frame + toughened glass
Suface Metal case with powder burning;Tempered glass to protect LCD panel
Speaker 2*10W built-in stereo speakers
Heat Dispersion Built-in DC fans
    Power Standby ≤3W
Working 30W-180W
Power supply AC 110V - 240V, 50/60HZ
Storage Temperature -7℃ to 65℃
Normal Working Temperature -5℃  to 65℃
Product feathur



Multi-pay methods: Accepting cash, coin, debit cards, credit cards, checks.
7x24 hours running; Save labor cost and employee time of your organization
Ticketing & payment secure and card issuing solution
User-friendly; easy to maintenance

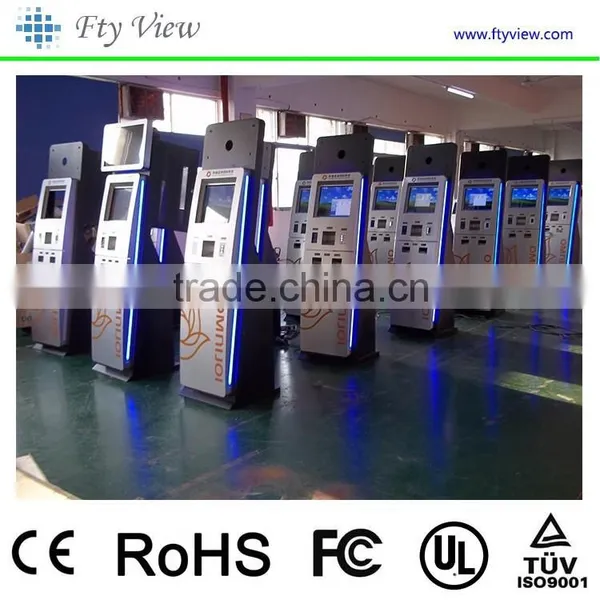

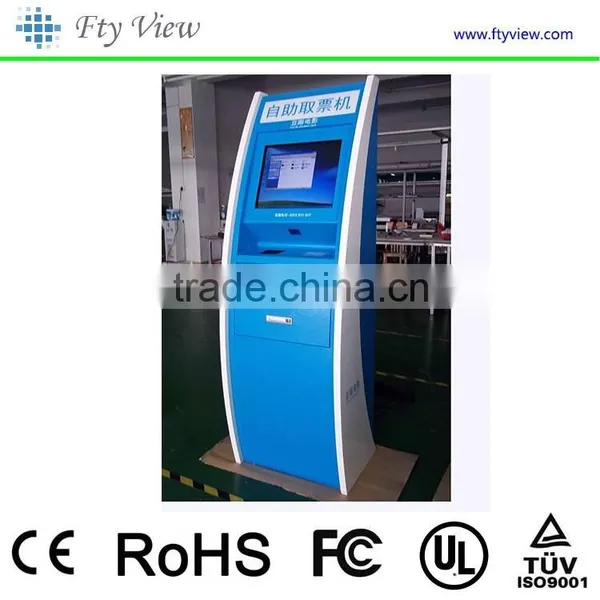

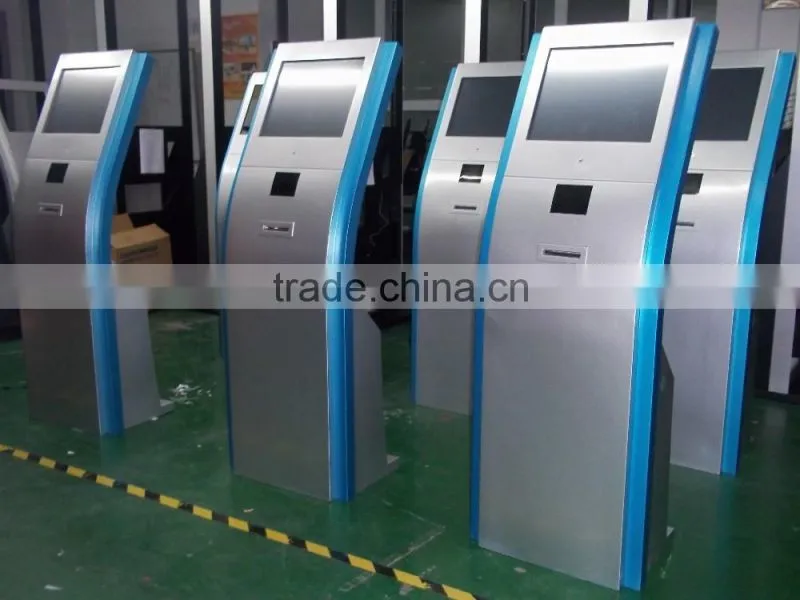

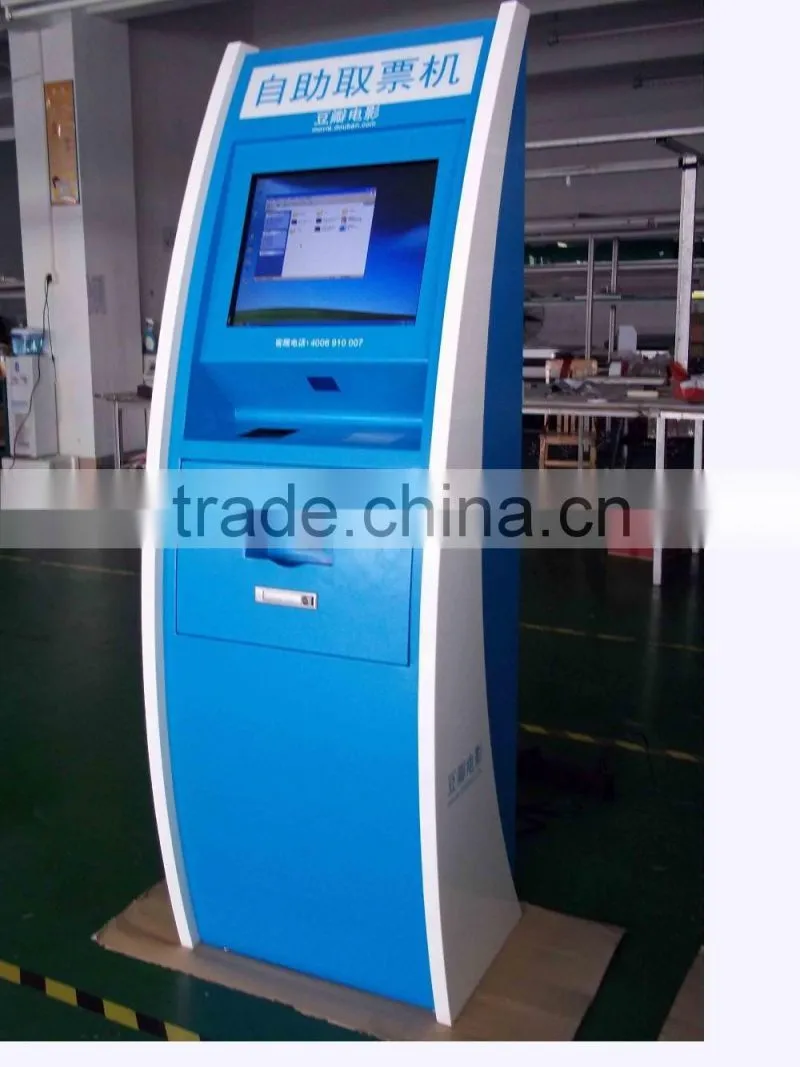

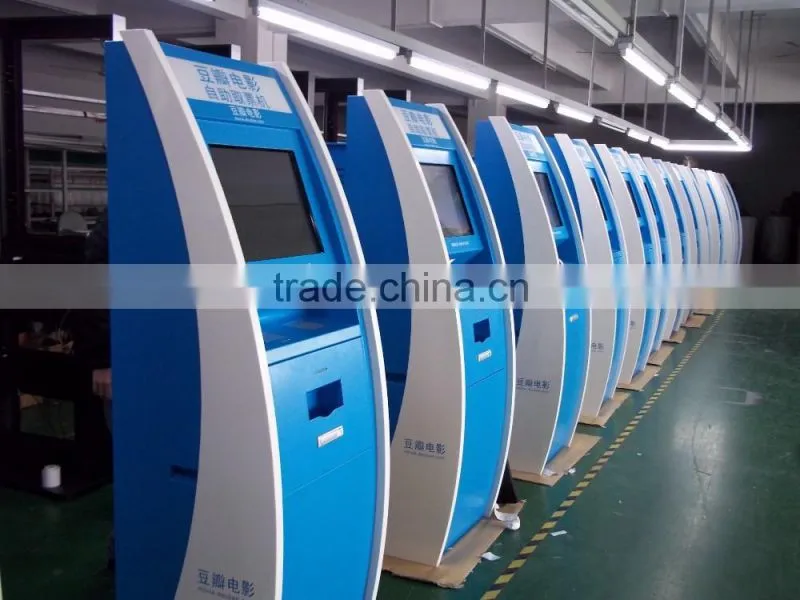

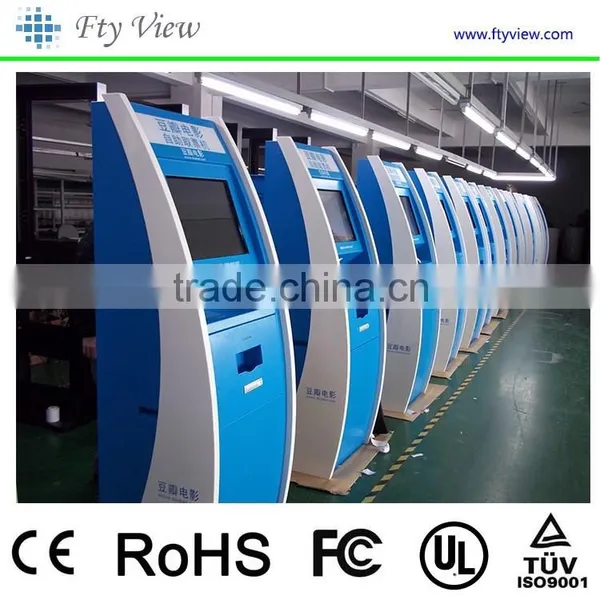

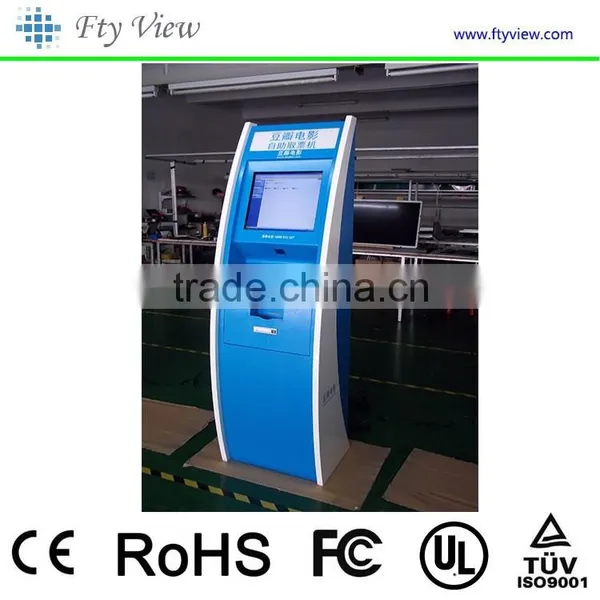

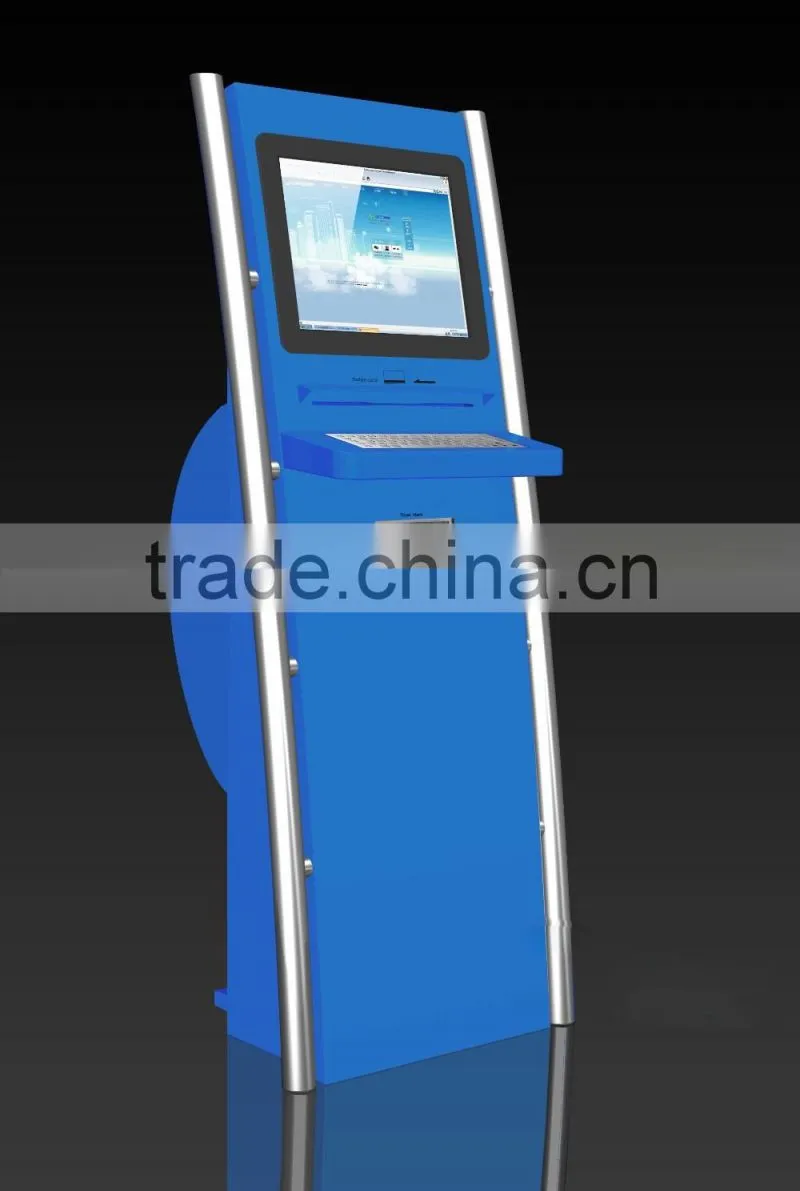

Product show

self-service ticket machines terminal kioskself-service ticket machines terminal kioskself-service ticket machines terminal kioskself-service ticket machines terminal kiosk

Product Application

Business product promotional display

supermarket, large-scale shopping malls, exclusive agency,
chain shops, large-scale sales, star-
rated hotels,restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non- profit Organizations: Telecommunications, post offices, hospital, schools;



Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices,
commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes,
Internet bars, beauty shops, golf course
