Help CenterSFU1204 Stepper Motor Trapezoidal Acme Ground Lead Screw
Related Products
-
SFU1610 Acme Lead Screw Ball ScrewUS$ 5 - 50MOQ: 1 Meter -
SFU1204 Bearing Steel Gcr15 Acme Ball Lead ScrewUS$ 5 - 50MOQ: 1 Meter
-
SFU1610 China 5mm Acme Lead ScrewUS$ 5 - 50MOQ: 1 Meter
-
SFU1610 Acme Trapezoidal Stepper Motor Lead ScrewUS$ 5 - 50MOQ: 1 Meter
-
SFU2505 Rolled Thread Manufacturing Process Ball Screw With Acme NutsUS$ 5 - 50MOQ: 1 Meter
General Infor Of SFU1204 stepper motor trapezoidal acme ground lead screw |
|
|
|
|
| Model No. :SFU1204 | Model No. :SER-GD15NA | Model No. :SER-GD15WA | Model No. :SER-GD20NAL |
| Ball screw | Linear Guide Rail | Flanged slider linear guide | lengthened carriage linear motion guide rail |
| Max Lengeh Of Screw:4000mm | Max Length Of Single Guide:2500mm | Max Length Of Single Guide:2500mm | Max Length Of Single Guide:3500mm |
The SFU1204 stepper motor trapezoidal acme ground lead screw is an assembly that converts rotary motion to linear motion (or vice versa). SFU1204 stepper motor trapezoidal acme ground lead screw consists of a ball screw and a ball nut packaged as an assembly with recirculating ball bearings.
The interface between the ball screw and the nut is made by ball bearings which roll in matching ball forms. With rolling elements, the ball screw drive has a very low friction coefficient and is typically greater than 90% efficient. The forces transmitted are distributed over a large number of ball bearings, giving a low relative load per ball comparatively.
Highlights Of SFU1204 stepper motor trapezoidal acme ground lead screw |
1.Offers low cost, high precision performance in applications typically requiring ground screws
2.Smooth and quiet running due to superior surface finish
3. DIN standard flanged and cylindrical ball nuts available
4.No hard spots in the screws that can mar the ball surfaces and shorten screw life.
1.Lead accuracy available from ±23µm/300mm to ±50µm/300mm
2.Single nut preload up to 3% of dynamic capacity standard. Double nut preloads available to 10% of dynamic capacity.
Technical Parameter Of SFU1204 stepper motor trapezoidal acme ground lead screw |
Model No. |
SFU1204 |
Direction of helix |
Right or Left |
Produce code |
Grounding or Rolled |
Flange type |
Not cutting Single cutting Double cutting |
Accuracy grade |
C0,C1,C2,C3,C5,C7,C10 |

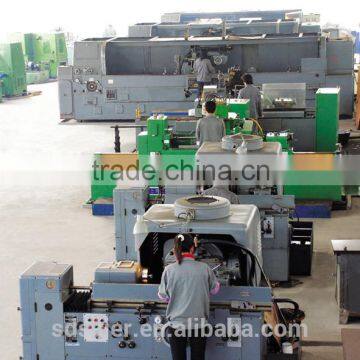

Factory Show Of SAIER |
About SAIER Brand |
SAIER has continued to lead the industry in the China mainland ever since. The SAIER brand is recognized and trusted as the global leader in linear motion technology.
Quality To Be Guaranteed |
SAIER promise to:
SAIER Product quality standards are guaranteed. Our products SFU1204 stepper motor trapezoidal acme ground lead screw have got ISO 9001 & CE international quality management system. They all produced with best advanced technology. We are proactive and we offer only products complying with top standards of quality and warranty.
Certification |
Packing & Transportation |
SAIER Brand has Responsive manufacturing and delivery times.
About Shipping:
1.FedEX/DHL/UPS/TNT etc.
2.By Sea freight or air freight.
Contact Us |
Ms. Panda Lu
Shandong Saier Mechnaical Guide Co.,Ltd
Skype: Pandalu8251
WhatsApp/Mob:+8613065071335
