Specifications
The product can be used for long time with good quality and reasonable price. We have exceed 20years' producing experience.12V12ah Sealed Rechargeable Medical Equipment Valve Regulated Lead-Acid Battery
1. Valve regulated lead acid battery;
2. 5 years in standy service;
3. 400 cycles at 50% DOD in cycle service;
"VC" series is a general purpose battery with 3-5 years in standby service or more than 400 cycles at 50% depth of discharge in cycle service.
| NOMINAL VOLTAGE | : 12V |
| NOMINAL CPACITY(20hr) | : 12Ah |
| DIMENSIONS | |
| TOTAL HEIGHT | : 100mm ( 3.94 inches ) |
| CONTAINER HEIGHT | : 94mm ( 3.70 inches ) |
| LENGTH | : 151mm ( 5.94 inches) |
| WIDTH | : 98mm ( 3.86 inches) |
| WEIGHT | : 4.2kg |
| CONTAINER MATERIAL | : UL94HB ABS |
| : UL94V-0 ABS | |
| INTERNAL RESISTANCE ( 25°C,77°F) | : ~14mΩ |
| DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES | |
| 40°C | : ~102% |
| 25°C | : ~100% |
| 0°C |
: ~85% |
The battery could be charged by solar and others, keep UBS connector, improving life convince.
* Valve regulated lead acid battery.
* Valve regulated design with close to 100% gas recombination during float charging.
* AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
* Maintenance-free operation - no addition of water to the electrolyte is required.
* Corrosion resistant high current drain grid achived by a lead-tin-calcium alloy.
* Heavy duty grids resulting in high performance and durability.
* Wide range of operating temperatures with temperature compensated charging.
* Excellent charging efficiency.
* Classified as "non-spillable" and therefore exempt from IATA Dangerous Goods Regulations.
* Excellent cyclability properties (at normal depths of discharge), batteries may meet or exceed 1000 discharge/charge cycles.
* Extended service life due to low self-discharge levels.
Sealed Lead Acid Battery / Reachareable Battery
Packing Detail: 4 pieces in one carton or 5 pieces
Size: 150mm*97mm*97mm
Nominal Capacity: 12 AH
Color: Blue, Green, Black or as customers required
Applications: Emergency lighting equipment UPS power tool; Fire alarm and security system ride-on toy cars. UPS (Uninterruptible Power Supply) Power tool; Electric Vechicle, like wheelchair Power Generator; Photovoltaic Solar System Medical equipment; Telecommunication system Marine Application
FEATURES:
1) Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of Double Tech batteries, no need to check the specific gravity of the electrolyte or add water.
2) Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
3) Long Service Life
A unique corrosion-resistant grid alloy ensures Double Tech batteries have long service life.
4) Low Self Discharge
Using high purity raw materials ensures Double Tech batteries have less self-discharge.
5) Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
6) Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.
APPLICATIONS AND MAINTENANCE:
1) It’s Sealed Valve Regulated with none requirement to add extra water or
maintenance when using
2) Excellent High-Rate Discharge Performance: Being propitious to start with high
current
3) Recharging: when open circuit voltage is lower than 12.6V(12V series) or 6.3V(6V
series) before using
Recharging Method: Charging 4-10 hours by 0.1C10 constant current
4) Charging Voltage, when normal using, is 12.8V-14.5V(12V series) or 6.9-7.2V and
Max Charging Current 0.4-0.5C10(A)
5) Application Temperature: -20-60°C
6) Not upside down when transporting, storing and using
7) Recharging: Offloading the battery to recharge when e-bike could not start well,
poor lamp lighting and weak trumpet
8) Timely Recharging if long time no use. Normally, it’s 1-2months.
Storage place should be prevented from humidity, high temperature and avoid to
keep in the place of corrosive gas and solvent.

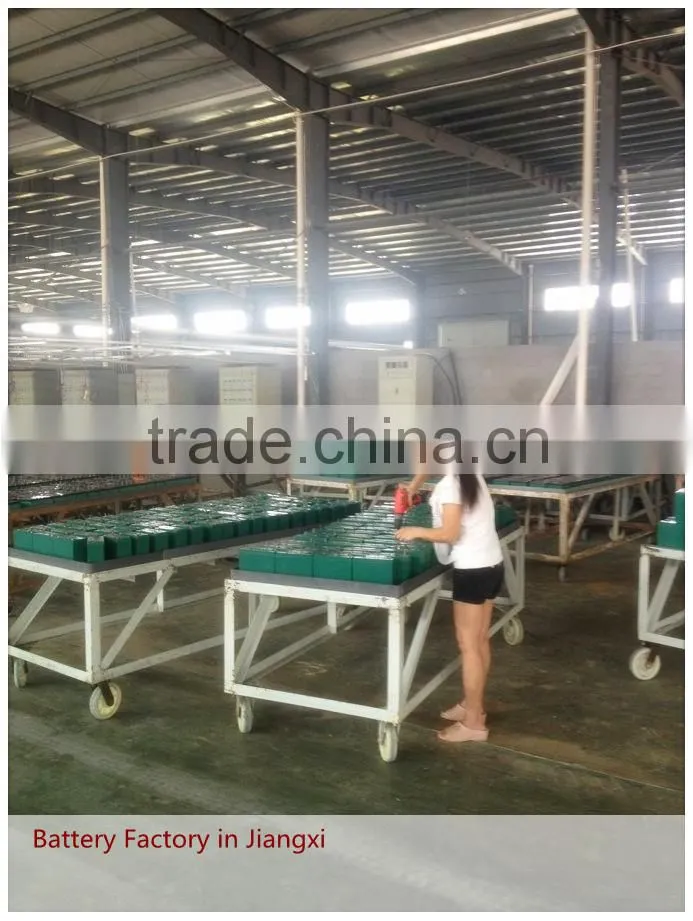

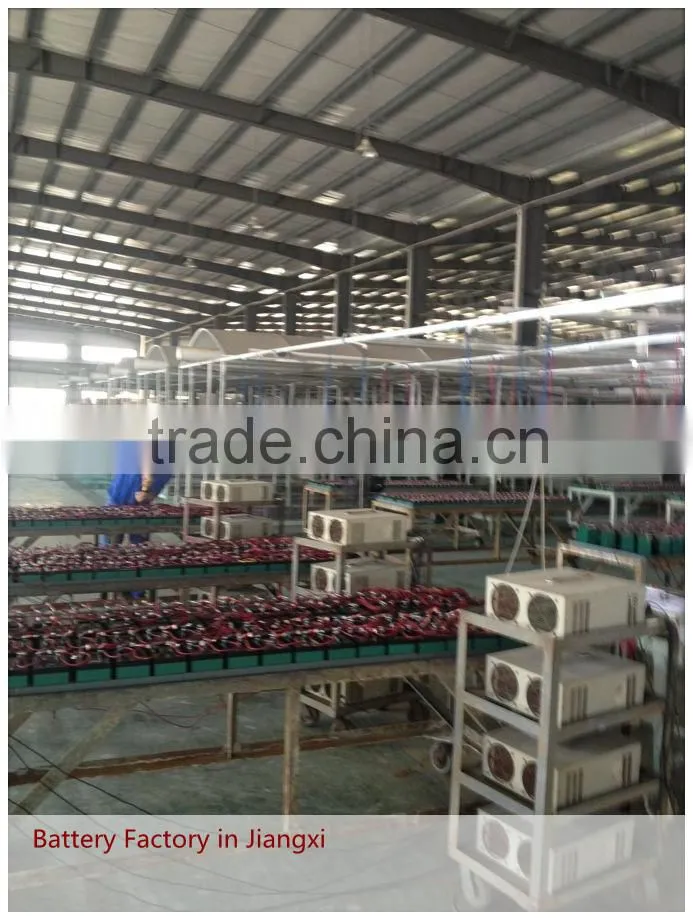

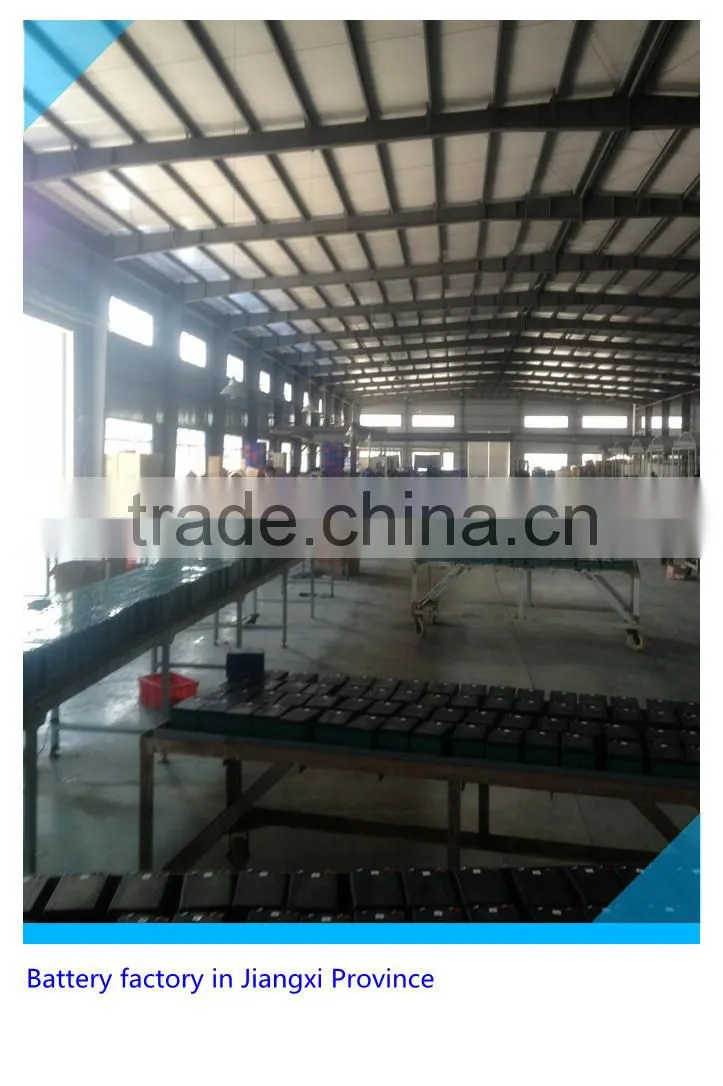

Factory Show:
