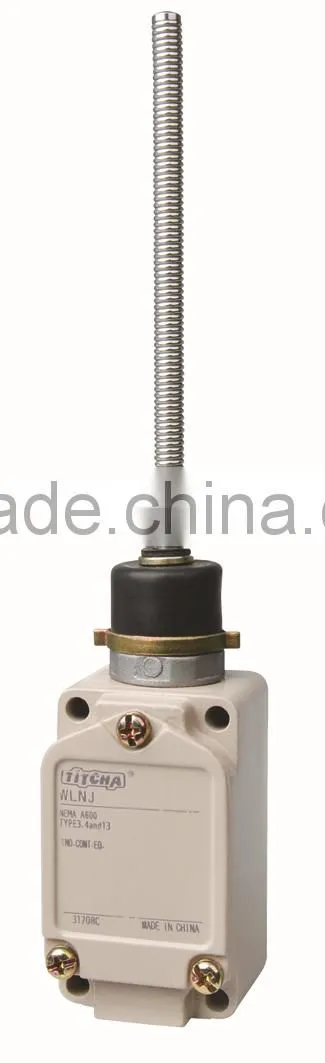

WL-NJ dc Switch /MICRO SWITCH / Limit Switch

WL-NJ dc Switch /MICRO SWITCH / Limit Switch thumbnail-1
WL-NJ dc Switch /MICRO SWITCH / Limit Switch photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Titcha
Model Number:
WL-NJ
Contact Supplier Request Quote Chat Now
Wenzhou Giant Electrical Appliances Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Titcha
Model Number WL-NJ
Protection Level IP67
Operating Temperature - 20 to 60 ℃



   WL-NJ dc switch /MICRO SWITCH /  Limit Switch

High mechanical strength

Strong aluminum cast outer shell

Structure preventing oil, water and pressure
Double-circuit type of limit switch, is widely used
Various of actuators is taken convenience for using
Built-in contact stand has double-spring, so it has long mechanical life

Indicating plate with setting position is installed in it, so it is easy to maintain



Product Description

 ---Technical Parameter ---



Rated working current

15A 500V,250VAC; 50/60Hz

Contact type

Contact resistance

(initial value )

Under 15 mΩ (no include copper resistance )

Contact material

Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize

Electrical

Insulation resistance

 (initial value)

100 mΩ min. (use the DC500V insulation resistance test)

Dielectric strength

Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min

Between non voltage metal parts and each terminal: 2000V 50/60HZ for 1min

Between ground and each terminal:  2000V 50HZ for 1 min

Mechanical

Shock resistance

In the free position

Less than 98m/s2(10G)

In the full operating position

Less than 294m./s2(30G)

Vibration resistance

1.5mm double amplitude  10-55HZ

Expected Life

Mechanical

10,000,000 operations min. (on/off frequency 120 operations/min)

Electrical

300,000 operations min. (rated load ), electromagnetism contactor FC-100(AC200V) load ; 5,000,000 operations min.

Using condition

Ambient temperature /Ambient humidity

-20~+60

  95%RH max. (at +5~20)

The max on/off frequency

120 operations/min



  Model   WL-D
 OF (Max.)   150g
 RF (Min.)   -
 PT (Max.)   28mm
 OT (Min.)    -
 MD (Max.)   -
 TF (Max.)    -
 TT (Min.)   -

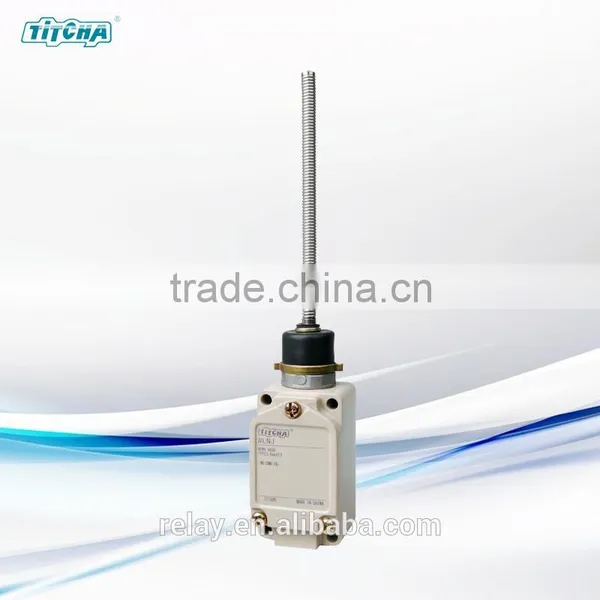

--- Photo show ---



WL-NJ dc switch /MICRO SWITCH / Limit Switch



Our Services

  • Answer any questions about our products online

  • Send you samples if you are interested in our products

  • Modify the products as your requirements if possible

About Us



WL-NJ dc switch /MICRO SWITCH / Limit Switch

WL-NJ dc switch /MICRO SWITCH / Limit Switch
