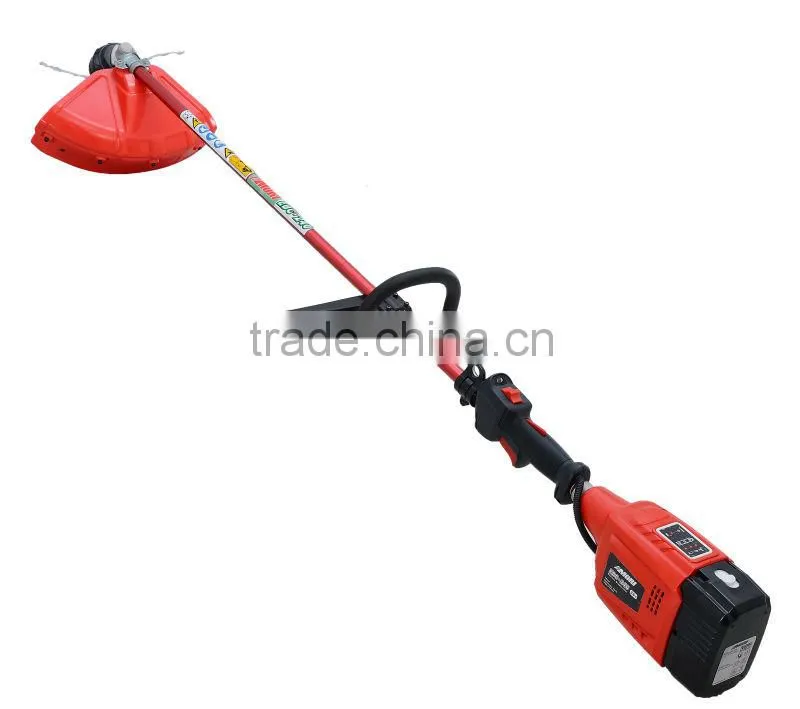

2013 Innovation Design Electric Brush Cutter

2013 Innovation Design Electric Brush Cutter photo-1
2013 Innovation Design Electric Brush Cutter photo-2

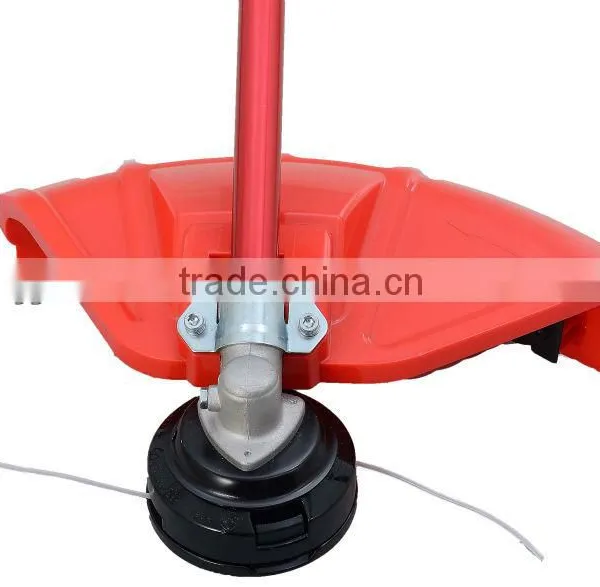

2013 Innovation Design Electric Brush Cutter photo-3

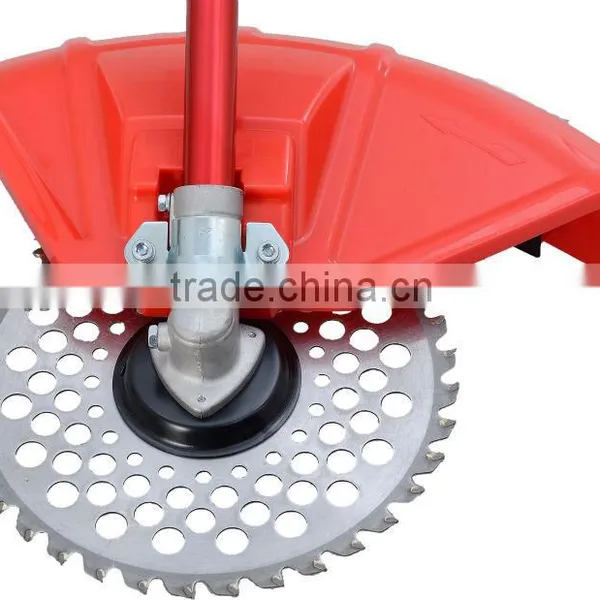

2013 Innovation Design Electric Brush Cutter photo-4
2013 Innovation Design Electric Brush Cutter photo-5

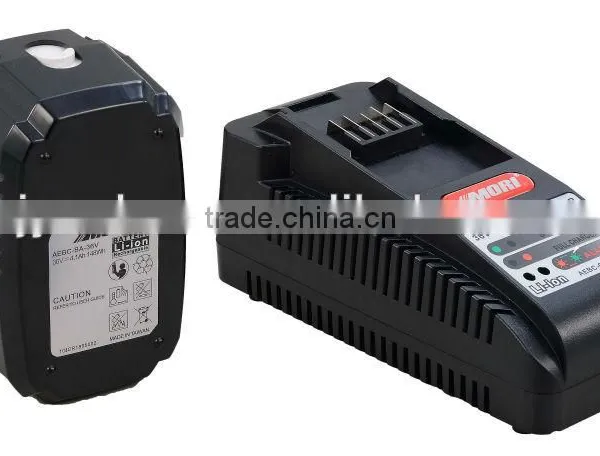

2013 Innovation Design Electric Brush Cutter photo-6
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
MORI
Model Number:
EBC-240_1
Payment & Shipping
Payment Methods:
Port of Shipment:
TAICHUNG PORT
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name MORI
Model Number EBC-240_1
Power Type Electricity
Cutting Type Straight Metal Blade
Feature Cordless, Folding Handle, Forced Air Cooling, Height Adjustable Handles
Certification CE

Specifications

Electric brush cutter, echo deisgn
36V, 4.1Ah Li-lon battery
Dia. 24mm alum main pipe
TUV & PSE are under application

2013 Innovation Design Electric Brush Cutter 2013 Innovation Design Electric Brush Cutter

2013 Innovation Design Electric Brush Cutter







2013 Innovation Design Electric Brush Cutter

Features
MORI EBC-240 shoulder type of brush cutter are

* MORI EBC-240 shoulder type of brush cutter are
* powered by 36V/4.1Ah Li-Ion battery
* LED Warning lamp for battery/motor protection system.
* indication lamp for battery.
* when battery power has been completely used up; the battery protection circuit will automatically shut off the power supply to the motor.
* trigger switch with variable speed control and lock-off button.
* grass clipping removal function.
* equipped with reverse switch for easy removal of grass clippings.
* with battery guard.
* with electric Brake.
* with auto power-off function
* with battery power switch
* with LED remaining power light
* 3 Protections - current, temperature, low voltage
* 3 minutes time out function
* reliable quality with dia. 24mm aluminum main pipe which meet JIS H4080 8601
* with 7mm solid steel driving shaft of brush cutter
* durable clutch assembly & gear case
* qualified safety guard to protect operator
* with various type of harness & " quick release device " , RE-220



nylon head (BL-092) Value for equivalent vibration total value  Right hand:1.1 m/s2 Uncertainty: 1.5 m/s2
Left hand:1.2 m/s2
3T blade (BL-255) Value for equivalent vibration total value Right hand:1.0 m/s2
Left hand:1.2 m/s2
nylon head (BL-092) Equivalent A-weighted sound pressure level: 87dB (A).
A-weighted sound power level: 94 dB (A).
3T blade (BL-255) Equivalent A-weighted sound pressure level: 87dB (A).
A-weighted sound power level: 92 dB (A).



Engine Specification
Model EBC-240
Battery 36V, Lithium-Ion
Battery capacity 4.1Ah
Charging time 90 minutes
Operating time 3T metal blade – 70 minutes nylon head – 40 minutes
Cutting capacity 3T metal blade – 255mm nylon head – 300mm
Max. Speed 3T metal blade – 6,300 rpm. nylon head – 6,000 rpm.
Packing Weight 6.7 ~ 7.2 kg
L x H x W 1820mm X 230mm X 170mm
Safety/Quality Approvals
ISO 9001:2008
SGS, TUV, CE, PSE
