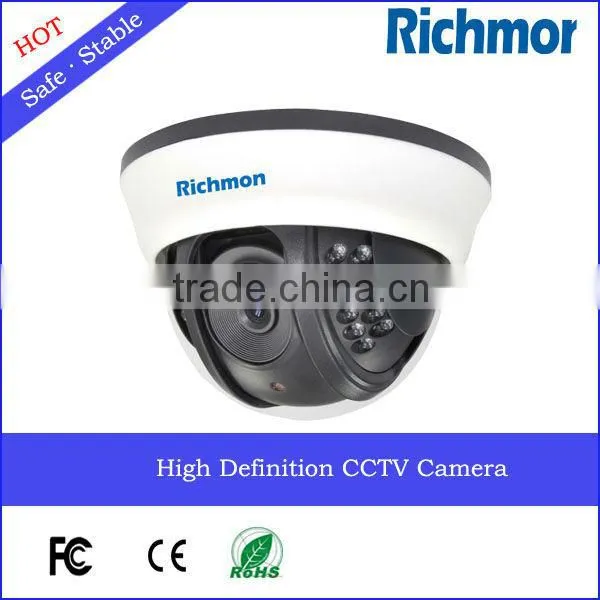

Hot Sale RCM-D318ASIR3 IR Dome Camera

Name: Hot Sale RCM-D318ASIR3 IR Dome Camera
Brand: Richmor
SKU: 107487449
Availability: InStock

US$ 35 - 37 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Richmor

Model Number:

RCM-D318ASIR3

Shenzhen Richmor Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Richmor

Model Number RCM-D318ASIR3

Type Analog Camera

Style Dome Camera

Sensor Other, CCD, CCD sensor

Technology Other, mini

Special Features Other, plastic

Specifications

SONY/SHARP CCD (optional)
420TVL-650VL (definition are optional)
Optically controlled design
High-efficient IR tube
Auto AGC

1.SONY/SHARP CCD (optional)

2.420TVL-650VL (definition are optional)

3.Optically controlled design; auto exposure to control on/off switch of IR led

4.High-efficient IR tube

5.Auto AGC; auto white balance; BLC

6.IR distance 10/20M

7.Standard fixed lens: 3.6mm

CCD sensor	1/3"SONY CCD	1/3"SONY CCD	1/3"SONY CCD	1/3"SONY CCD	1/4"SHARP CCD
pixel (H×V)	PAL:795×596 NTSC:811×508	PAL:752×582 NTSC:768×494	PAL:752×582 NTSC:720×480	PAL:500×582 NTSC:510×492
horizontal resolution	650TVL	540TVL	480TVL	420TVL	420TVL
signal system	PAL / NTSC
horizontal synchronous frequency	PAL:15.625KHZ / NTSC:15.734KHZ
clock frequency MHZ	PAL:19.3125 / NISC:19.0699
scanning system	2:1 interlaced scanning
lowest illumination	0LUX(IR led open)
method of synchronization	internal synchronization
S/N	48 dB
electronic shutter	PAL:1/50-1/100,000sec;NTSC:1/60-1/100,000
Gamma characteristics	0.45
video output	1 Vpp,75 Ohms
AGC	automatic
power supply	12V DC (+/-10%)
electricity current	300mA
working temperature	-10-45°C
