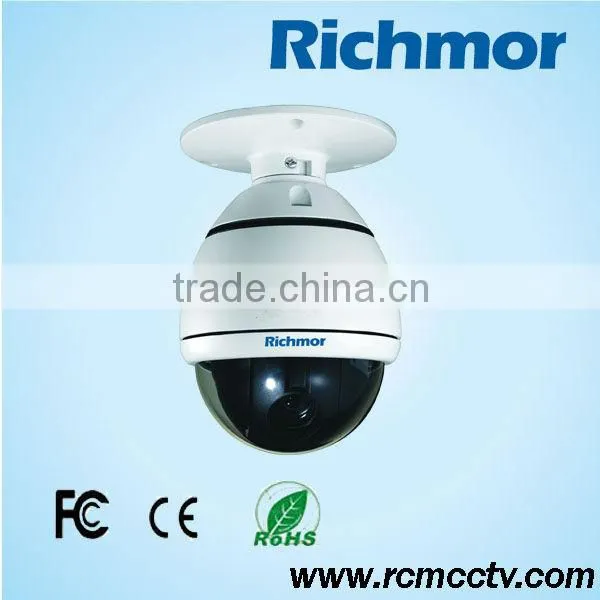

OEM Custom-design Auto Track High Speed Dome Camera for Car MDVR Quality Choice

OEM Custom-design Auto Track High Speed Dome Camera for Car MDVR Quality Choice thumbnail-1
OEM Custom-design Auto Track High Speed Dome Camera for Car MDVR Quality Choice photo-1
US$ 100 - 400 MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Richmor
Model Number:
RCM-6089A
Contact Supplier Request Quote Chat Now
Shenzhen Richmor Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Richmor
Model Number RCM-6089A
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

mini speed dome camera

  1. 8” metal shield; IP66 waterproof grade
  2. Chinese / English OSD menu; support multinational languages
  3. Unique IR led control technology: PWM control
  4. IR effective distance: 140M (long distance led on)
  5. Third generation “dot matrix" component, high energy and low consumption
  6. Firm aluminum structure; high cooling efficiency
  7. Motion detection alarm function; 4 in / 2 out action with alarm
  8. Video analysis function; 8 scenes, every scene can set 4 detection zone
  9. Built-in high precise RTC clock; support 8 timing missions
  10. Built-in surge and lighting protection device, can effectively prevent 3000V instantaneous current
  11. Far / passing beam multiple switches can be set; switching interval 9 levels light compensation; uniform optical field distribution; no “flashlight phenomenon.
  12. Intelligent control; power output: 5 levels are adjustable; open illumination is adjustable (1-15 levels), can meet the requirement of monitoring target for different distance and brightness
  13. Automatic dimming technology; under the tracking condition, can increase the power of target discovery to the most highest to guarantee the best effect. When under the normal condition, it will turn to standby status.
  14. Standby function; power (9 levels)/ standby time can be set (15-30 sec);humanism design; lifespan is 3 times than that before
  15. Automatic tracking function: effectively monitor the motion target and enlarge the target in the default scene,
  16. 3D positioning function (click enlargement), can realize screen coordinate-positioning and partial enlargement by the software.
  17. Watching mode function; dome camera has no action (15-60 minutes can be set)
  18. Start presetting (360º scanning / 2 spot scanning / presetting bit cruising groups 1 / presetting 1-8 etc.)running



 Parameter

Communication protocols

Automatic identification (PELCO_D/P)

Communication baud rate

1200bps/2400bps/4800bps/9600bps(Soft-Moods)

Dome address

Hard address: 1~255 soft address: 00~255(when in 00, hard address is effective)

Horizontal rotation speed

0.02 ~200º/s(1 ~ 64 levels variable speed)

Vertical rotation speed

0.02 ~90º/s(1 ~ 64 levels variable speed)

Rotation range

Horizontal 360º,vertical 93º

Automatic rotation function

Two levels segmentation control(first level horizontal 180º, secondary level vertical 90º)

360°cruising speed

1 ~ 9 levels variable speed

A-B 2 spot scan position

Can set arbitrarily

A-B 2 spot scan speed

1 ~ 9 levels variable speed

Presetting bit dwell time

5 ~ 60 sec(editable)

Presetting bit running speed

200º sec

Presetting bit quantity

220

Cruising groups quantity

4 groups (16 spot independent editable dwell and dwell time)

Support all-in-one machine

Automatic identification (SONY,Hitachi,Samsung,LG,CNB,made in China;

IR leds

6pcs far led, diameter:20,4pce close led, diameter:16,PWM control

Power supply

AC/DC self-adaption(15V ~ 28V), standard configuration: C24V3A power supply

Power up mode

Outage memory / 360º scanning / 2 spot scanning / presetting bit cruising groups 1 / presetting bit 1-8

Environment temperature

Indoor (0ºC~+40ºC) outdoor (-40°C~+60°C)

Power consumption

≤20W

Figure scanning

4 pcs route,every route can record 512 pcs commands or 15 minutes’ operation

Fan and heater

Automatic temperature control (below 5°open heater,above 40°open fan)
