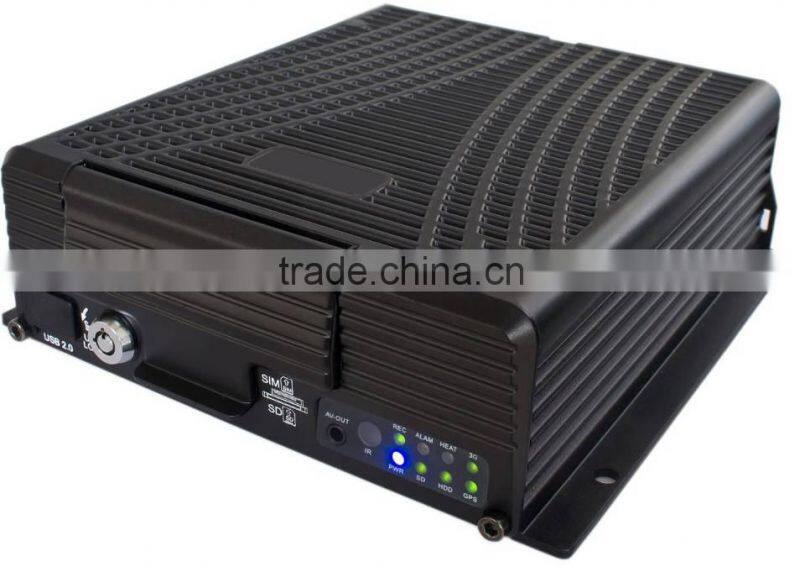

Transportation PAL / NTSC 4G HDD Car 8CH MDVR with Digital Alarm,Mobile DVR
Our views:
HDD MDVR uses a high-speed processor, an embedded Linux platform, and the most advanced technology in the IT field, such as H.264 Video Compression/Decompression, 3G/4G network transmission technology and GPS positioning technologies. MDVR can realize four/eight channel video recording.
Each channel supports CIF, HD1 and D1 image solution. Drivers' driving information, GPS data and alarm data are recorded in Hard disk which is used as the storage medium. The MDVR may look simple in its exterior design, provides powerful auto black box features, installation flexibility and high reliability.
Transportation PAL / NTSC 4G HDD Car 8CH MDVR with Digital Alarm,Mobile DVR
MDVR 8Ch's Features:
- 8CH Video & Audio recording and playback;
- 4CH D1+4CH CIF;8CH CIF etc Optional;
- Max 2.5" 1TB HDD & 64GB SD Card Same time, Support SSD storage;
- 3G Network, HSUPA/HSDPA/WCDMA/EVDO Optional;
- 3G/GPS/WIFI/G-sensor Optional;
- USB2.0 Interface to export record file;
- 8CH Alarm input, 2CH Alarm Output;
- 3 RS485 Interface,1 RS232 Interface;
- 8-36V Power supply;
- Working Temperature : -45 degree ~ +85 degree Vehicle Blackbox DVR
Items |
Parameters |
Specifications |
|
System |
Language |
English |
Operation Menu |
OSD menu |
|
Password |
Users Password/ Administrator Password |
|
|
Video |
Video input |
8-CH video input 1.0Vp-p,75Ω |
Video output |
1-CH composite video output 1.0Vp-p,75Ω 1 VGA output |
|
Video Display |
1 channel or synchronous 8channels |
|
Video Singal |
PAL/NTSC |
|
Video Compression |
H.264 Main profile |
|
Audio |
Audio input & Output |
4-ch Audio input; 1-ch Audio Output |
Recording mode |
Audio & Video sync Recording |
|
|
Image Processing & Storage
|
Image Resolution |
4 D1 , 4 HD1, 4 CIF options |
Audio Compression |
ADPCM, G.726, G.711 Options |
|
Audio Bit rate |
8KB/s |
|
Storage |
Support SD Card and HDD |
|
Alarm |
Alarm input |
8 digital level inputs |
Alarm output |
2 digital level outputs |
|
Extended interface |
Support connecting LCD control panel via extended interface |
|
3G |
HSUPA/HSDPA/WCDMA/EVDO Optional |
|
GPS |
Built-in GPS module |
|
MDVR 8Ch'S Applications:
MDVR 8Ch's Cases
Certification:
Package
Our Exhibition:
