Richmor h.264 8ch hi-tech cctv dvr 3G 4G GPS WIFI
Mobile DVR Manufacturer with OEM/ODM Service

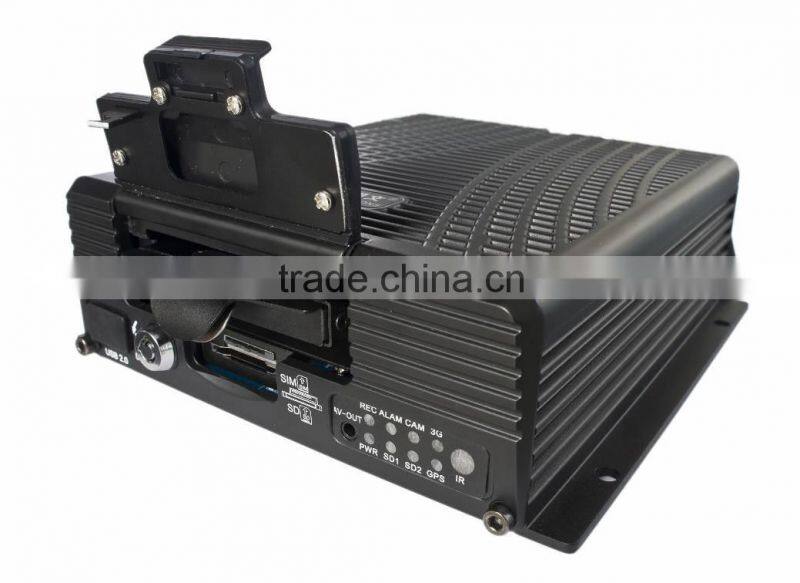

8 Channel Car Mobile DVR Recorder Picture
8 Channel Car Mobile DVR Recorder Features:
- 8CH Video & Audio recording and playback;
- 4CH D1+4CH CIF;8CH CIF etc Optional;
- Max 2.5" 1TB HDD & 64GB SD Card Same time, Support SSD storage;
- 3G Network, HSUPA/HSDPA/WCDMA/EVDO Optional;
- 3G/GPS/WIFI/G-sensor Optional;
- USB2.0 Interface to export record file;
- 8CH Alarm input, 2CH Alarm Output;
- 3 RS485 Interface,1 RS232 Interface;
- 8-36V Power supply;
- Working Temperature : -45 degree ~ +85 degree Vehicle Blackbox DVR
Items |
Parameters |
Specifications |
|
System |
Language |
English/Chinese/Customized |
Operation Menu |
Graphical User interface(OSD menu) |
|
Password |
Users Password/ Administrator Password |
|
|
Video |
Video input |
8-CH video input 1.0Vp-p,75Ω |
Video output |
1-CH composite video output 1.0Vp-p,75Ω 1 VGA output |
|
Video Display |
1 channel or synchronous 8channels |
|
Video Singal |
PAL,NTSC |
|
Video Compression |
H.264 Main profile PAL:100fps at D1, NTSC: 120fps at D1 |
|
Audio |
Audio input |
4-ch Audio input |
Audio output |
1-ch Audio output |
|
Recording mode |
Audio & Video sync Recording |
|
|
Image Processing & Storage
|
Image Resolution |
4 D1 , 4 HD1, 4 CIF options |
Video Compression |
H.264 Main profile |
|
Video bit rate |
CIF: 1536Kbps ~ 128Kbps,8 levels optional. Highest: 0 level Lowest: 8 level HD1: 2048Kbps ~ 512Kbps,4 levels optional. Highest: 0 level Lowest: 8 level D1: 4Mbps ~ 1Mbps, 4 levels optional. Highest: 0 level Lowest: 8 level |
|
Audio Compression |
ADPCM, G.726, G.711 Options |
|
Audio Bit rate |
8KB/s |
|
Storage |
Support One HDD Max 1TB Support One SD Card Backup when HDD is error. Support Mirror Recording with a expand HDD |
|
Alarm |
Alarm input |
8 digital level inputs,below 4V is low level alarm,above 4V are high level alarm |
Alarm output |
2 digital level outputs,output voltage level:12V |
|
Communication Interface |
RS485 Interface |
Support 2-RS485 interface |
RS232 Interface |
Support 1-RS232 interface |
|
WIFI Interface |
Support 802.11b/g/n |
|
3G |
HSUPA/HSDPA/WCDMA/EVDO Optional |
|
GPS |
Built-in GPS module, Geographic coordinates , speed can be recorded in hard disk and also can be transmitted to CMS. |
|
Software |
Playback |
Playback Software is used to playback video file, GPS track, G-sensor, and alarm information. |
CMS |

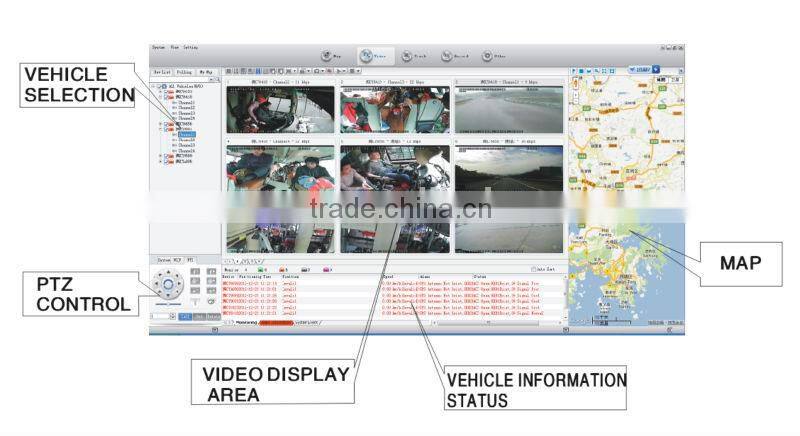

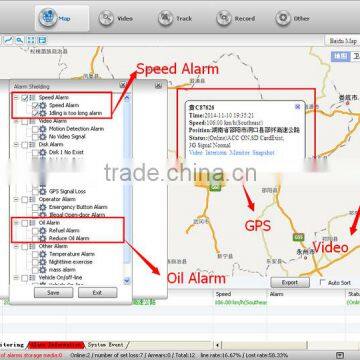

Center vehicle management software platform, it can manage 20000 devices at same time, if need to manager more units, add more servers to realize it. |
|

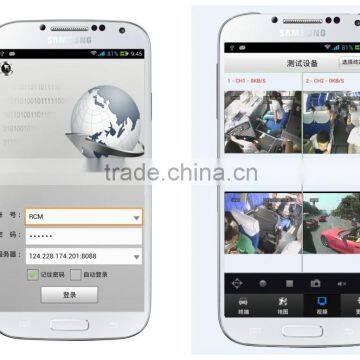

8CH Car Mobile DVR Recorder Powerful Software with IOS/Andorid APP Free to Customers

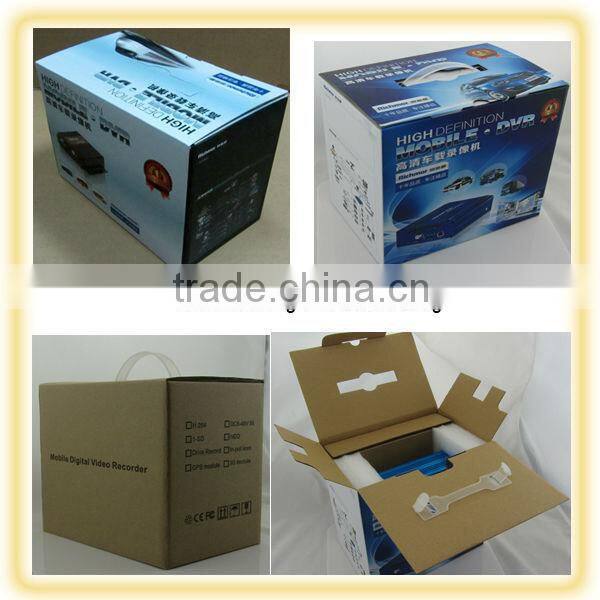

8CH Mobile DVR Packages ( Richmor Brand/Standard Netureal/Customized)
8CH Mobile DVR Shipping
Strong cooperated with DHL/UPS Etc for fast and safety delivery. Small order can be dispatched in 3-5 working days once check the payment
Payment
Flexible Payment upon your favorable,TT/Western Union/Paypal Optional
1.Well Trained Sales team and engineers for fast and professional supoprt
2.OEM/ODM Service
Once products were pushed on CPSE Fair/Mexico Security Fiar/Peru Security fair etc ,attraced muilt worldwide customers.
We,Shenzhen Richmor Technology Development Co.,Ltd,are a specialized manufacturer of Car Security products,including Mobile Car DVR,3G Mobile DVR,Portable DVR, Car Cameras etc

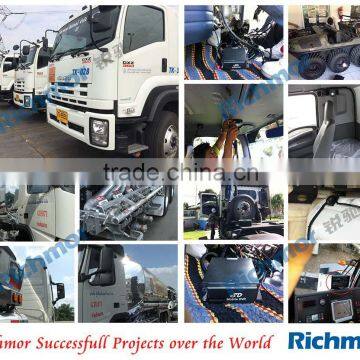

With Developer teams support, we have do customized Client Software/Player/Server etc for different customer,such as Brazil World Cup Project, Thailand Shell Group Project, Austrail Taxi Project, South Africa School Bus Project(Win Dahua)
We are looking forward to "win-win" Cooperation with you in near future.
