Newest 3G GPS Wifi Full HD 1080P 8 Channel Mobile Car Dvr Recorder

Newest 3G GPS Wifi Full HD 1080P 8 Channel Mobile Car Dvr Recorder thumbnail-1
Newest 3G GPS Wifi Full HD 1080P 8 Channel Mobile Car Dvr Recorder photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Richmor
Model Number:
RCM-MDR9808SWG
Contact Supplier Request Quote Chat Now
Shenzhen Richmor Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Richmor
Model Number RCM-MDR9808SWG

 Newest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorder

Model: RCM-MDR9808SWG

Main Function:

1. 8CH Hard Disk Mobile DVR

2. 3G GPS WIFI optional

3. PTZ control Support

4. Fuel sensor Support

5. 2.5inch Hard Disk 1T Support

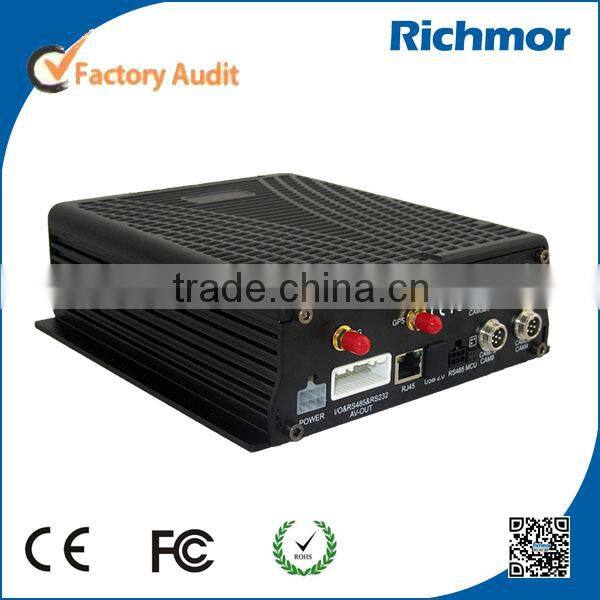

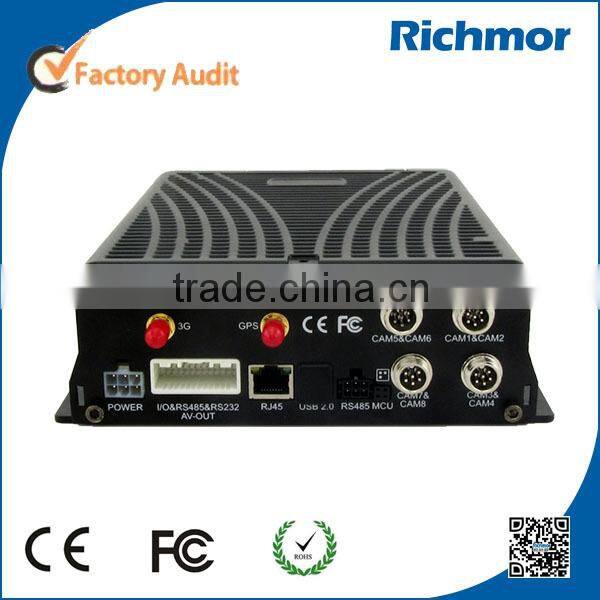

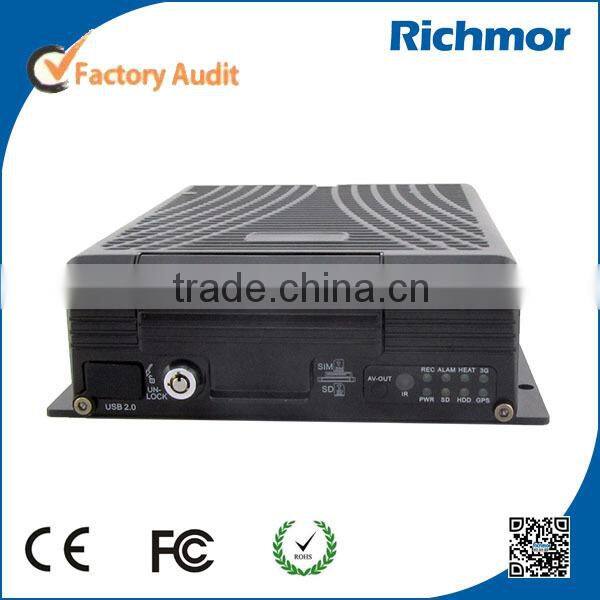

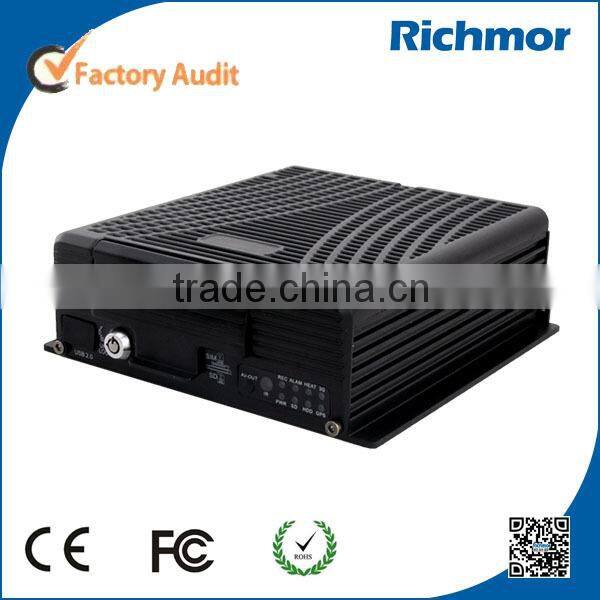

Product Pictures:

Newest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorderNewest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorderNewest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorderNewest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorder



Specification:

* Standard H.264 video compression, supports dual stream network transmission
* Supports pentaplex operation: preview, record, playback, backup, network transmission
* Support max 1TB 2.5 inch HDD

* Support max 64GB SD card
* Support alarm pre-recording & motion detection
* Supports real-time remote view through 3G WIFI

* GPS information embedded in stream, support electronics fence and historical track playback
* Supports time-lapse recording after the car is powered off
* Supports recording and displaying the license plate number
* Supports HDD overwritten by days
* With digital zoom capabilities when previewing the video
* With password protection function
* Supports PTZ control
* Supports transmitting audio via network
* Supports backup and upgrade with SD card & HDD
* Stable aluminum alloy structure with shock absorber
* Self recovery after power reconnected

Parameters:

Items

Device parameters

Performance index

Name

Product Name

8 Channel Mobile DVR(HDD & SD Storage)

System

Operation System

Linux

Operation Interface

Graphical Interfaces, Chinese/English optional

File System

Proprietary Format

System Privileges

User Password

Video

Video Input

8ch SDI Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras

Video Output

1Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal

Video Display

1 Or 4 Screen Display

Video Standard

PAL:25frames/Sec;NTSC:30frames/Sec

System Resources

PAL:100 Frames; NTSC:120 Frames

Audio

Audio Input

Four Channels Independent Input  500Ω

Audio Output

1 Channel(4 Channels Can Be Convert Freely)

Basic Output  Level

1.0—2.2V

Distortion Plus Noise

≤-30dB

Recording Mode

Sound And Image Synchronization

Audio Compression

ADPCM

Alarm

Alarm in

8 Channels Independent Input. High Voltage Trigger

Alarm out

2 Channels Independent output

Move Detect

available

Network

Interface

Wire line Access

3*RS485 port, 1*RS232 port

Wifi

Can Expand One Wifi Module Inside

3G

Can Expand One WCDMA or CDMA2000 Module Inside

GPS Interface

GPS

Can Expand GPS Module outside

USB Interface

USB 2.0

2* USB2.0 port

Extend Interface

Intercom

Can Expand Intercom Module Inside

G-Sensor

Can Expand G-Sensor Module Inside

Others

Power Consumption

DC8-36V  5%   ≤10W

Working Temperature

 -20℃ ~ +85℃  ≤80%

Clock

Built-In Clock, Calendar

Packaging

Product Size

240(L)*184(W)*62(H)mm

Product Net Weight

2.2KG(without HDD)













                                                                Our CMS software application:

Newest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorder

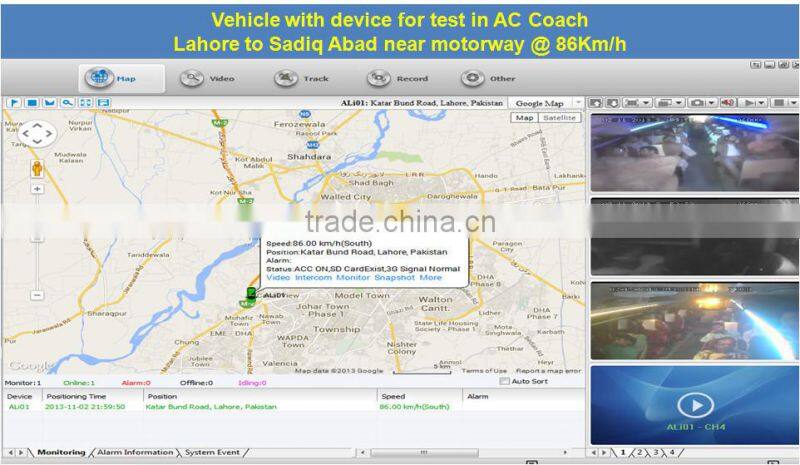

For Windows PC real-time Surveillance

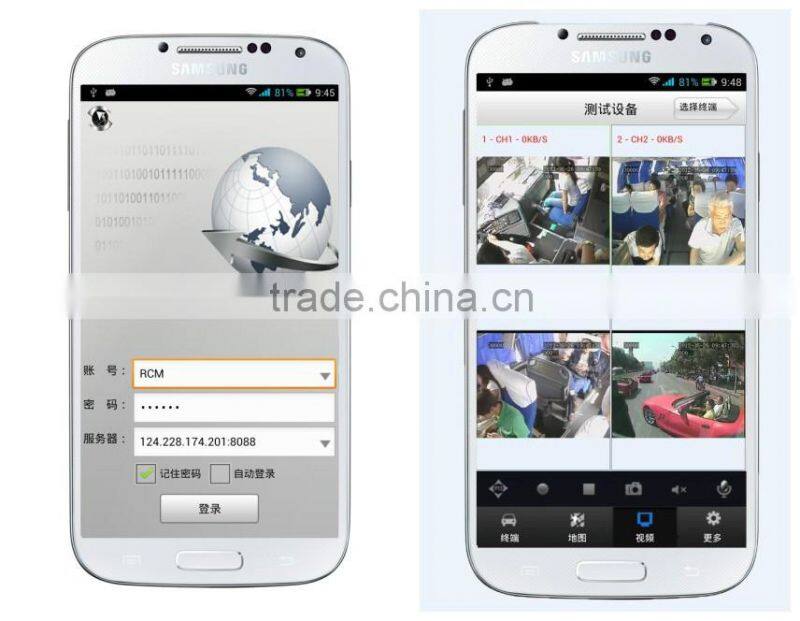

For IOS & Android OS Mobile Phone Surveillance

Newest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorder

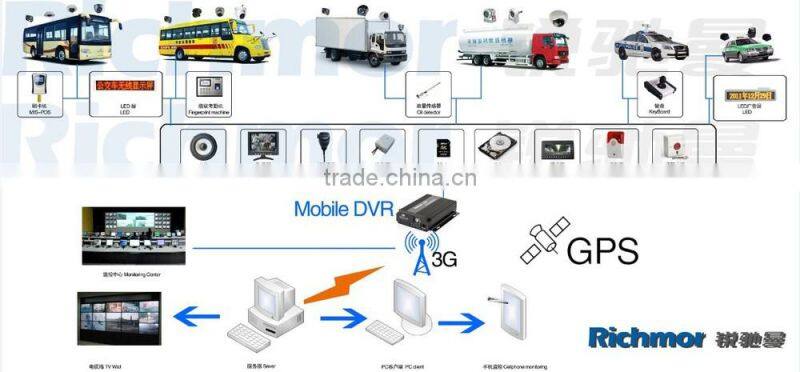

Our Mobile DVR project for vehicles

Newest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorder

 Newest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorder

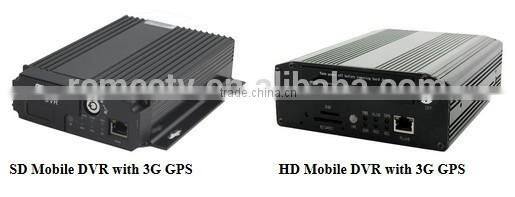

Related Products:

Newest 3G GPS Wifi Full HD 1080P 8 channel mobile car dvr recorder
Certification:





Cooperation Terms:

Payment terms:  T/T, Western Union, MoneyGram, Paypal

Delivery time:  Within 5 working days after confirm the payment.

Warranty:  12 months

Shipping way:  DHL, UPS, FedEx, EMS, TNT etc.

Packing ways:



After-sales Service:

1. After you receive our products, we will assist you to realize how to use it.



2. Offer you the software if you use our mobile DVR.



3. Twelve months warranty
4. During our warranty, if you have any problem, we can help you to solve it.



5. During our warranty, you can return to us to repair it.



Remark: All qualified returns/replacement must be guided by us, or won’t accept your return without informing us in advance.
